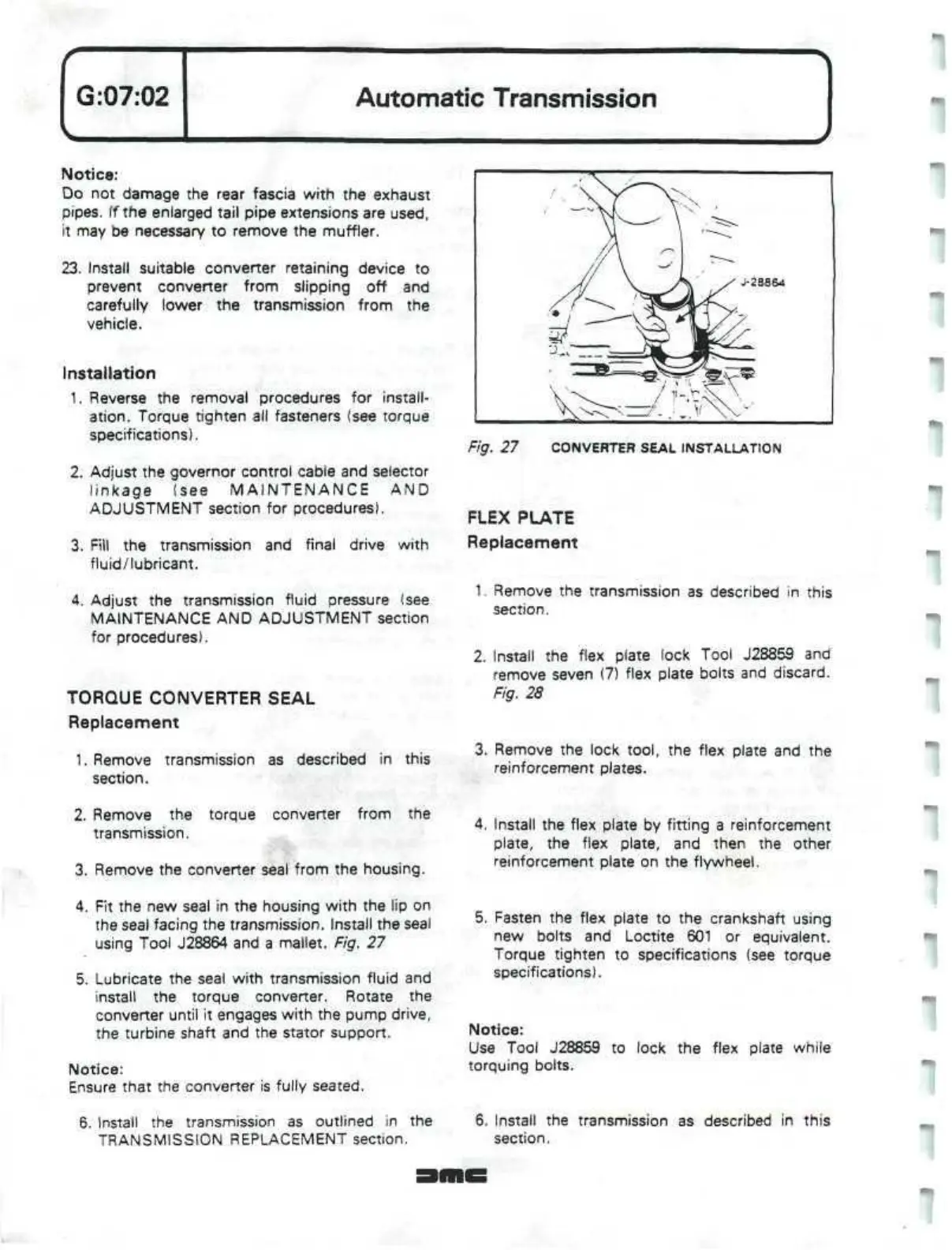

G:07:02
Automatic Transmission
Notice:
Do not damage the rear fascia with the exhaust
pipes.
<f the
enlarged tail pipe extensions are used,
it may be necessary to remove the muffler.
23.
Install suitable converter retaining device to
prevent converter from slipping off and
carefully lower the transmission from the
vehicle.
Installation
1.
Reverse the removal procedures for install-
ation.
Torque tighten all fasteners (see torque
specifications).
2.
Adjust the governor control cable and selector
linkage (see MAINTENANCE AND
ADJUSTMENT section for procedures).
3. Fill the transmission and final drive with
fluid/lubricant.
4.
Adjust the transmission fluid pressure (see
MAINTENANCE AND ADJUSTMENT section
for procedures).
TORQUE CONVERTER SEAL
Replacement
1.
Remove transmission as described in this
section.
2.
Remove the torque converter from the
transmission.
3. Remove the converter seal from the housing.
4.
Fit the new seal in the housing with the lip on
the seal facing the transmission. Install the seal
using Tool
J28864
and a mallet. Fig. 27
5. Lubricate the seal with transmission fluid and
install the torque converter. Rotate the
converter until it engages with the pump drive,
the turbine shaft and the stator support.
Notice:
Ensure that the converter is fully seated.
6.
Install
the transmission as outlined in the
TRANSMISSION REPLACEMENT section.
Fig.
27 CONVERTER SEAL INSTALLATION
FLEX PLATE
Replacement
1.
Remove the transmission as described in this
section.
2.
Install the flex plate lock Tool
J28859
and
remove seven (7) flex plate bolts and discard.
Fig. 28
3. Remove the lock
tool,
the flex plate and the
reinforcement plates.
4.
Install the flex plate by fitting a reinforcement
plate,
the flex plate, and then the other
reinforcement plate on the flywheel.
5. Fasten the flex plate to the crankshaft using
new bolts and Loctite 601 or equivalent.
Torque tighten to specifications (see torque
specifications).
Notice:
Use Tool J28859 to lock the flex plate while
torquing bolts.
6. Install the transmission as described in this
section.
