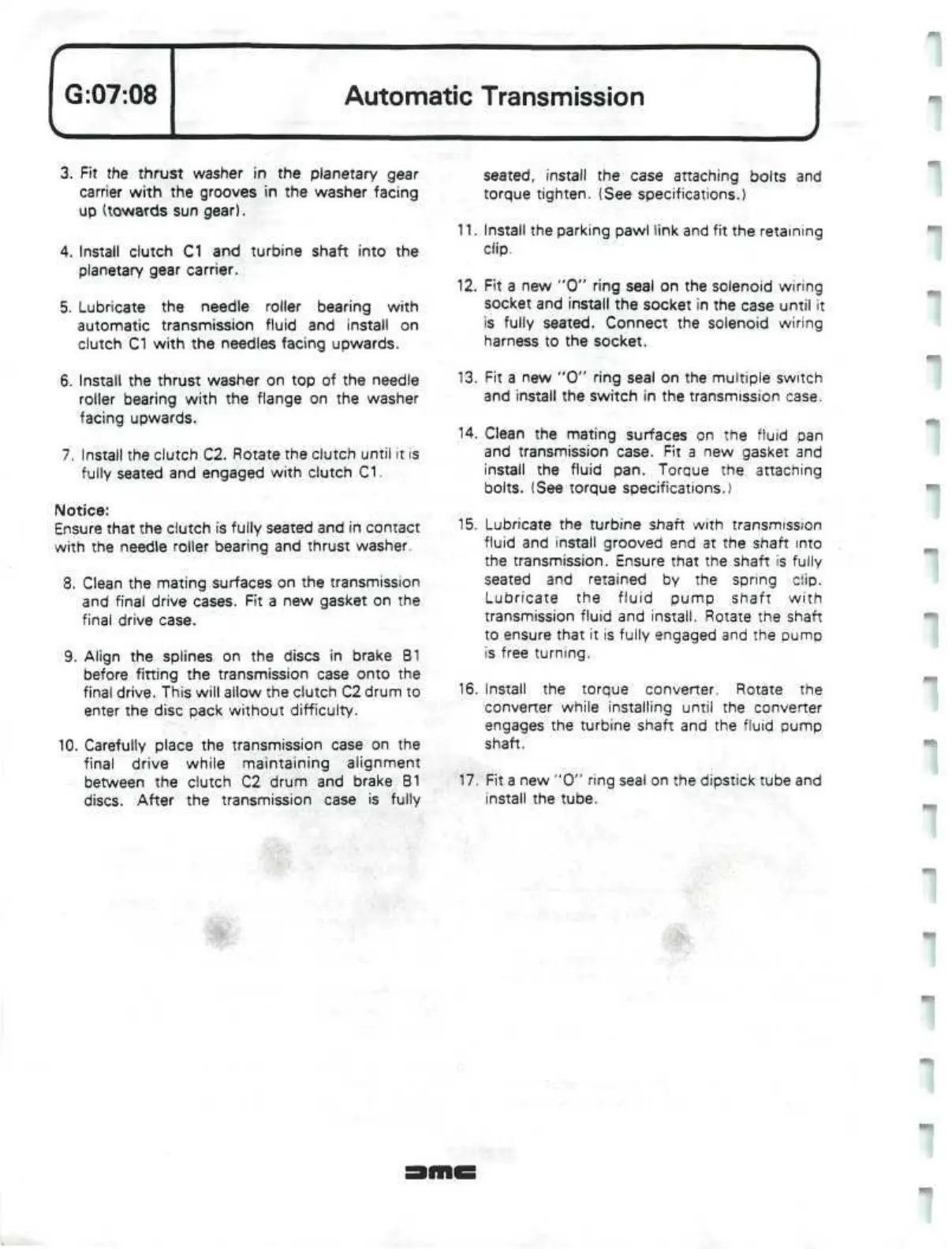

G:07:08
Automatic Transmission
3. Fit the thrust washer in the planetary gear
carrier with the grooves in the washer facing
up (towards sun gear).
4.
Install clutch C1 and turbine shaft into the
planetary gear carrier.
5. Lubricate the needle roller bearing with
automatic transmission fluid and install on
clutch C1 with the needles facing upwards.
6. Install the thrust washer on top of the needle
roller bearing with the flange on the washer
facing upwards.
7. Install the clutch C2. Rotate the clutch until it is
fully seated and engaged with clutch C1.
Notice:
Ensure that the clutch is fully seated and in contact
with the needle roller bearing and thrust washer.
8. Clean the mating surfaces on the transmission
and final drive cases. Fit a new gasket on the
final drive case.
9. Align the splines on the discs in brake B1
before fitting the transmission case onto the
final drive. This will allow the clutch C2 drum to
enter the disc pack without difficulty.
10.
Carefully place the transmission case on the
final drive while maintaining alignment
between the clutch C2 drum and brake B1
discs.
After the transmission case is fully
seated,
install the case attaching bolts and
torque tighten. (See specifications.)
11.
Install the parking pawl link and fit the retaining
clip.
12.
Fit a new "0" ring seal on the solenoid wiring
socket and install the socket in the case until it
is fully seated. Connect the solenoid wiring
harness to the socket.
13.
Fit a new "0" ring seal on the multiple switch
and install the switch in the transmission case.
14.
Clean the mating surfaces on the fluid pan
and transmission case. Fit a new gasket and
install the fluid pan. Torque the attaching
bolts.
(See torque specifications.)
15.
Lubricate the turbine shaft with transmission
fluid and install grooved end at the shaft
into
the transmission. Ensure that the shaft is fully
seated and retained by the spring clip.
Lubricate the fluid pump shaft with
transmission fluid and install. Rotate the shaft
to ensure that it is fully engaged and the pump
is free turning.
16.
Install the torque converter. Rotate the
converter while installing until the converter
engages the turbine shaft and the fluid pump
shaft.
17.
Fit a new "0" ring seal on the dipstick tube and
install the tube.
