Automatic Transmission
G:08:01
TRANSMISSION UNIT
TRANSMISSION UNIT DISASSEMBLY
AND REASSEMBLY
Notice:
The
transmission/final
drive unit separation
procedure must be performed before starting with
transmission disassembly.
SEE - ON CAR SERVICE - FOR DIS-
ASSEMBLY, INSPECTION AND ASSEMBLY
PROCEDURES FOR:
3 -Piston Seal (Square
Section/inner)
4 - Piston Seal (Square Section/Outer)
5 - Piston
6 -Return Springs
7 -Spring Retaining Plate
8 -Lock Ring
9 -Wave Disc
10 -Steel Discs (4)
11 -Lined Discs (3)
12 -B2 Operating Clearance Adjusting Shims
M
pT^I
• Manual control valve
• Pick up screen and gasket
• Valve body and gaskets
• Vacuum modulator
• Electric shift solenoids
• Fluid pump
TRANSMISSION COMPONENT
REPAIR
BRAKE B2
-
Fig. 43
1 - Piston Support Outer Seal
2 - Piston Support
Disassembly
1.
Remove the tension on the B-2 piston return
springs using the special tool (part of the A T
Tool Kit). Tighten the tool until the ring on the
tool bottoms against the piston Fig. 44.
Remove the lock ring securing the spring plate.
Notice:
Do not over-tighten the
tool.
When the ring on the
tool contacts the face of the piston, the coil
springs are fully compressed.

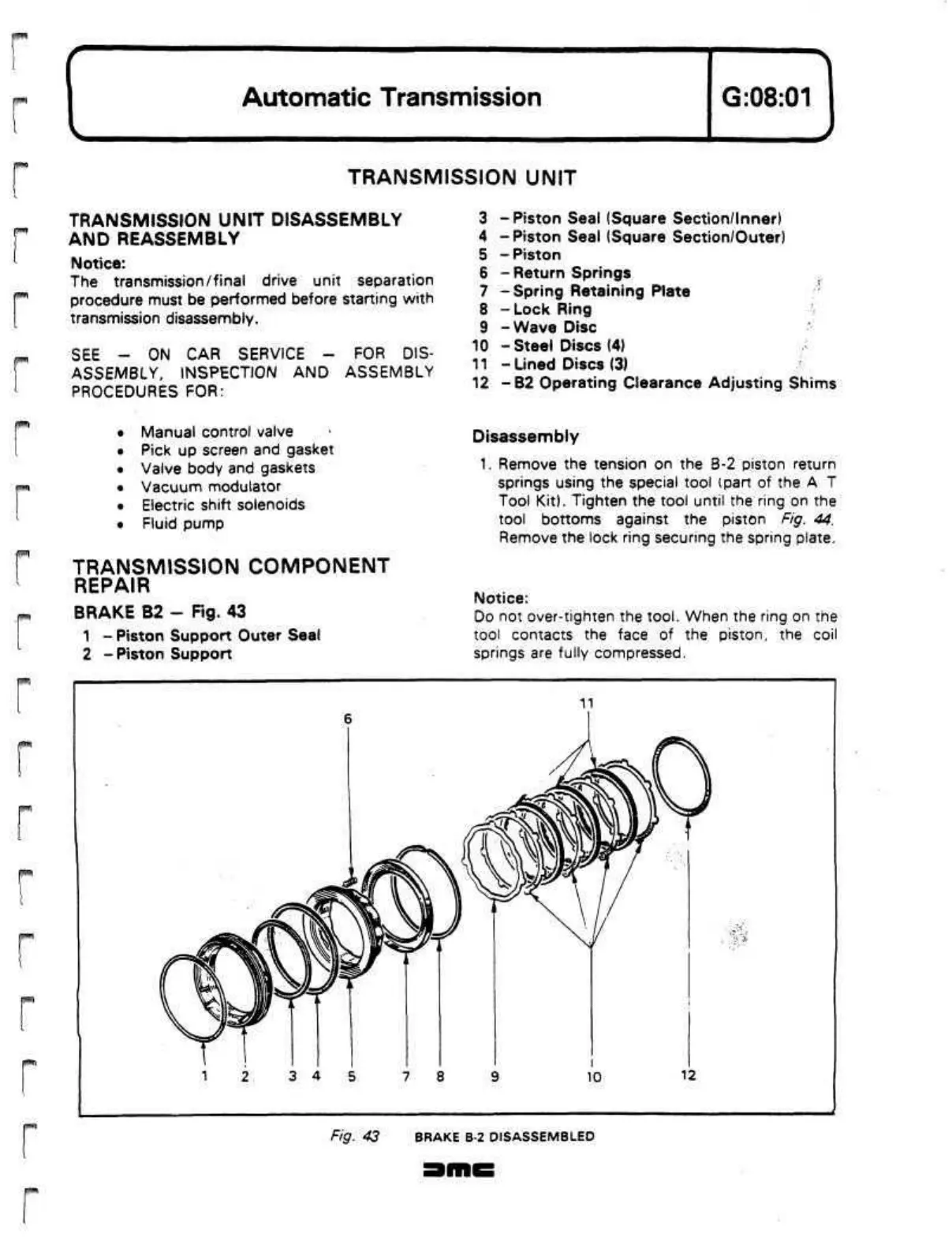

Fig. 43 BRAKE B-2 DISASSEMBLED
