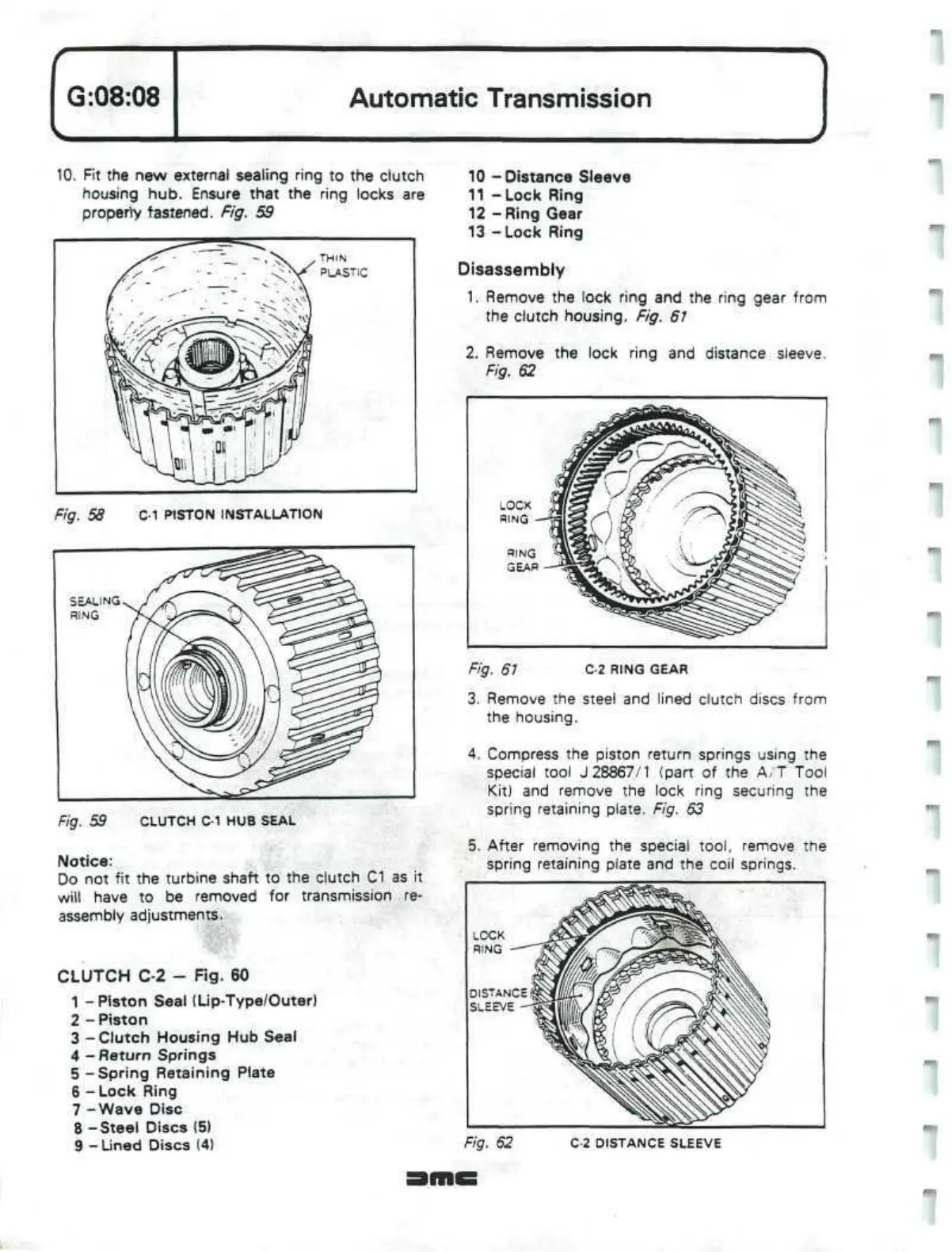

Delorean DMC - Page 204

G:08:08
Automatic Transmission
10. Fit the new external sealing ring to the clutch
housing hub. Ensure that the ring locks are
property fastened. Fig. 59
/Sf
/?-'
1
H^
W^
\\ lo^-i.
\V>w^
— ""* ' *^\. y
'.'••' :xv\
"" • • '-"' -<.^y\
t^s^^i
'j&Bufc&M
•j» ^l^yj^ ~S,5tt
bfr^ ~ ^*S<^/JAM
~^^\ T—- ^.^^^--^ sk \\
•*\ ~~-—Tl** \ , T"***.
\ "I*
1 B
"
' i
01
•Wml
^CrfC^T \ \\
*\' I if
%)r
, THIN
PLASTIC
F/'gr. 5? C-1 PISTON INSTALLATION
Fig. 59
CLUTCH C-1 HUB SEAL
Notice:
Do not fit the turbine shaft to the clutch C1 as it
will have to be removed for transmission re-
assembly adjustments.
CLUTCH C-2 - Fig. 60
1 -Piston Seal (Lip-Type/Outer)
2 - Piston
3 -Clutch Housing Hub Seal
4 - Return Springs
5 -Spring Retaining Plate
6 -Lock Ring
7 -Wave Disc
8 -Steel Discs (5)
9 -Lined Discs (4)
10 -Distance Sleeve
11 -Lock Ring
12 -Ring Gear
13 -Lock Ring
Disassembly
1. Remove the lock ring and the ring gear from
the clutch housing. Fig. 61
2. Remove the lock ring and distance sleeve.
Fig. 62
A
M
t*l&
LOCK $J|§f
RING —Hg s||
t|\«H
SING ^^
GEAR —*£&
%
'0&s
x» r 1
TvA
\ 1 TV
rl
S^xfe
3te\ >
*^S5«
wy
*tfS
^5s^l&^
y^~ 7 Ts^^S^S.
(fc^§^
Wj^^^^
"Tj^^^^^^^
Fig. 61
C-2 RING GEAR
3. Remove the steel and lined clutch discs from
the housing.
4. Compress the piston return springs using the
special tool J 28867/1 (part of the A/T Tool
Kit) and remove the lock ring securing the
spring retaining plate. Fig. 63
5. After removing the special tool, remove the
spring retaining plate and the coil springs.
Fig. 62 C-2 DISTANCE SLEEVE
