Automatic Transmission
~>v
G:08:09
*
r
r
r

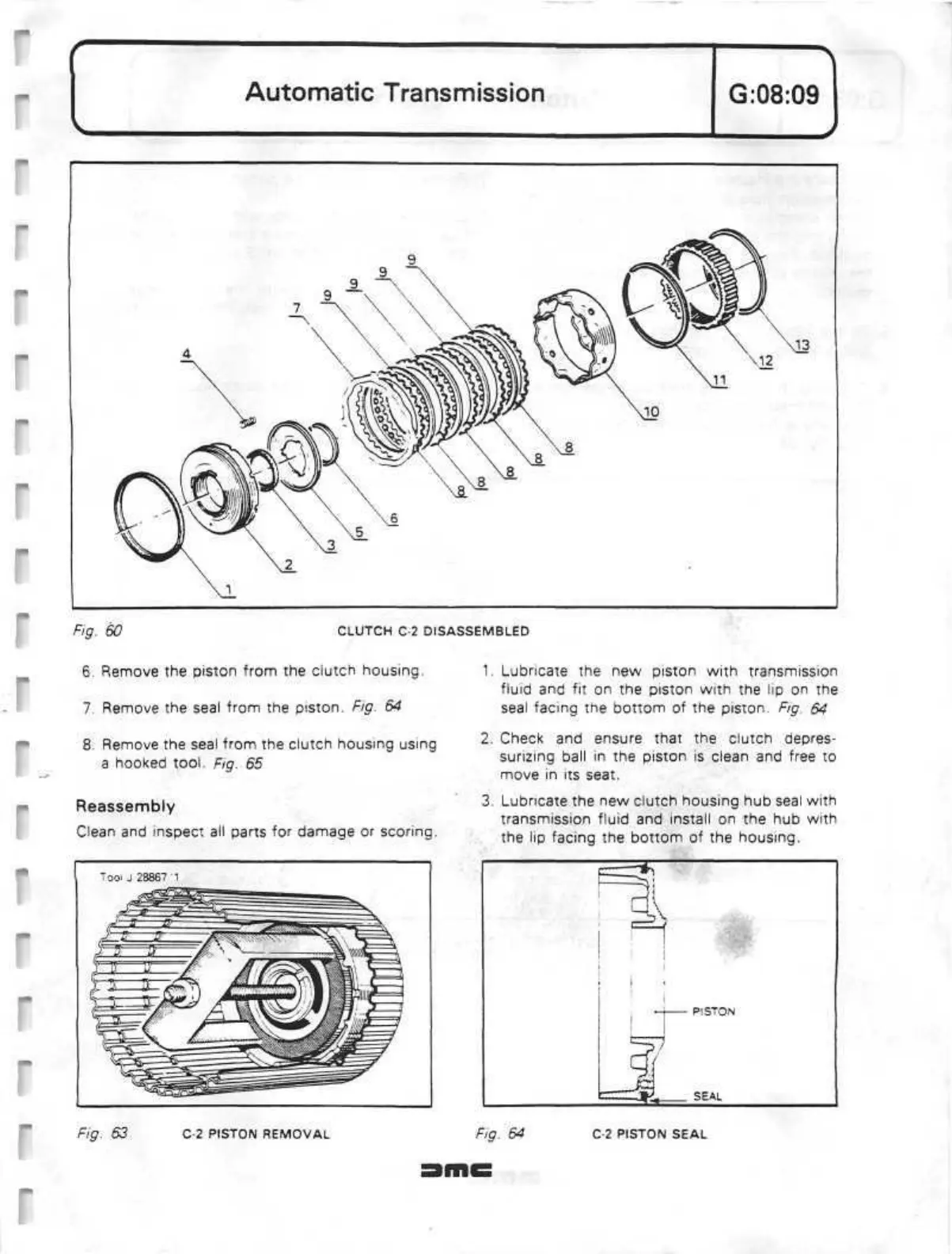

CLUTCH C-2 DISASSEMBLED
Fig. 60
6. Remove the piston from the clutch housing.
7 Remove the seal from the piston. Fig. 64
8. Remove the seal from the clutch housing using
a hooked
tool.
Fig. 65
Reassembly
Clean and inspect all parts for damage or scoring.
1.
Lubricate the new piston with transmission
fluid and fit on the piston with the lip on the
seal facing the bottom of the piston. Fig, 64
2. Check and ensure that the clutch depres-
surizing ball in the piston is clean and free to
move in its seat.
3. Lubricate the new clutch housing hub seal with
transmission fluid and install on the hub with
the lip facing the bottom of the housing.
r
ooi
J 28867
1
Fig. 63 C-2 PISTON REMOVAL
Fig. 64 C-2 PISTON SEAL
