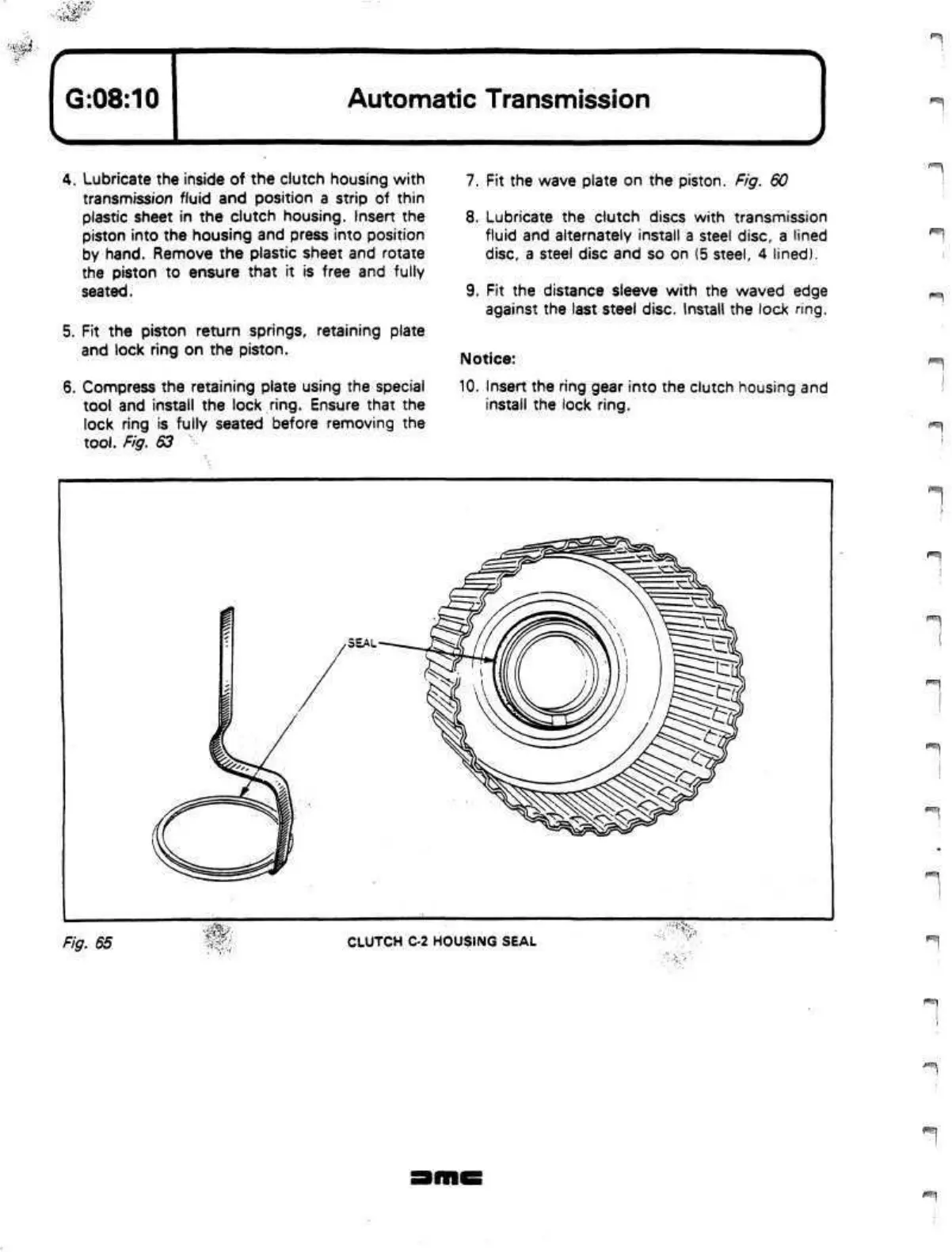

G:08:10
Automatic Transmission
4.
Lubricate the inside of the clutch housing with
transmission fluid and position a strip of thin
plastic sheet in the clutch housing. Insert the
piston into the housing and press into position
by hand. Remove the plastic sheet and rotate
the piston to ensure that it is free and fully
seated.
5. Fit the piston return springs, retaining plate
and lock ring on the piston.
6. Compress the retaining plate using the special
tool and install the lock
ring.
Ensure that the
lock ring is fully seated before removing the
tool.
Fig. 63
7. Fit the wave plate on the piston. Fig. 60
8. Lubricate the clutch discs with transmission
fluid and alternately install a steel disc, a lined
disc, a steel disc and so on (5 steel, 4 lined).
9. Fit the distance sleeve with the waved edge
against the last steel disc.
Install
the lock
ring.
Notice:
10.
Insert the ring gear into the clutch housing and
install the lock
ring.
Fig. 65
CLUTCH C-2 HOUSING SEAL
