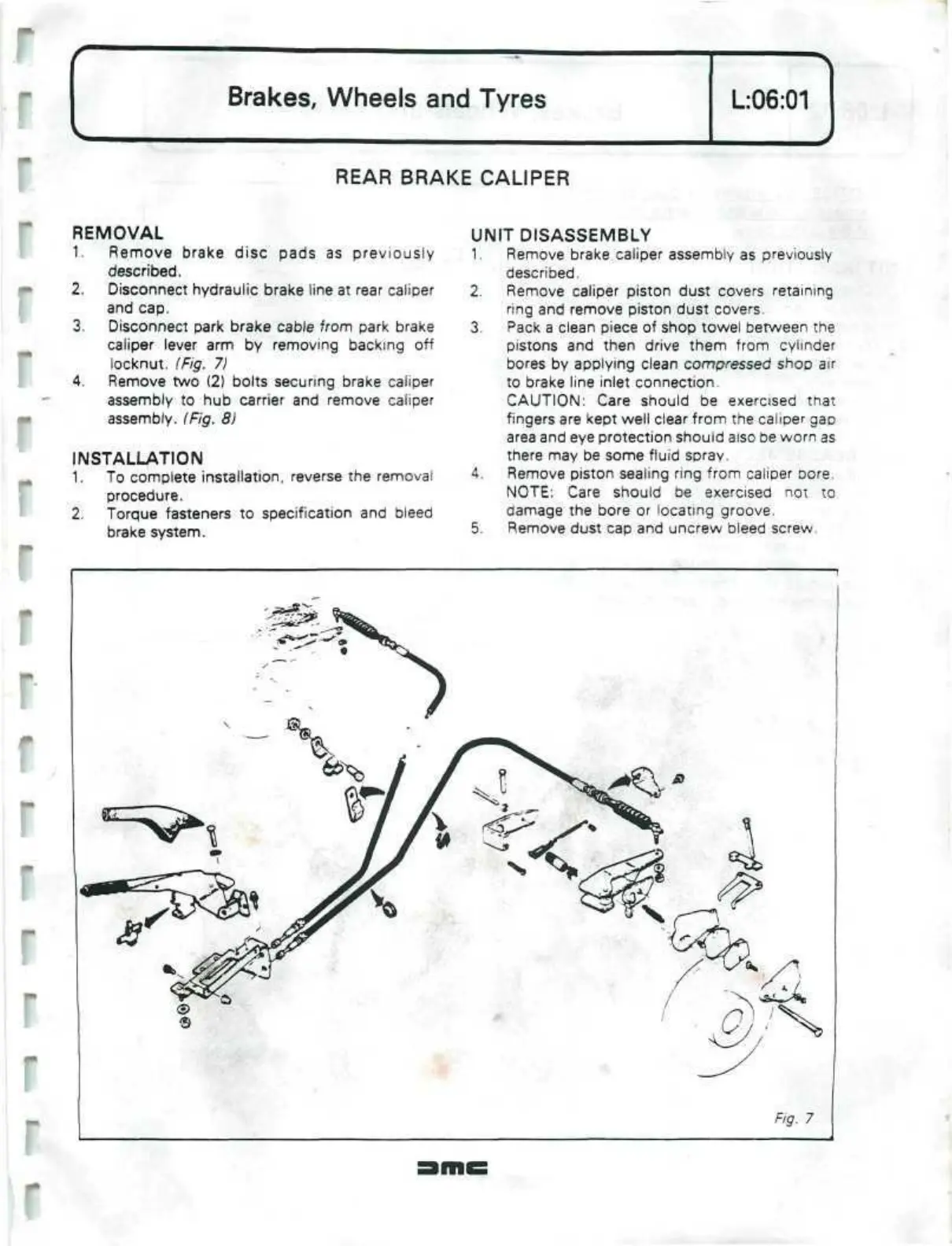

REAR BRAKE CALIPER
REMOVAL
1.
Remove brake disc pads as previously
described.
2.
Disconnect hydraulic brake line at rear caliper
and cap.
3. Disconnect park brake cable from park brake
caliper lever arm by removing backing off
locknut. (Fig. 7)
4.
Remove two (2) bolts securing brake caliper
assembly to hub carrier and remove caliper
assembly.
(Fig.
8)
INSTALLATION
1.
To complete installation, reverse the removal
procedure.
2.
Torque fasteners to specification and bleed
brake system.
UNIT DISASSEMBLY
1.
Remove brake caliper assembly as previously
described.
2.
Remove caliper piston dust covers retaining
ring and remove piston dust covers.
3. Pack a clean piece of shop towel between the
pistons and then drive them from cylinder
bores by applying clean compressed shop
air
to brake line inlet connection.
CAUTION:
Care should be exercised that
fingers are kept well clear from the caliper gap
area and eye protection should also be worn as
there may be some fluid spray.
4.
Remove piston sealing
ring
from caliper
pore.
NOTE:
Care should be exercised not to
damage the bore or locating groove.
5. Remove dust cap and uncrew bleed screw.
