r-
L:06:02
v

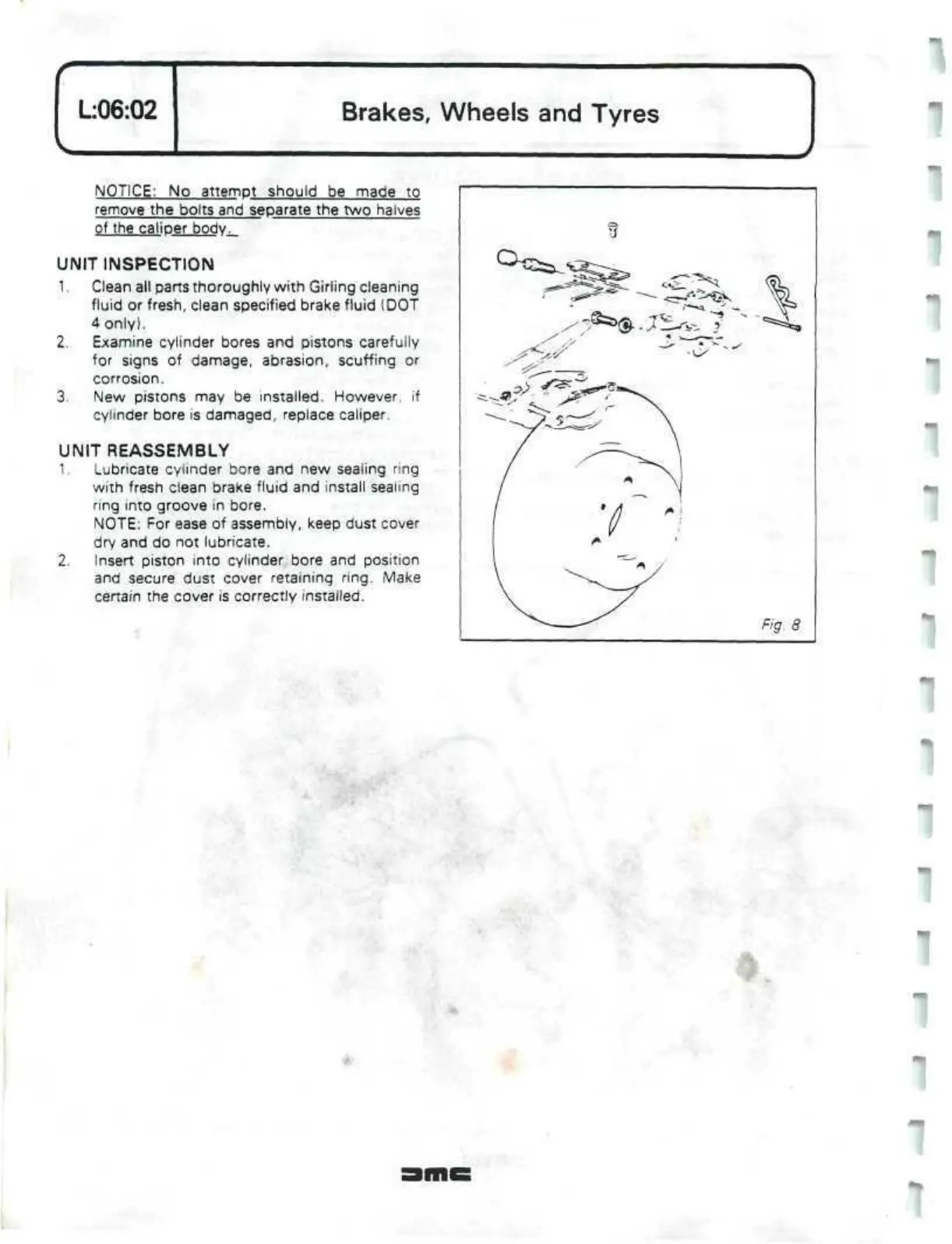

Brakes, Wheels and Tyres
-v
J
NOTICE: No attempt should be made to
remove the bolts and separate the two halves
of the
caliper
body.
UNIT INSPECTION
1.
Clean all parts thoroughly with Girling cleaning
fluid or fresh, clean specified brake fluid (DOT
4 only).
2.
Examine cylinder bores and pistons carefully
for signs of damage, abrasion, scuffing or
corrosion.
3. New pistons may be installed.
However,
if
cylinder bore is damaged, replace caliper.
UNIT REASSEMBLY
1.
Lubricate cylinder bore and new sealing ring
with
fresh clean brake fluid and install sealing
ring into
groove in bore.
NOTE:
For ease of assembly, keep dust cover
dry and do not lubricate.
2.
Insert piston into cylinder bore and position
and secure dust cover retaining
ring.
Make
certain the cover is correctly installed.
1
