M:05:02
Electrical System and Instruments
0$)
34

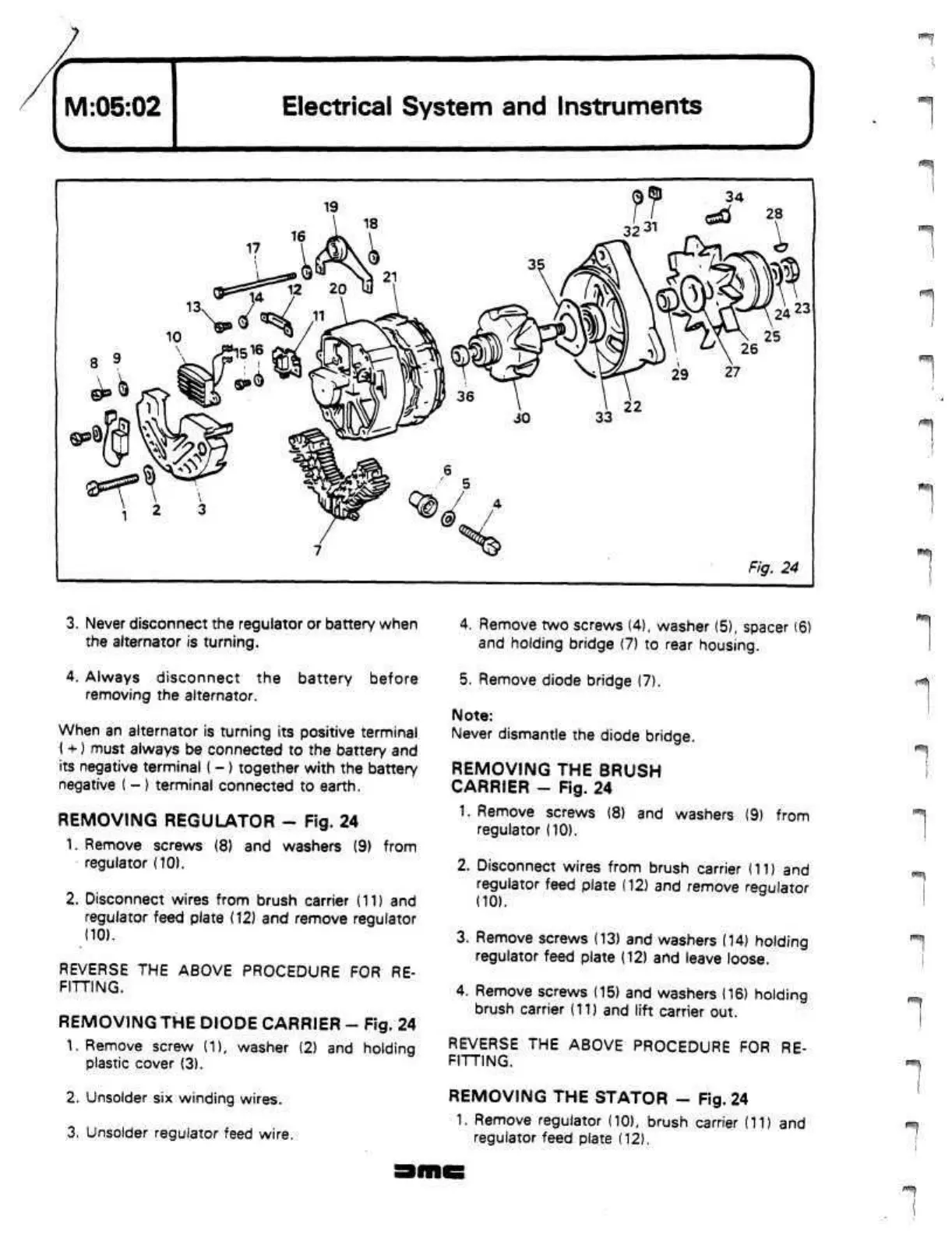

Fig. 24
3. Never disconnect the regulator or battery when
the alternator is turning.
4.
Always disconnect the battery before
removing the alternator.
When an alternator is turning its positive terminal
( +) must always be connected to the battery and
its negative terminal ( -) together with the battery
negative ( -) terminal connected to earth.
REMOVING REGULATOR - Fig. 24
1.
Remove screws (8) and washers (9) from
regulator (10).
2.
Disconnect wires from brush carrier
(11)
and
regulator feed plate (12) and remove regulator
(10).
REVERSE THE ABOVE PROCEDURE FOR RE-
FITTING.
REMOVING THE DIODE CARRIER
-
Fig. 24
1.
Remove screw (1), washer (2) and holding
plastic cover (3).
2.
Unsolder six winding wires.
3. Unsolder regulator feed wire.
4.
Remove two screws (4), washer (5), spacer (6)
and holding bridge (7) to rear housing.
5. Remove diode bridge (7).
Note:
Never dismantle the diode bridge.
REMOVING THE BRUSH
CARRIER - Fig. 24
1.
Remove screws (8) and washers (9) from
regulator (10).
2.
Disconnect wires from brush carrier
(11)
and
regulator feed plate (12) and remove regulator
(10).
3. Remove screws (13) and washers (14) holding
regulator feed plate (12) and leave loose.
4.
Remove screws (15) and washers (16) holding
brush carrier
(11)
and lift carrier out.
REVERSE THE ABOVE PROCEDURE FOR RE-
FITTING.
REMOVING THE
STATOR
- Fig. 24
1.
Remove regulator (10), brush carrier
(11)
and
regulator feed plate (12).
•'
:
