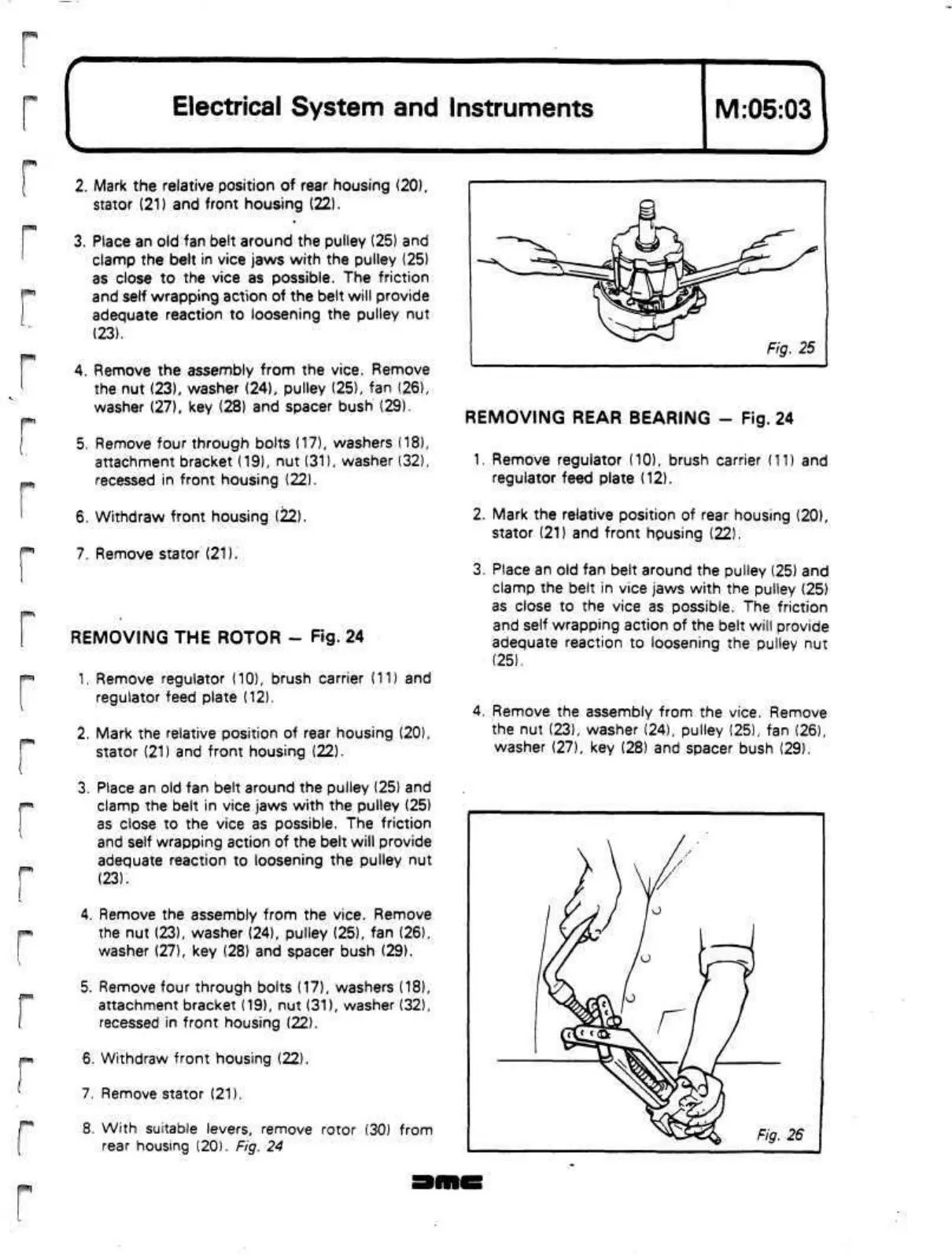

Electrical System and Instruments
M
:05:03 I
2.
Mark the relative position of rear housing (20),
stator (21) and front housing (22).
3. Place an old fan belt around the pulley (25) and
clamp the belt in vice jaws with the pulley (25)
as close to the vice as possible. The friction
and self wrapping action of the belt will provide
adequate reaction to loosening the pulley nut
(23).
4.
Remove the assembly from the vice. Remove
the nut (23), washer (24), pulley (25), fan (26),
washer (27), key (28) and spacer
bush
(29).
5. Remove four through bolts (17), washers (18),
attachment bracket (19), nut (31), washer (32),
recessed in front housing (22).
6. Withdraw front housing (22).
7. Remove stator (21).
REMOVING THE ROTOR
-
Fig. 24
1.
Remove regulator
(10),
brush carrier
(11)
and
regulator feed plate (12).
2.
Mark the relative position of rear housing (20),
stator (21) and front housing (22).
3. Place an old fan belt around the pulley (25) and
clamp the belt in vice jaws with the pulley (25)
as close to the vice as possible. The friction
and self wrapping action of the belt will provide
adequate reaction to loosening the pulley nut
(23).
4.
Remove the assembly from the vice. Remove
the nut (23), washer (24), pulley (25), fan (26),
washer (27), key (28) and spacer bush (29).
5. Remove four through bolts (17), washers (18),
attachment bracket (19), nut (31), washer (32),
recessed in front housing (22).
6. Withdraw front housing (22).
7. Remove stator (21).
REMOVING REAR BEARING - Fig. 24
1.
Remove regulator (10), brush carrier
(11)
and
regulator feed plate (12).
2.
Mark the relative position of rear housing (20),
stator (21) and front hpusing (22).
3. Place an old fan belt around the pulley (25) and
clamp the belt in vice jaws with the pulley (25)
as close to the vice as possible. The friction
and self wrapping action of the belt will provide
adequate reaction to loosening the pulley nut
(25).
4.
Remove the assembly from the vice. Remove
the nut (23), washer (24), pulley (25), fan (26),
washer (27), key (28) and spacer bush (29).
8. With suitable levers, remove rotor (30)
rear housing (20). Fig. 24
from
