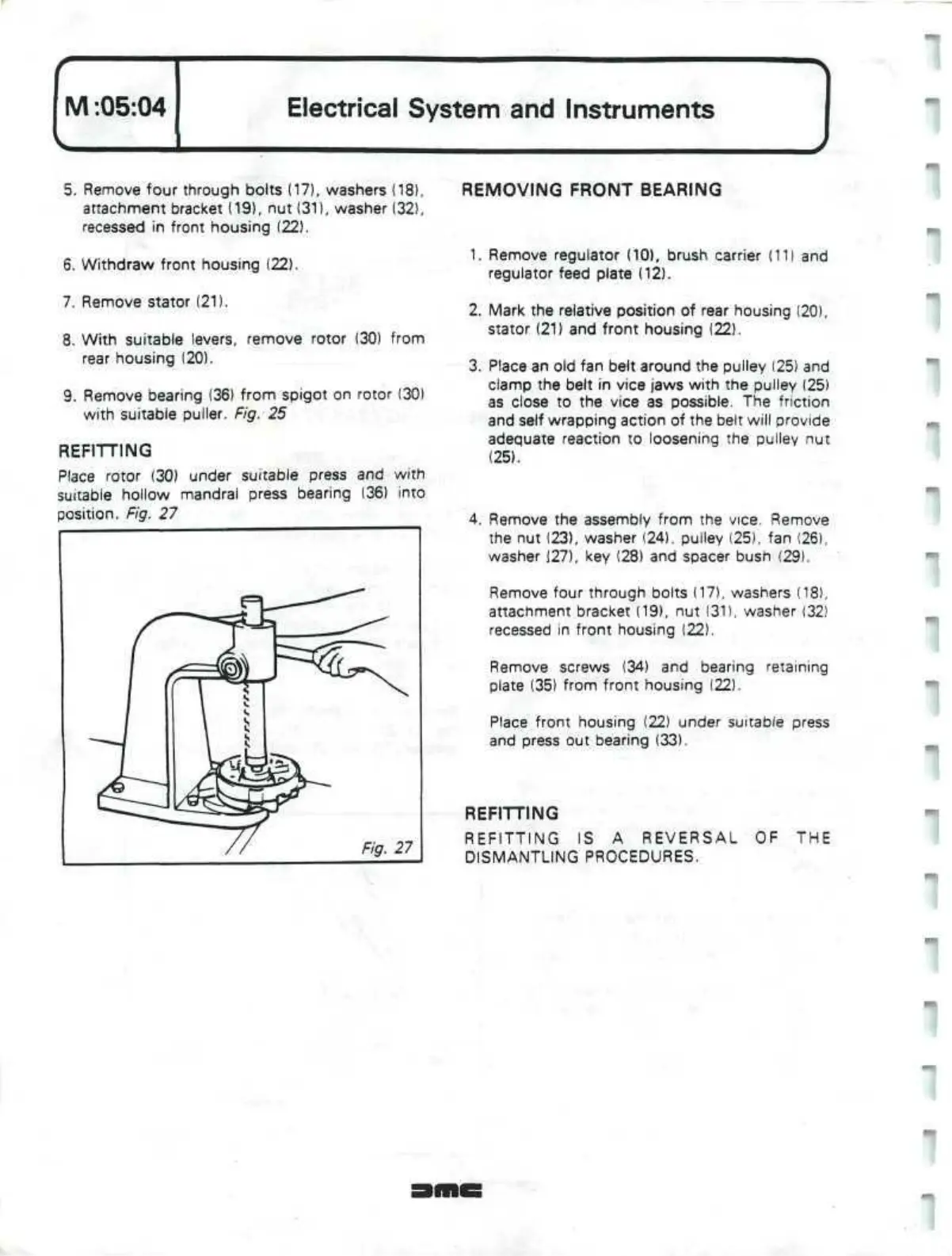

M :05:04
Electrical System and Instruments
5. Remove four through bolts (17), washers (18),
attachment bracket (19), nut (31), washer (32),
recessed in front housing (22).
6. Withdraw front housing (22).
7. Remove stator (21).
8. With suitable levers, remove rotor (30) from
rear housing (20).
9. Remove bearing (36) from spigot on rotor (30)
with suitable puller. Fig. 25
REFITTING
Place rotor (30) under suitable press and with
suitable hollow mandral press bearing (36) into
position. Fig. 27
REMOVING FRONT BEARING
1. Remove regulator (10), brush carrier (11) and
regulator feed plate (12).
2. Mark the relative position of rear housing (20),
stator (21) and front housing (22).
3. Place an old fan belt around the pulley (25) and
clamp the belt in vice jaws with the pulley (25)
as close to the vice as possible. The friction
and self wrapping action of the belt will provide
adequate reaction to loosening the pulley nut
(25).
4. Remove the assembly from the vice. Remove
the nut (23), washer (24). pulley (25), fan (26),
washer 127), key (28) and spacer bush (29).
Remove four through bolts (17), washers (18),
attachment bracket (19), nut (31), washer (32)
recessed in front housing (22).
Remove screws (34) and bearing retaining
plate (35) from front housing (22).
Place front housing (22) under suitable press
and press out bearing (33).
REFITTING
REFITTING IS A REVERSAL OF THE
DISMANTLING PROCEDURES.
