Electrical System and Instruments
M:06:01
r
r
r
r
r
r
r
r
r
r
r
r
BATTERY

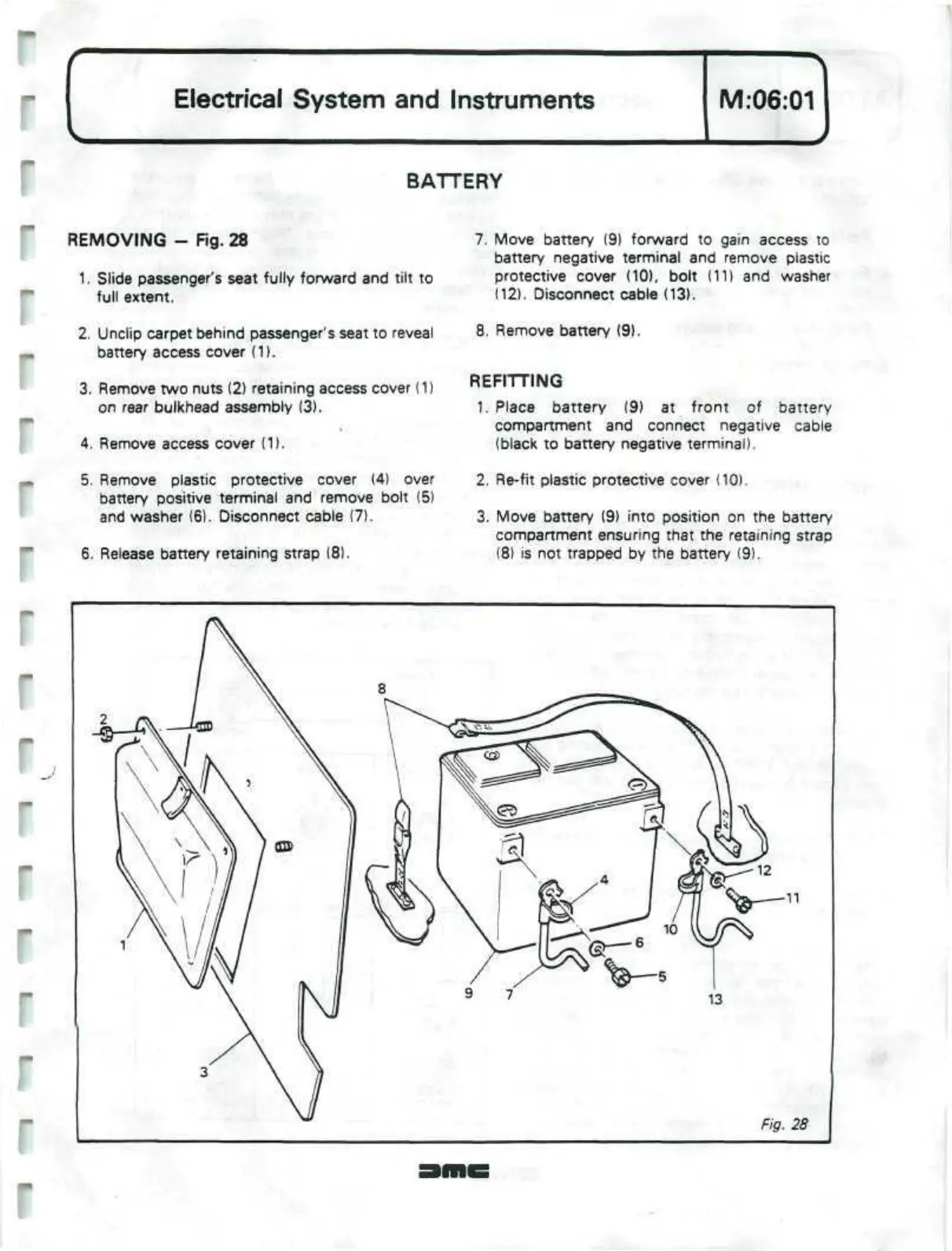

REMOVING - Fig. 28
1.
Slide passenger's seat fully forward and tilt to
full extent.
2.
Unclip carpet behind passenger's seat to reveal
battery access cover
(1).
3. Remove two nuts (2) retaining access cover
(1)
on rear bulkhead assembly (3).
4.
Remove access cover (1).
5. Remove plastic protective cover (4) over
battery positive terminal and remove bolt (5)
and washer (6). Disconnect cable (7).
6. Release battery retaining strap (8).
7. Move battery (9) forward to gain access to
battery negative terminal and remove plastic
protective cover (10), bolt (11) and washer
(12).
Disconnect cable (13).
8. Remove battery (9).
REFITTING
1.
Place battery (9) at front of battery
compartment and connect negative cable
(black to battery negative terminal).
2.
Re-fit plastic protective cover (10).
3. Move battery (9) into position on the battery
compartment ensuring that the retaining strap
(8) is not trapped by the battery (9).
