Electrical System and Instruments
M:09:03
r^r^
WIPER MOTOR SPECIFICATION
Type Bosch 12 Volt.
Nominal wiping speed (screen wet) 45 and 60
cycles per minute.
WIPER DELAY CONTROL BOX

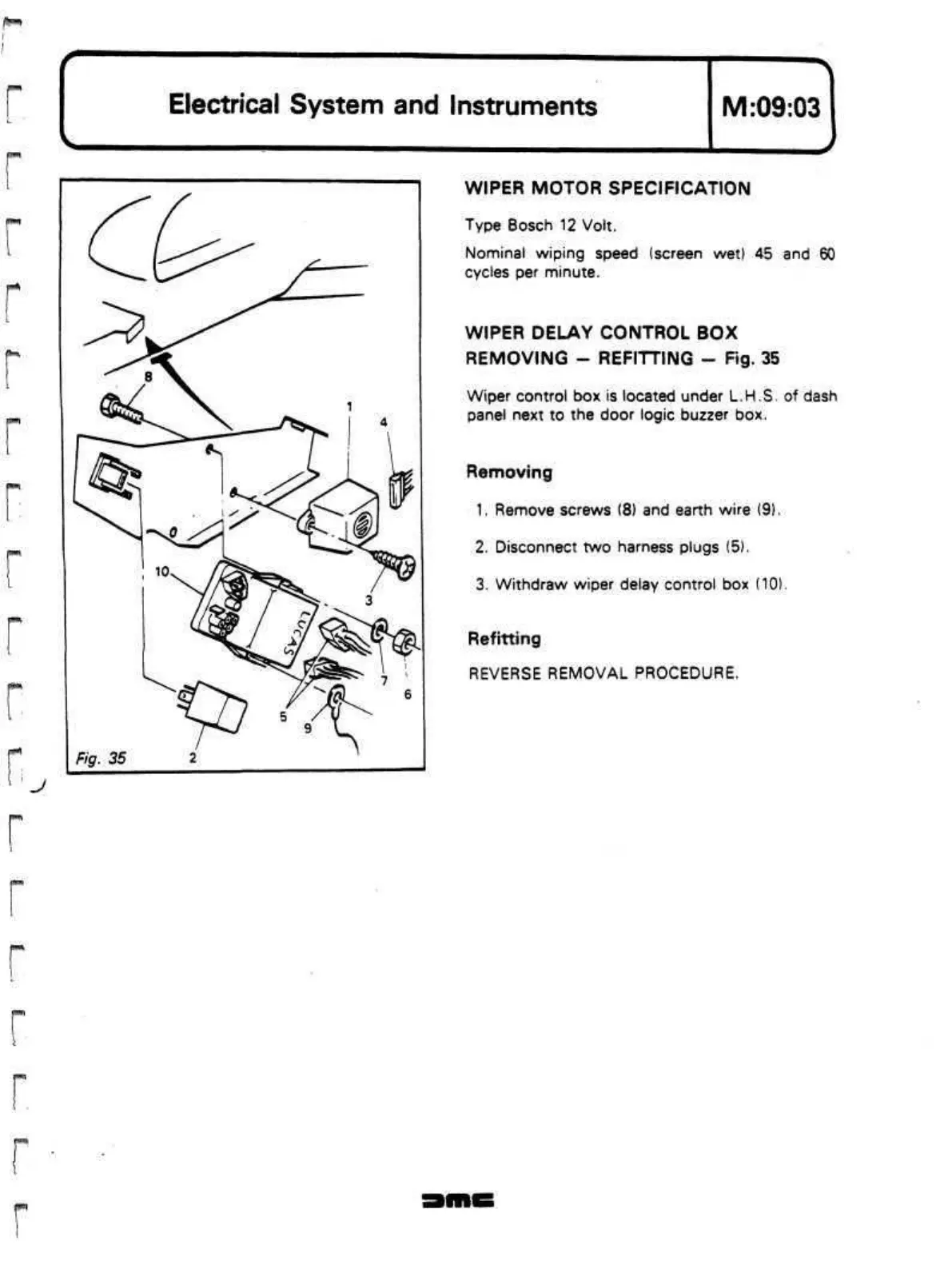

REMOVING - REFITTING - Fig. 35
Wiper control box is located under L.H.S. of dash
panel next to the door logic buzzer box.
Removing
1.
Remove screws (8) and earth wire (9).
2.
Disconnect two harness plugs (5).
3. Withdraw wiper delay control box (10).
Refitting
REVERSE REMOVAL PROCEDURE.
