Electrical System and Instruments
F^I

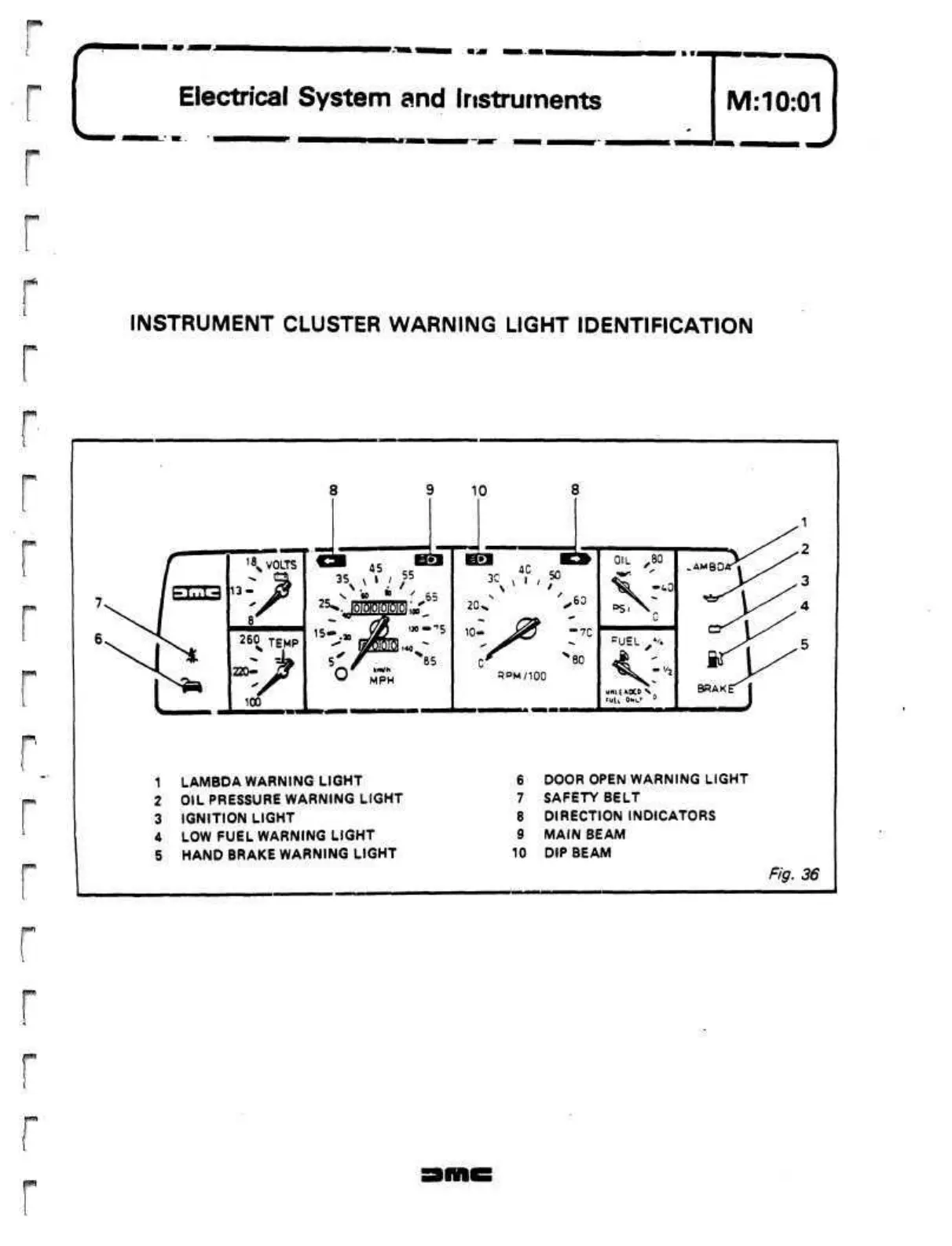

INSTRUMENT CLUSTER WARNING LIGHT IDENTIFICATION
f
unlEftOCD V.
tutt OKL' "
.AMBD
BPAK
1 LAMBDA WARNING LIGHT
2 OIL PRESSURE WARNING LIGHT
3 IGNITION LIGHT
4 LOW FUEL WARNING LIGHT
5 HAND BRAKE WARNING LIGHT
6 DOOR OPEN WARNING LIGHT
7 SAFETY BELT
8 DIRECTION INDICATORS
9 MAIN BEAM
10 DIP BEAM
Fig. 36
