M:10:02
Electrical System and Instruments
<*°m
REMOVING INSTRUMENT CLUSTER
To remove instrument cluster from car see section
"P"
(Body).

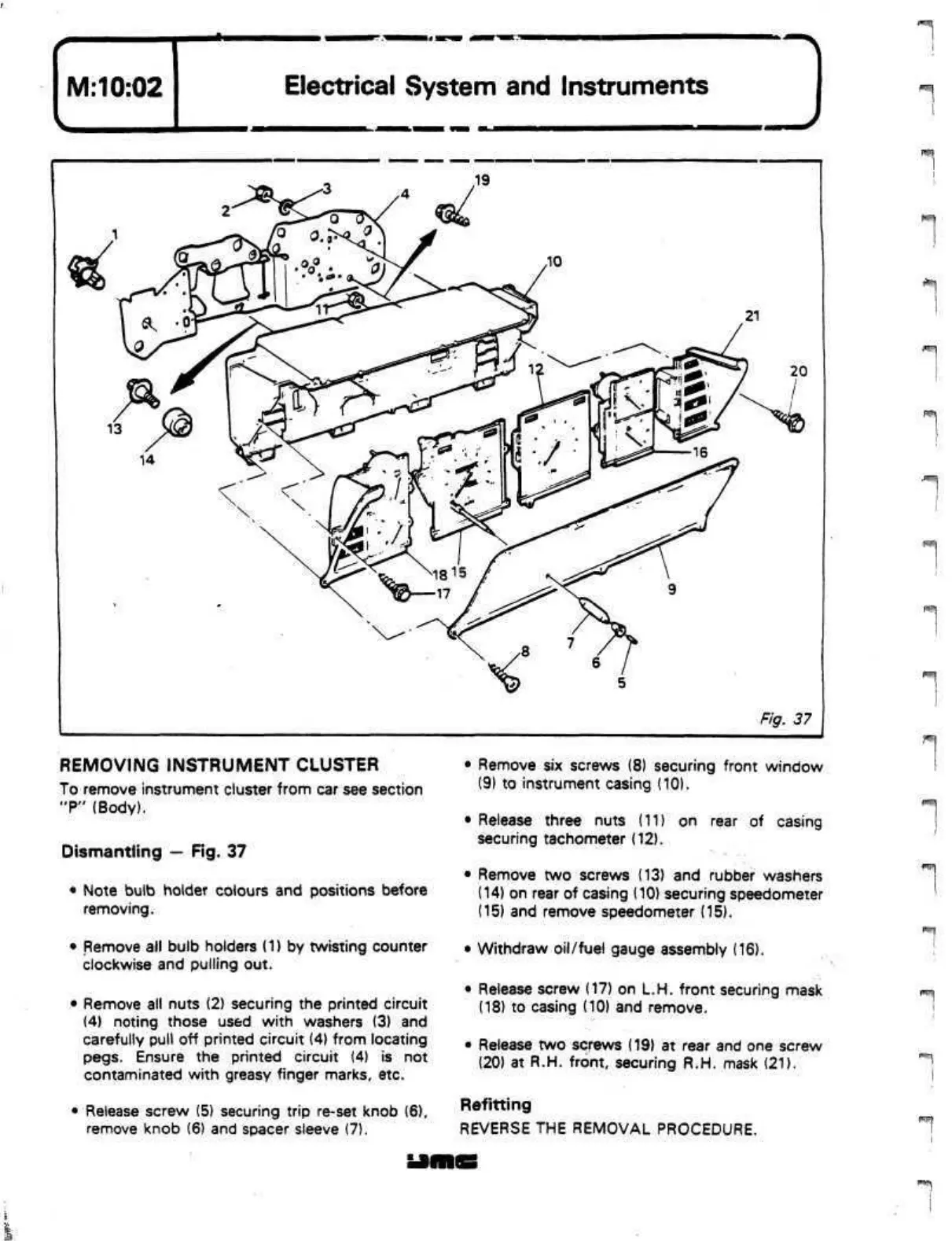

Dismantling — Fig. 37
•
Note bulb holder colours and positions before
removing.
• Remove all bulb holders (1) by twisting counter
clockwise and pulling out.
• Remove all nuts (2) securing the printed circuit
(4) noting those used with washers (3) and
carefully pull off printed circuit (4) from locating
pegs.
Ensure the printed circuit (4) is not
contaminated with greasy finger marks, etc.
• Release screw (5) securing trip re-set knob (6),
remove knob (6) and spacer sleeve (7).
• Remove six screws (8) securing front window
(9) to instrument casing (10).
• Release three nuts
(11)
on rear of casing
securing tachometer (12).
• Remove two screws (13) and rubber washers
(14) on rear of casing (10) securing speedometer
(15) and remove speedometer (15).
• Withdraw oil/fuel gauge assembly (16).
• Release screw (17) on L.H. front securing mask
(18) to casing (10) and remove.
• Release two screws (19) at rear and one screw
(20) at R.H. front, securing R.H. mask (21).
Refitting
REVERSE THE REMOVAL PROCEDURE.
