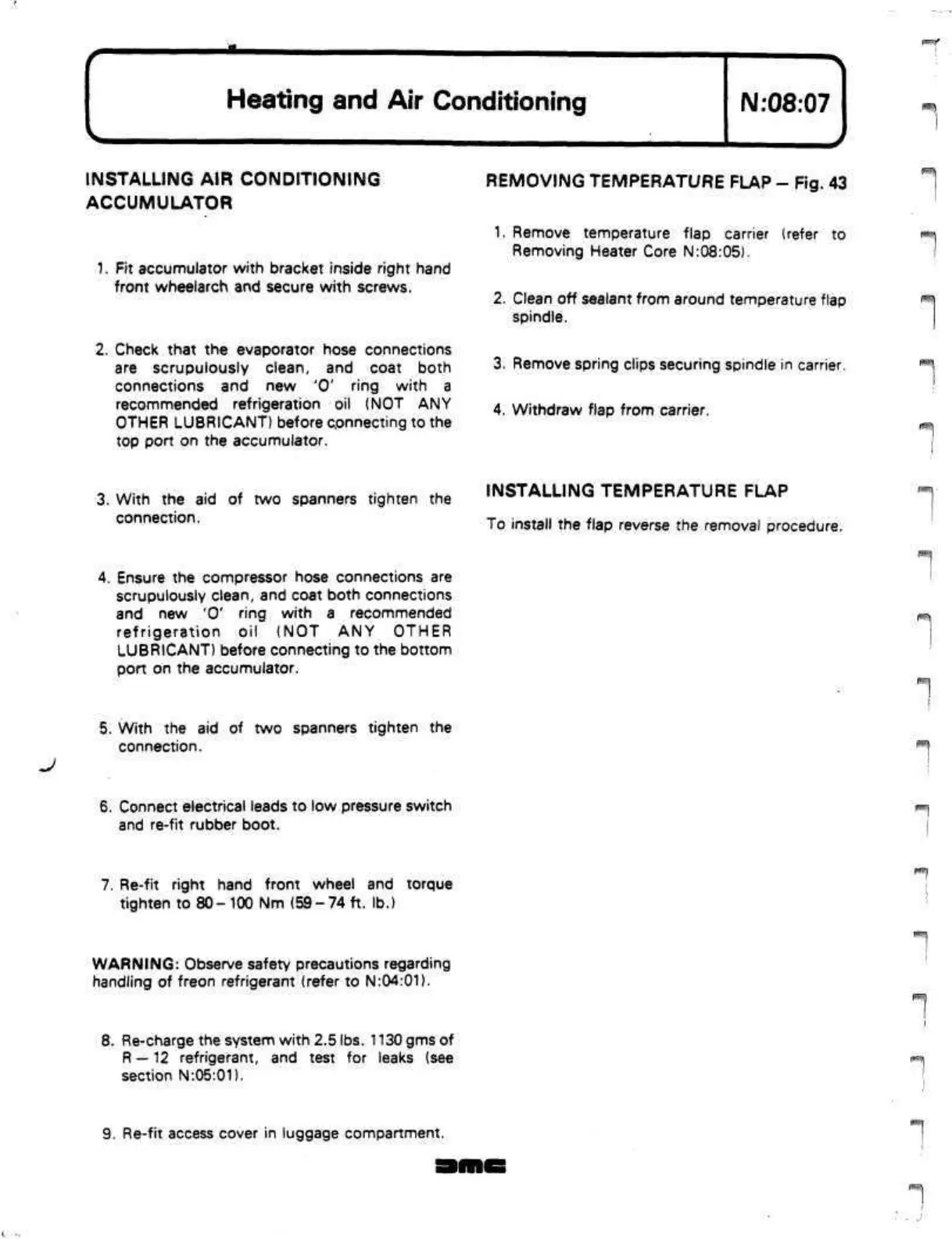

Heating and Air Conditioning
N:08:07
INSTALLING AIR CONDITIONING
ACCUMULATOR
1.
Fit accumulator with bracket inside right hand
front wheelarch and secure with screws.
2.
Check that the evaporator hose connections
are scrupulously clean, and coat both
connections and new '0' ring with a
recommended refrigeration oil (NOT ANY
OTHER LUBRICANT) before connecting to the
top port on the accumulator.
REMOVING TEMPERATURE FLAP - Fig. 43
1.
Remove temperature flap carrier (refer to
Removing Heater Core N:08:05).
2.
Clean off sealant from around temperature flap
spindle.
3. Remove spring clips securing spindle in carrier.
4.
Withdraw flap from carrier.
h'i:i
3. With the aid of two spanners tighten the
connection.
INSTALLING TEMPERATURE FLAP
To install the flap reverse the removal procedure.
J
4.
Ensure the compressor hose connections are
scrupulously clean, and coat both connections
and new '0' ring with a recommended
refrigeration oil (NOT ANY OTHER
LUBRICANT) before connecting to the bottom
port on the accumulator.
5. With the aid of two spanners tighten the
connection.
6. Connect electrical leads to low pressure switch
and re-fit rubber boot.
7. Re-fit right hand front wheel and torque
tighten to
80-100 Nm
(59-74 ft. lb.)
WARNING:
Observe safety precautions regarding
handling of freon refrigerant (refer to N:04:01).
wm
P$|
8. Re-charge the system with 2.5 lbs.
1130 gms
of
R
—12
refrigerant, and test for leaks (see
section N:05:01).
9. Re-fit access cover in luggage compartment.
