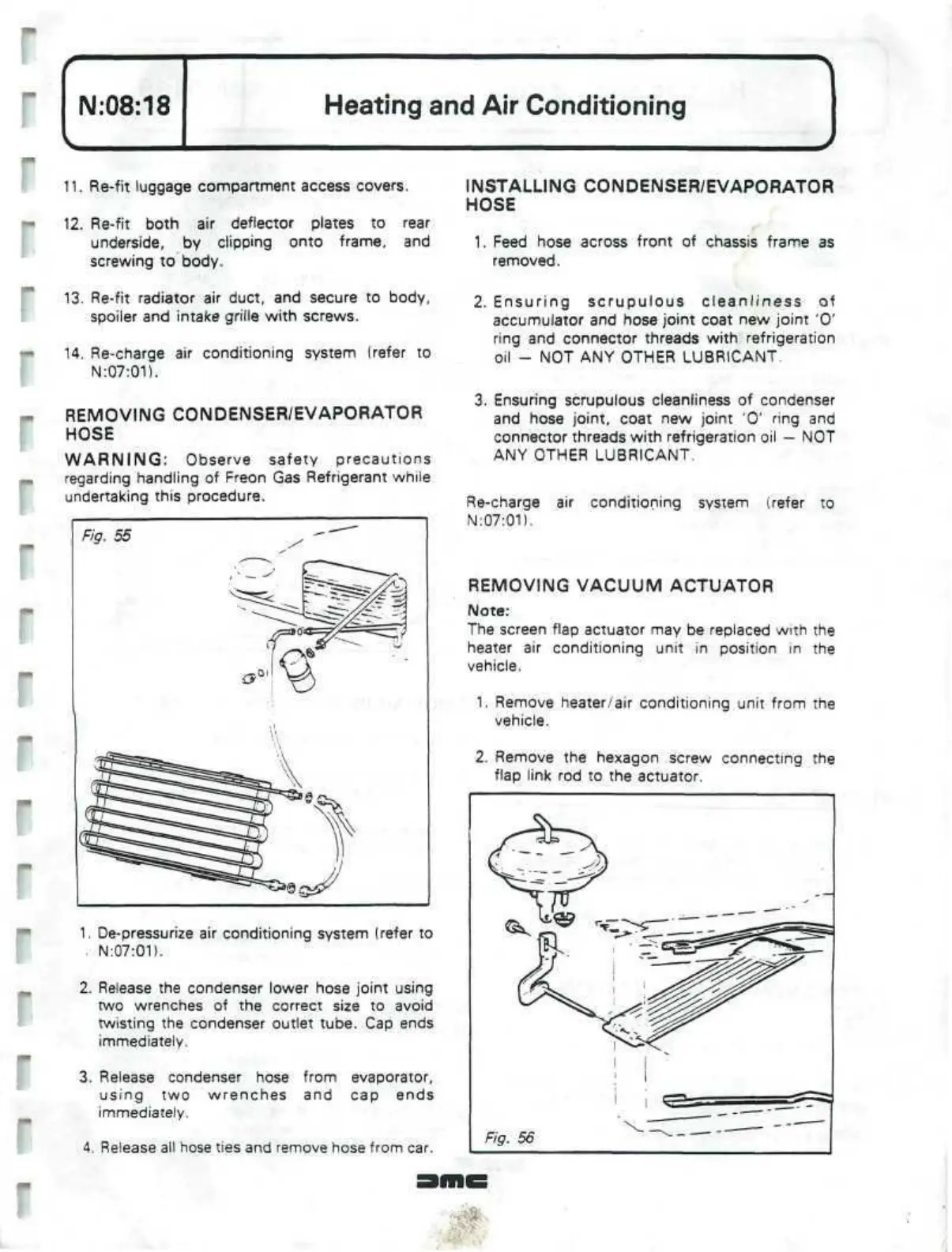

N:08:18
Heating and Air Conditioning
)
-
-
I
I
I
11.
Re-fit luggage compartment access covers.
12.
Re-fit both air deflector plates to rear
underside, by clipping onto frame, and
screwing to body.
13.
Re-fit radiator air duct, and secure to body,
spoiler and intake grille with screws.
14.
Re-charge air conditioning system (refer to
N
:07:01).
REMOVING CONDENSER/EVAPORATOR
HOSE
WARNING: Observe safety precautions
regarding handling of Freon Gas Refrigerant while
undertaking this procedure.
1.
De-pressurize air conditioning system (refer to
. N:07:01).
2.
Release the condenser lower hose joint using
two wrenches of the correct size to avoid
twisting the condenser outlet tube. Cap ends
immediately.
3. Release condenser hose from evaporator,
using two wrenches and cap ends
immediately.
4.
Release all hose ties and remove hose from car.
INSTALLING CONDENSER/EVAPORATOR
HOSE
1.
Feed hose across front of chassis frame as
removed.
2.
Ensuring scrupulous cleanliness of
accumulator and hose joint coat new joint '0'
ring and connector threads with refrigeration
oil - NOT ANY OTHER
LUBRICANT
3. Ensuring scrupulous cleanliness of condenser
and hose joint, coat new joint '0' ring and
connector threads with refrigeration oil — NOT
ANY OTHER LUBRICANT.
Re-charge air conditioning system (refer to
N:07:01).
REMOVING VACUUM ACTUATOR
Note:
The screen flap actuator may be replaced with the
heater air conditioning unit in position in the
vehicle.
1.
Remove heater/air conditioning unit from the
vehicle.
2.
Remove the hexagon screw connecting the
flap link rod to the actuator.
