STANDARD SECTIONAL REPAIR
MOULDINGS

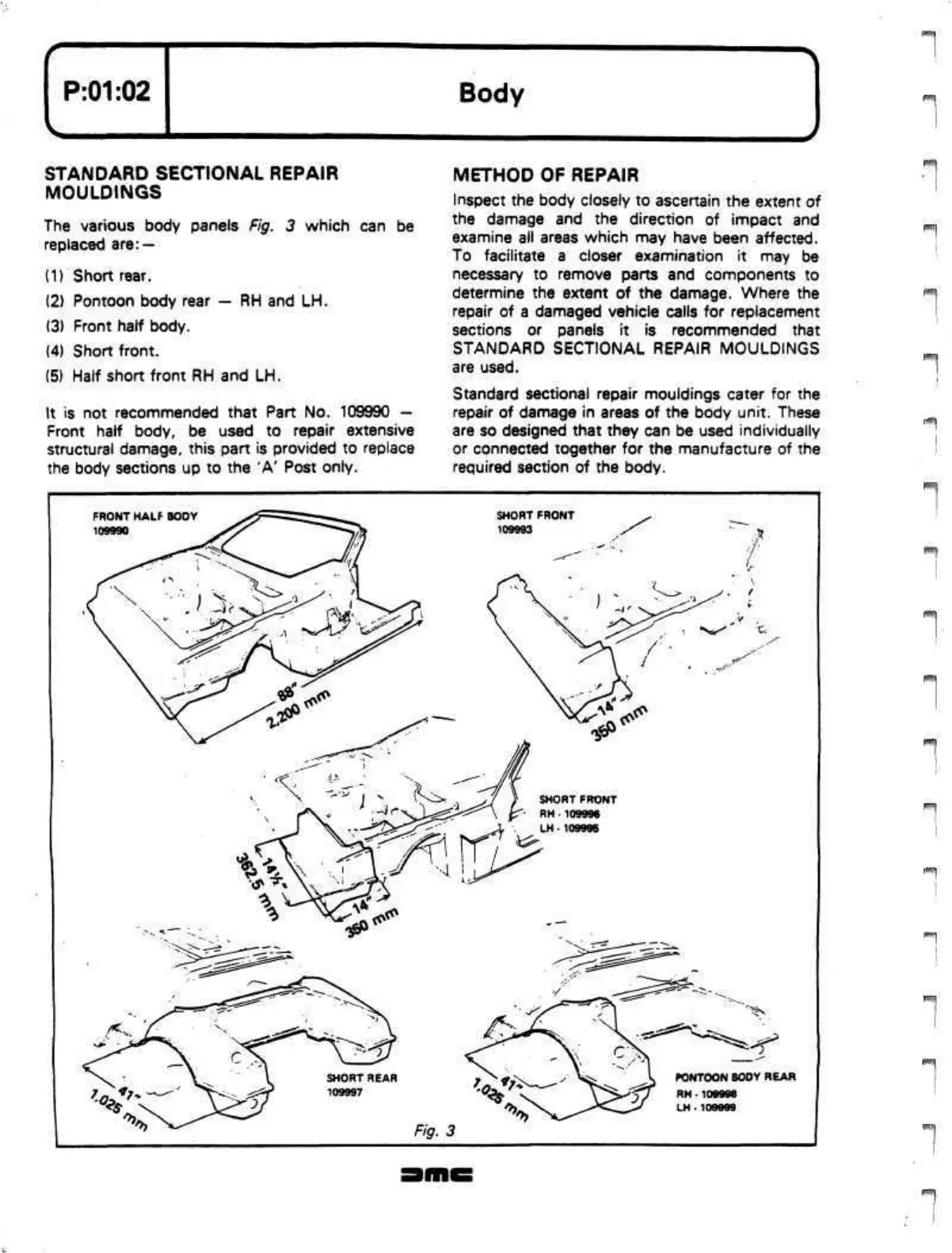

The various body panels Fig. 3 which can be
replaced
are:
—
(1) Short rear.
(2) Pontoon body rear — RH and LH.
(3) Front half body.
(4) Short front.
(5) Half short front RH and LH.
It
is not recommended that Part No. 109990 —
Front half body, be used to repair extensive
structural damage, this part is provided to replace
the body sections up to the 'A' Post only.
METHOD OF REPAIR
Inspect the body closely to ascertain the extent of
the damage and the direction of impact and
examine all areas which may have been affected.
To facilitate a closer examination it may be
necessary to remove parts and components to
determine the extent of the damage. Where the
repair of a damaged vehicle calls for replacement
sections or panels it is recommended that
STANDARD SECTIONAL REPAIR MOULDINGS
are used.
Standard sectional repair mouldings cater for the
repair of damage in areas of the body unit. These
are so designed that they can be used individually
or connected together for the manufacture of the
required section of the body.
FRONT HALF BODY
109990
PONTOON BODY REAR
HH
*
i009vo
LH •109999
0,
j
P "j
|.^;.:-j
Fig. 3
Sri-
