11.
Position and secure front fender stay.
12.
Fit two screws securing lower edge of fender
to spoiler.
13.
Fit five screws securing lower edge of fascia
panel to air intake screen.
14.
Fit two nuts and bolts securing spoiler to fascia
panel and body mounting bracket.
15.
Tighten screws on front fascia panel top edge
support bracket, ensuring correct alignment of
fascia panel.
16.
Refit weather strip along top edge of fender
inside luggage compartment.
17.
Refit outer door seal along rear edge of fender
in door filler panel.
18.
Refit bulb-holder to side marker lamp and
secure lamp with two screws.

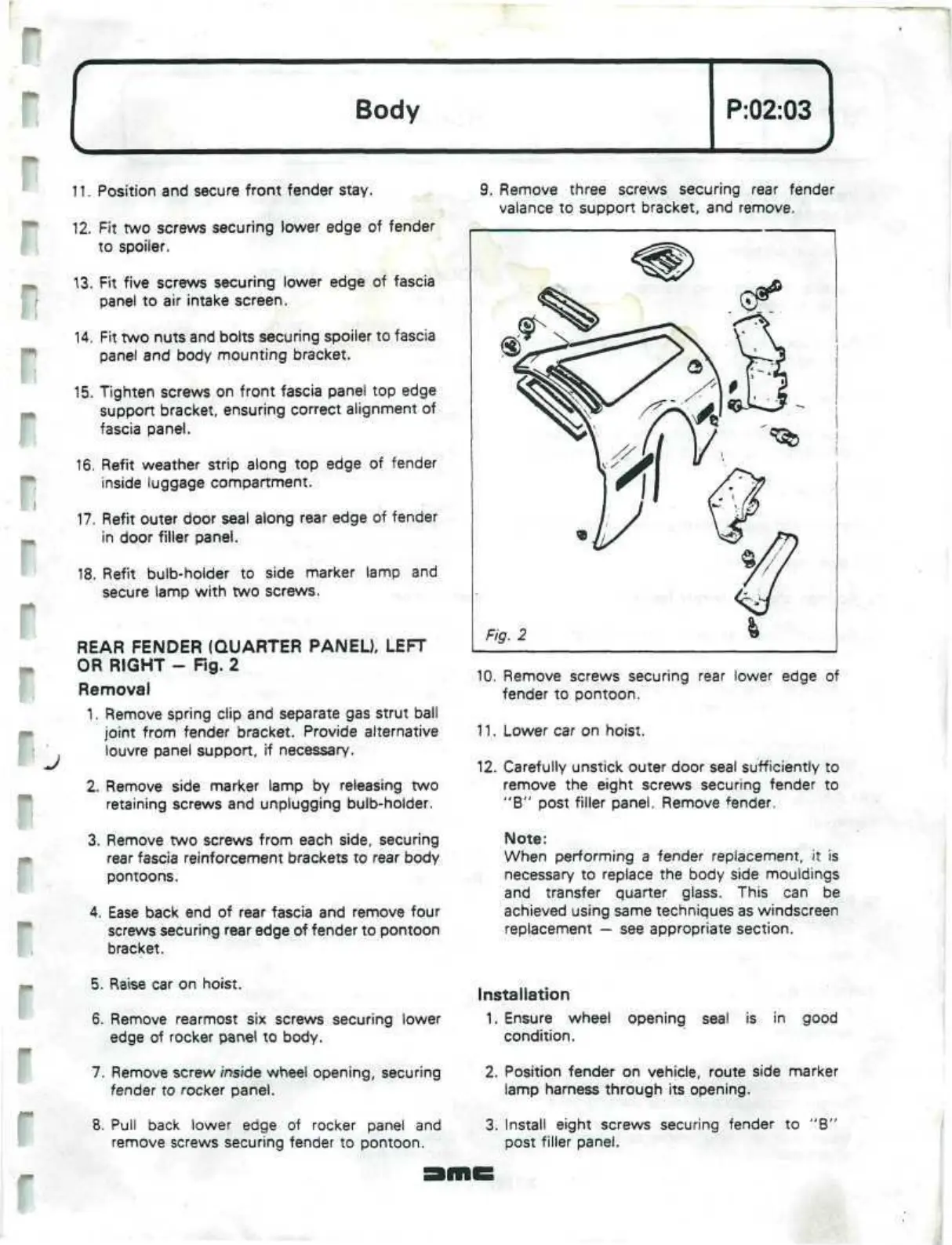

REAR FENDER (QUARTER PANEL), LEFT
OR RIGHT
-
Fig. 2
Removal
1.
Remove spring clip and separate gas strut ball
joint from fender bracket. Provide alternative
louvre panel support, if necessary.
2.
Remove side marker lamp by releasing two
retaining screws and unplugging bulb-holder.
3. Remove two screws from each side, securing
rear fascia reinforcement brackets to rear body
pontoons.
4.
Ease back end of rear fascia and remove four
screws securing rear edge of fender to pontoon
bracket.
5. Raise car on hoist.
6. Remove rearmost six screws securing lower
edge of rocker panel to body.
7. Remove screw inside wheel opening, securing
fender to rocker panel.
8. Pull back lower edge of rocker panel and
remove screws securing fender to pontoon.
9. Remove three screws securing rear fender
valance to support bracket, and remove.
10.
Remove screws securing rear lower edge of
fender to pontoon.
11.
Lower car on hoist.
12.
Carefully unstick outer door seal sufficiently to
remove the eight screws securing fender to
"B"
post filler panel. Remove
fender.
Note:
When performing a fender replacement, it is
necessary to replace the body side mouldings
and transfer quarter glass. This can be
achieved using same techniques as windscreen
replacement — see appropriate section.
Installation
1.
Ensure wheel opening seal is in good
condition.
2.
Position fender on vehicle, route side marker
lamp harness through its opening.
3. Install eight screws securing fender to "B"
post filler panel.
