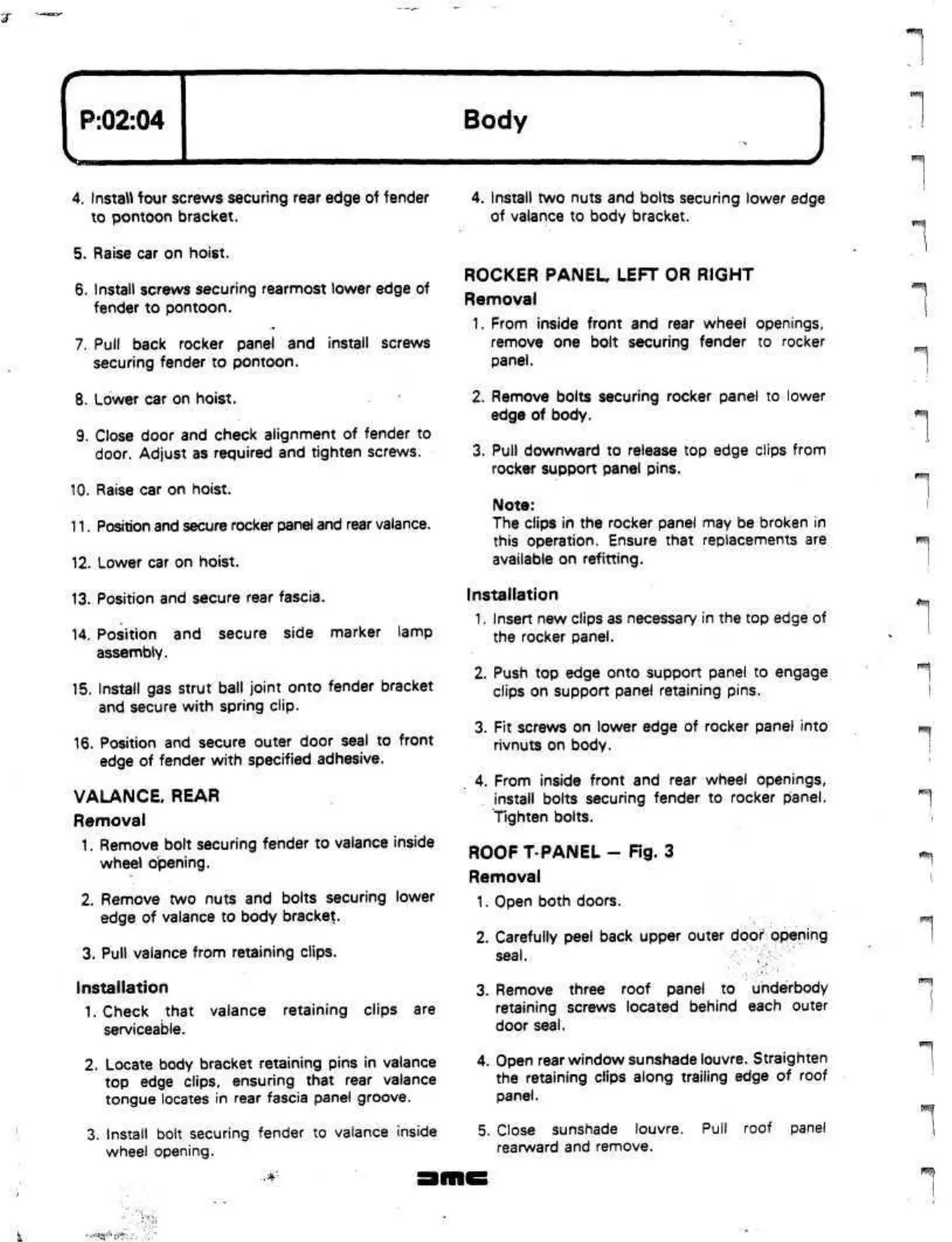

4.
Install
four screws securing rear edge of fender
to pontoon bracket.
5. Raise car on hoist.
6. Install screws securing rearmost lower edge of
fender to pontoon.
7. Pull back rocker panel and install screws
securing fender to pontoon.
8. Lower car on hoist.
9. Close door and check alignment of fender to
door. Adjust as required and tighten screws.
10.
Raise car on hoist.
11.
Position and secure rocker panel and rear valance.
12.
Lower car on hoist.
13.
Position and secure rear fascia.
14.
Position and secure side marker lamp
assembly.
15.
Install gas strut ball joint onto fender bracket
and secure with spring clip.
16.
Position and secure outer door seal to front
edge of fender with specified adhesive.
VALANCE. REAR
Removal
1..
Remove bolt securing fender to valance inside
wheel opening.
2.
Remove two nuts and bolts securing lower
edge of valance to body bracket.
3. Pull valance from retaining clips.
Installation
1.
Check that valance retaining clips are
serviceable.
2.
Locate body bracket retaining pins in valance
top edge clips, ensuring that rear valance
tongue locates in rear fascia panel groove.
3. Install bolt securing fender to valance inside
wheel opening.
••'¥
5
4.
Install two nuts and bolts securing lower edge
of valance to body bracket.
ROCKER PANEL, LEFT OR RIGHT
Removal
1.
From inside front and rear wheel openings,
remove one bolt securing fender to rocker
panel.
2.
Remove bolts securing rocker panel to lower
edge of body.
3. Pull downward to release top edge clips from
rocker support panel pins.
Note:
The clips in the rocker panel may be broken in
this operation. Ensure that replacements are
available on refitting.
Installation
1.
Insert new clips as necessary in the top edge of
the rocker panel.
2.
Push top edge onto support panel to engage
clips on support panel retaining pins.
3. Fit screws on lower edge of rocker panel into
rivnuts on body.
4.
From inside front and rear wheel openings,
install bolts securing fender to rocker panel.
Tighten bolts.
ROOFT-PANEL-
Fig. 3
Removal
1.
Open both doors.
2.
Carefully peel back upper outer
door
opening
seal.
-•'•'• .';• ;:••'.
3. Remove three roof panel to underbody
retaining screws located behind each outer
door
seal.
4.
Open rear window sunshade louvre. Straighten
the retaining clips along trailing edge of roof
panel.
5. Close sunshade louvre. Pull roof panel
rearward and remove.
.<¥':'•;
