Routing the Cable
Option 1
When using option 1, route the cable
into the trunk as shown in figure 6.
Always cross the weather seal at the
lowest part of the trunk to reduce
water leaks. From the trunk, route the
cable into the passenger compart-
ment through available wire channels
and then along the floor under the
door jamb trim or under the carpet to
the front of the passenger compart-
ment. Do not leave the cable loose in
the passenger compartment where it
is likely to be damaged.
Option 2
When using option 2, route the
cable along the door jamb and
into the vehicle as shown in figure
6. Route the cable across the
weather seal near the bottom of
the door to reduce water leaks.

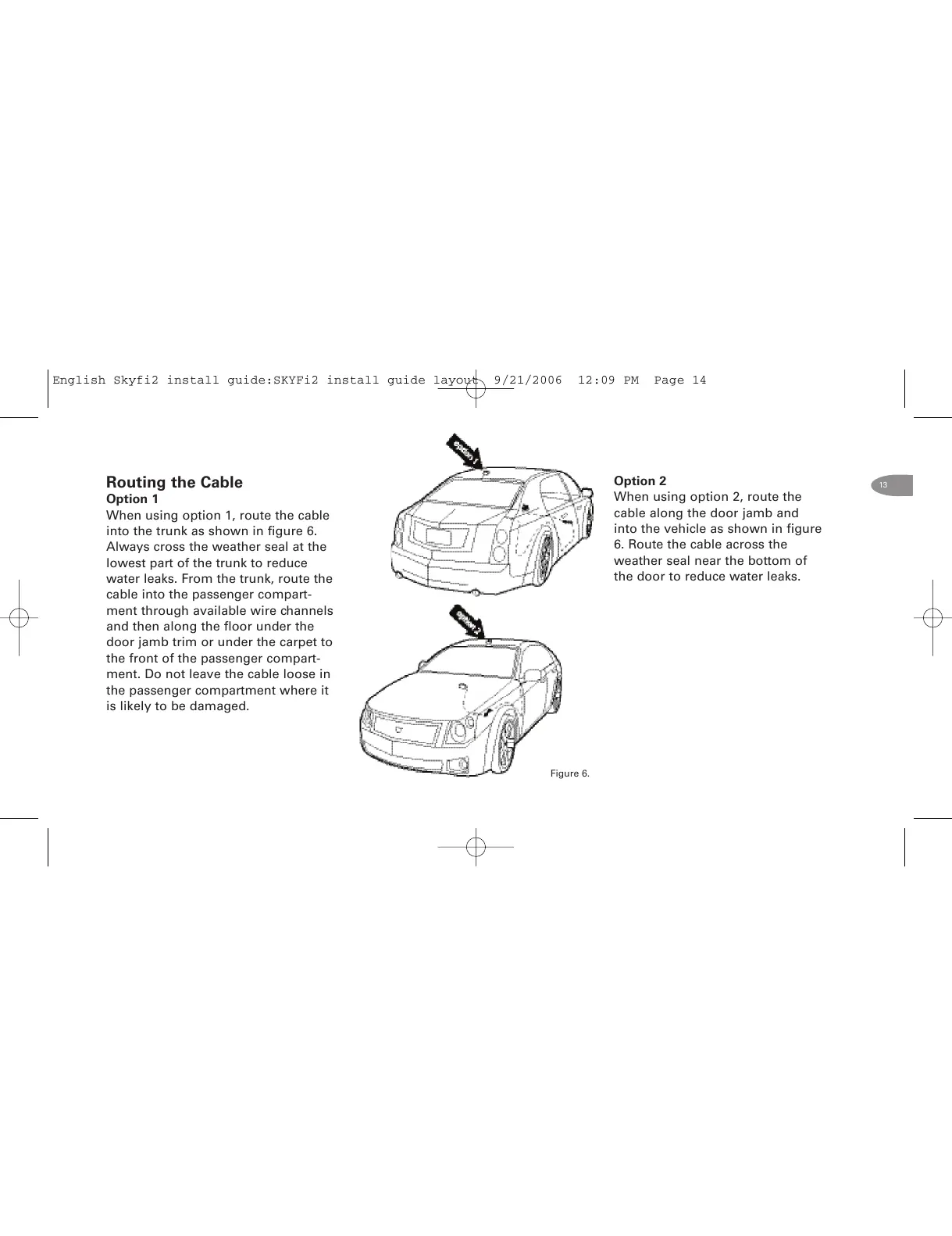

Figure 6.
