DelRay DFSP - Installation - Location and Clearances; Choosing an Installation Location; Clearances to Combustible Materials

Page 3
Part No. XG0509
DFSP Rio Pedestal Stove
Quality Gas Products by Montigo
Choosing a Location
The fireplace may be installed in any location that maintains clear-
ances to air conditioning ducts, electrical wiring and plumbing. Safety,
as well as efficiency of operation, must be considered when selecting
the fireplace location. Try to select a location that does not interfere
with room traffic, has adequate ventilation, and offers an accessible
pathway for vent installation. Refer to page 4 - Vent Installation for
more information.
The Rio's dimensions are shown below:
Installation

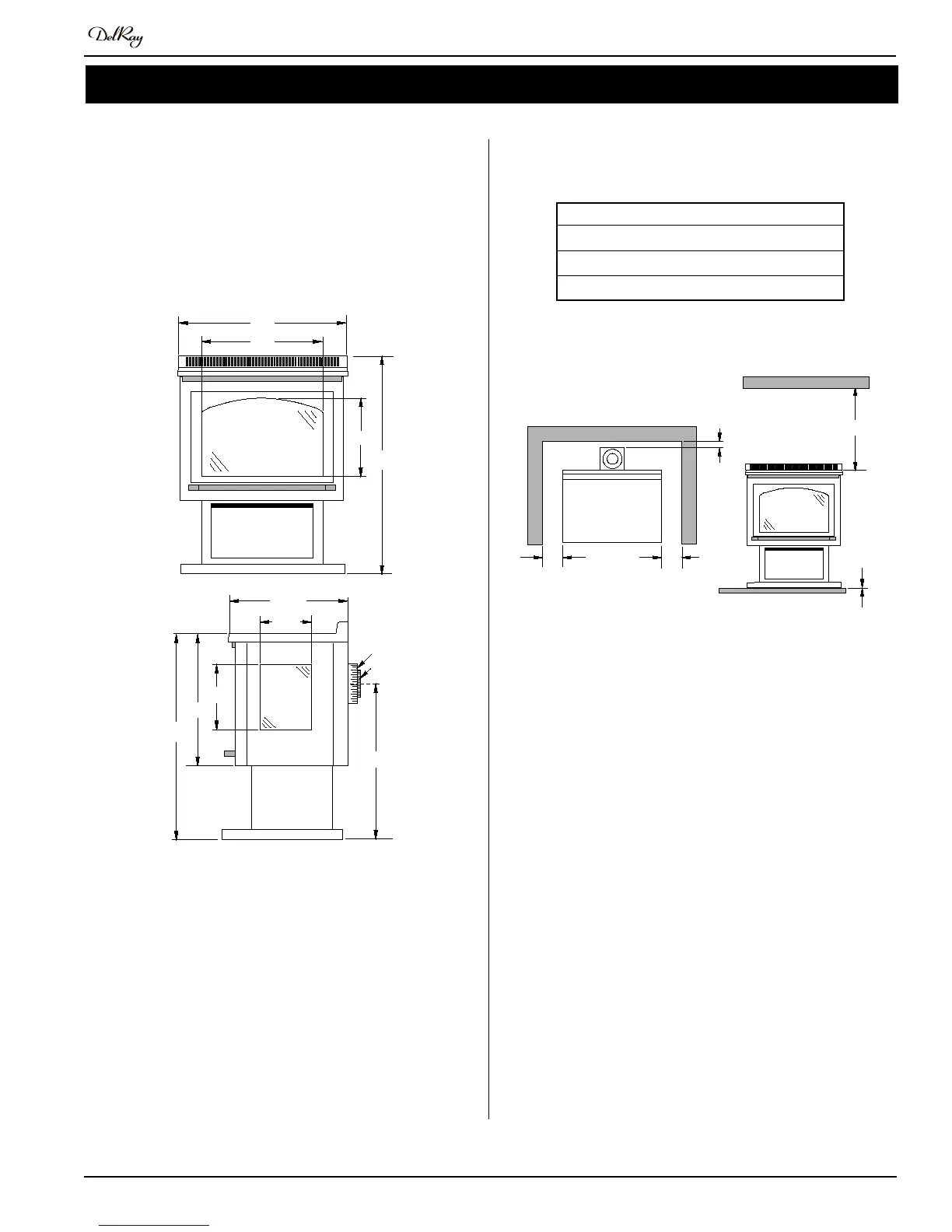

Figure 1. Stove dimensions.
24
16
34 1/2
10 7/8
Front View
Side View
6 1/2
32 5/8
17 5/8
21 3/4
9
25
Ø4"
Ø7"
When installing this stove in an alcove, the minimum clearance from
the top of the stove to a combustible surface is 42". (Minimum 1"
clearance must be maintained around the vent pipes.)
D
C
A
B
B
Figure 3. Clearances to combustible surfaces.
Clearances
The Rio Pedestal Stove's clearances to combustible materials are:
A - Back 1 ½"
B - Side 10 ½"
C - Floor 0"
D - Top* 42"
* Clearance from the top of the stove to a
combustible ceiling.
