Chapter 2 HMI-WPLSoft Introduction|DOP-EXIO Series
2-8
Revision March, 2008, Doc. Name: 2007PDD23000014

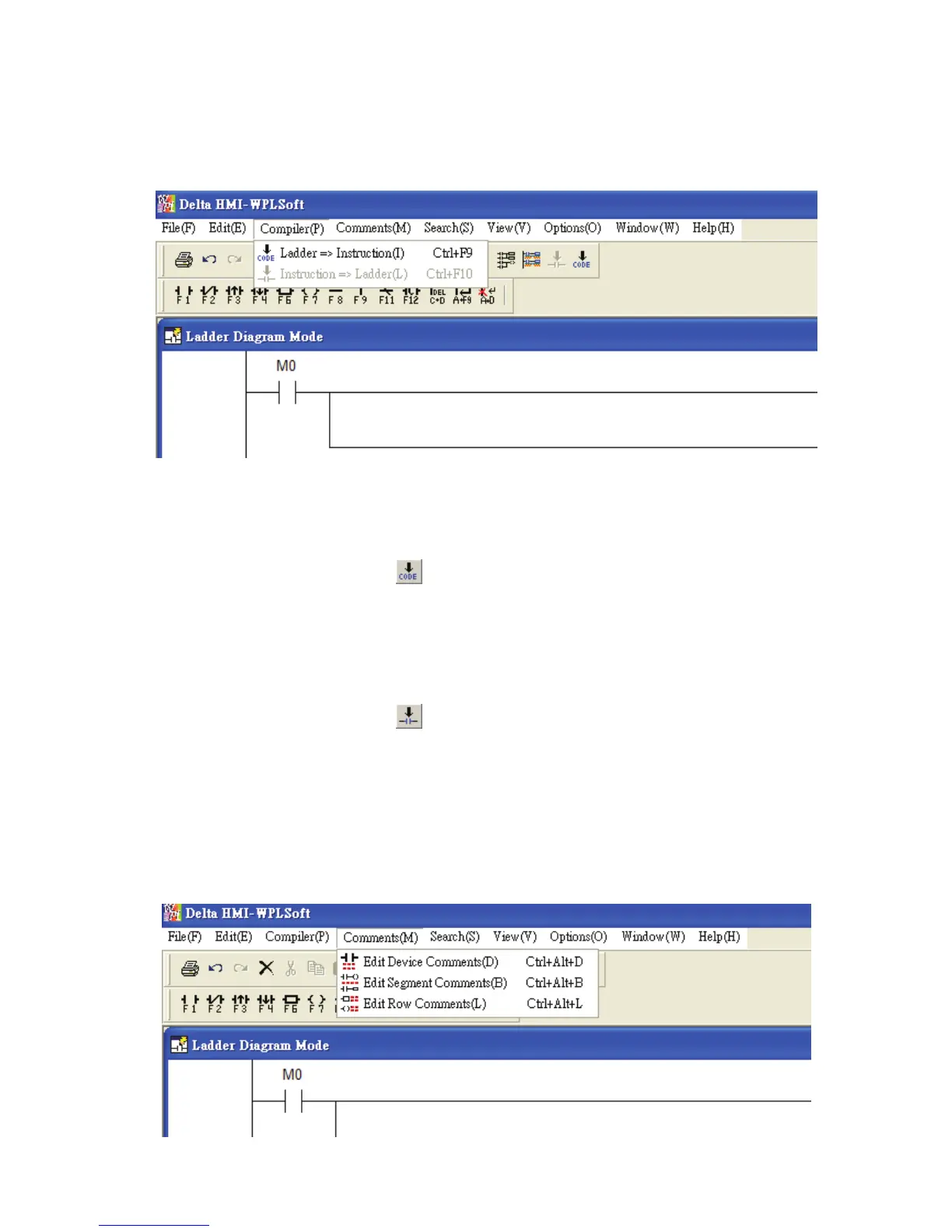

2.3 Compiler
The “Compiler” function is shown as follows, including pull-down menu options:
 Ladder => Instruction(I) Ö Convert ladder diagrams to instruction codes.
 Method 1: Click “Compiler(P)” > “Ladder => Instruction(I)”.
 Method 2: Click the icon on the toolbar.
 Method 3: Use keyboard shortcuts by pressing keys (Ctrl) + (F9).
 Instruction => Ladder(L) Ö Convert instruction codes to ladder diagrams.
 Method 1: Click “Compiler(P)” > “Instruction => Ladder(L)”.
 Method 2: Click the icon
on the toolbar.
 Method 3: Use keyboard shortcuts by pressing keys (Ctrl) + (F10).
2.4 Comments
The “Comments” function is shown as follows, including pull-down menu options:
