Chapter 3 Creating and Editing Programs|DOP-EXIO Series
3-12
Revision March, 2008, Doc. Name: 2007PDD23000014

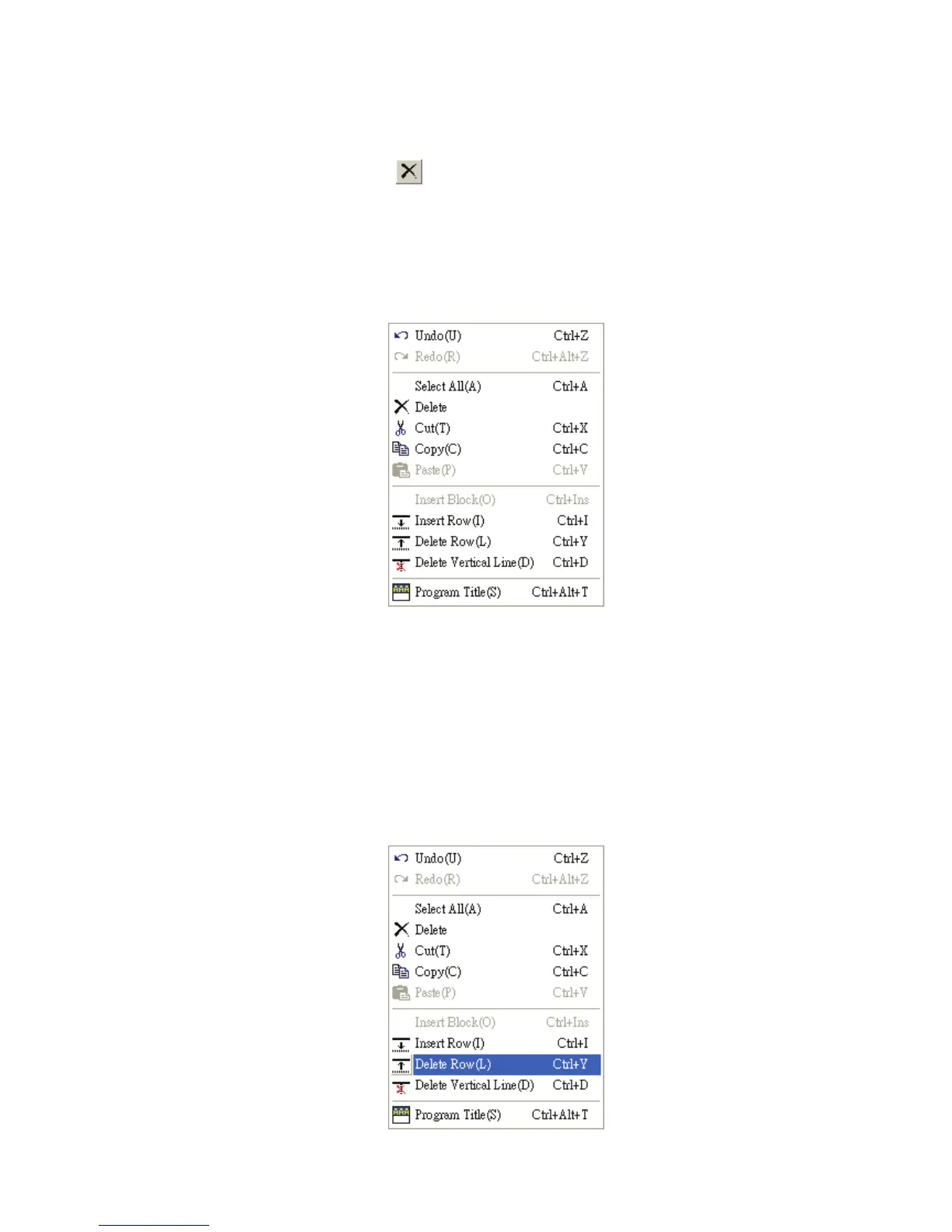

Delete Ö Delete a selection (selected block or data) where the cursor is.
Method 1: Click “Edit(E)” > “Delete”.
Method 2: Click the icon on the toolbar.
Method 3: Use keyboard shortcuts by pressing key (Delete).
Method 4: Move the cursor to the diagram block that the user wants to delete and
right click the mouse to get a pop-up menu and select “Delete” in the
pop-up menu to delete the selected diagram block.
Delete Row(L) Ö Delete a row or several rows in the ladder diagram
Method 1: Click “Edit(E)” > “Delete Row(L)”. Then, the row where the cursor is will
be deleted and the rows below the deleted row will move up.
Method 2: Use keyboard shortcuts by pressing keys (Ctrl) + (Y).
Method 3: Move the cursor to the row that the user wants to delete and right click
the mouse to get a pop-up menu and select “Delete Row(L)” in the
pop-up menu to delete the row.
