Ethernet Communication Module IFD9507
DVP-PLC Application Manual
6
2 Product Profile & Outline

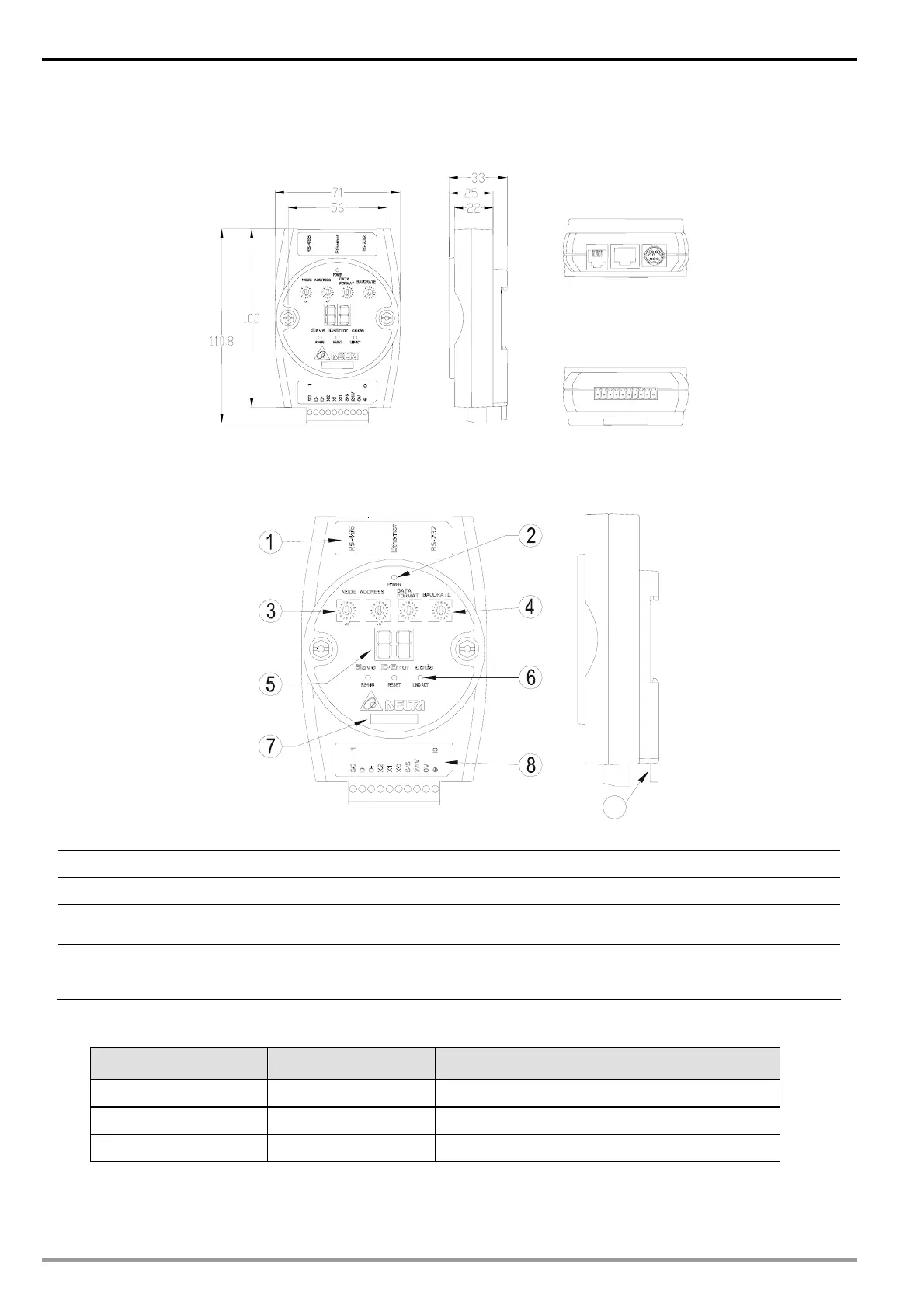

2.1 Dimension
Unit: mm
2.2 Product Profiles
9
1 Communication ports: RS-485, Ethernet, RS-232 6 RS-485 indicator, Reset button, Ethernet indicator
2 Power indicator 7 Module name
3 Address setup rotary switch。
8 RS-485 connector, digital input points, power input
point, earth point
4 Communication format/baud rate setup switch 9 DIN rail connector
5 Message display
2.3 LED Indicators
Name Color Function
POWER Green Power status
RS-485 Green Status of series communication port
LINK/ACT Green Status of network communication
