Ethernet Communication Module IFD9507
DVP-PLC Application Manual
7

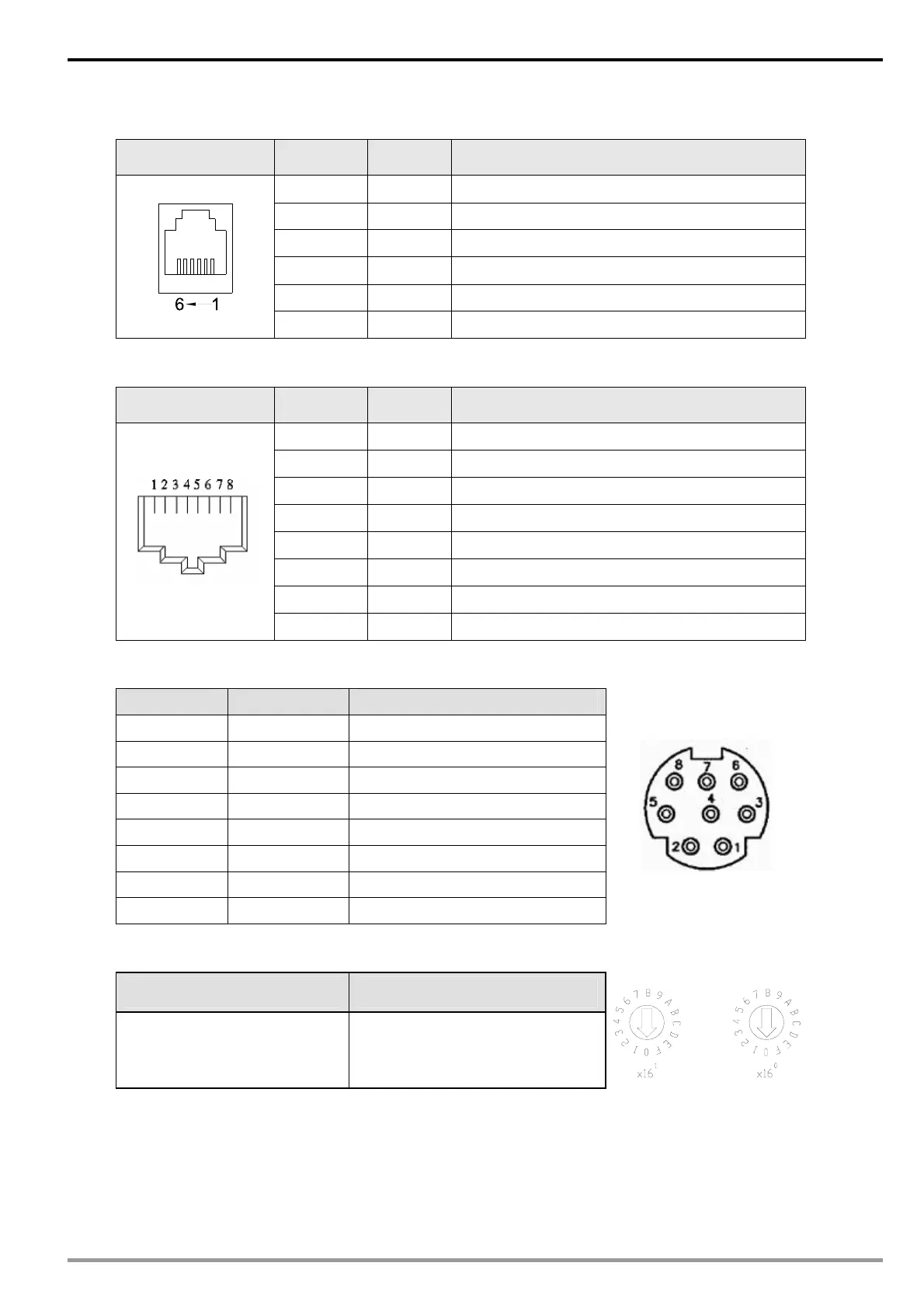

2.4 RJ-11 PIN Definition
RJ-11 sketch PIN. Signal Definition
1 -- N/C
2 -- N/C
3 D+ Positive pole for data
4 D- Negative pole for data
5 GND Reference
6 -- N/C
2.5 RJ-45 PIN Definition
RJ-45 sketch PIN Signal Definition
1 Tx+ Positive pole for data transmission
2 Tx- Negative pole for data transmission
3 Rx+ Positive pole for data receiving
4 -- N/C
5 -- N/C
6 Rx- Negative pole for data receiving
7 -- N/C
8 -- N/C
2.6 RS-232 PIN Definition
PIN Signal Content
1 -- N/C
2 -- N/C
3 -- N/C
4 Rx Reception data
5 Tx Transmission data
6 -- N/C
7 -- N/C
8 GND Ground
2.7 Address Switch
Switch setting Content
01…F7 Valid node address setting
