Fig.
Fig.
G
Fig.
Make sure the jaws are fully seated in the workpiece recess. If the work-
correctly.
This function is for bowl and platter turning where the projection (depth) of the wood blank is
less than 4” (100 mm). If used on longer wood, there is a great danger of wood tearing out and
dislodging from chuck.
Using the standard 2” (50 mm) jaws can help turn bowls up to 12” (310 mm) in diameter.
(Consult specific instructions included for any other jaw set.) Do not exceed 600 RPM with this
operation. Out of balance stock must be turned at the slowest speed possible.
Any recess can be turned between 2” (50 mm) and 2-3/4” (70 mm) in diameter. For smaller lids
and thin platters (not exceeding 6” (150 mm) in diameter) only a shallow recess of around 1/8”
(3 mm) is necessary. It will be a matter of gaining experience as to what combinations and sizes
will best suit this operation.
SPIGOT OPERATION
This function is useful for box, goblet and vase turning, that is, end grain items with a fair
degree of overhang. The instructions here apply to the supplied 2" (50 mm) jaws but the gen-
eral spigot technique is the same for other jaw types.
NOTE: Maximum turning speed and spigot size varies with different jaw types. Consult acces-
sory jaw manual or instruction sheets. approved for use with this
chuck.
With the supplied set of 2" (50 mm) jaws a maximum workpiece size of 4" (100 mm) diameter
(NOT spigot size) by 6" (150 mm) length can be turned. Also, square timber can be turned of
the same length and between 1-1/2" (40 mm) to 2" (50 mm) with the grip of all four jaws into
the wood. you have an adequate grip before operation by vigorously wrench-
ing the workpiece mounted on the chuck. If any loosening occurs, DO NOT PROCEED with
operation. Repeat tightening procedure and re-test grip.
The supplied jaws will grip a round spigot between 1-13/16" (45 mm) to 2-5/16
(65 mm) in diameter or square timber between 1-5/8" (40 mm) to 2" (50 mm) square.
With the 2" (50 mm) add-on jaws removed, the jaw slides will grip either round or square timber
down to 3/16" (4.8 mm) and up to 1" (25.4 mm) round or 11/16" (17 mm) square. The length
should not exceed 6" (150 mm). Small work not greater than 5/16" (8 mm) diameter can be
turned at speeds up to Larger work (up to the diameter capacities just mentioned)
held in the jaw slides should
OPERATION DIAMETER RPM
Woodworm
screw
10" (250 mm) 4" (100 mm) 600
Dovetail
operation
12" (310 mm) 4" (100 mm) 600
Spigot
operation
4" (100 mm) 6" (150 mm) 850
only operation
1" (25.4 mm) (round)
11/16" (17 mm) (square)
6" (150 mm) 850
operation
if smaller
diameter
up to 5/16" (8 mm)* 6" (150 mm)* 1800*
For assistance with your machine, visit our website at www.deltaportercable.com for a list
of service centers or call the DELTA Machinery help line at 1-800-223-7278 (In Canada call
1-800-463-3582).
MAINTENANCE
To reduce the risk of injury, turn unit off and disconnect it from power source
before installing and removing accessories, before adjusting or when making repairs. An
accidental start-up can cause injury.
Periodically blow out all air passages with dry compressed air. All plastic parts should be
cleaned with a soft damp cloth. NEVER use solvents to clean plastic parts. They could
possibly dissolve or otherwise damage the material.

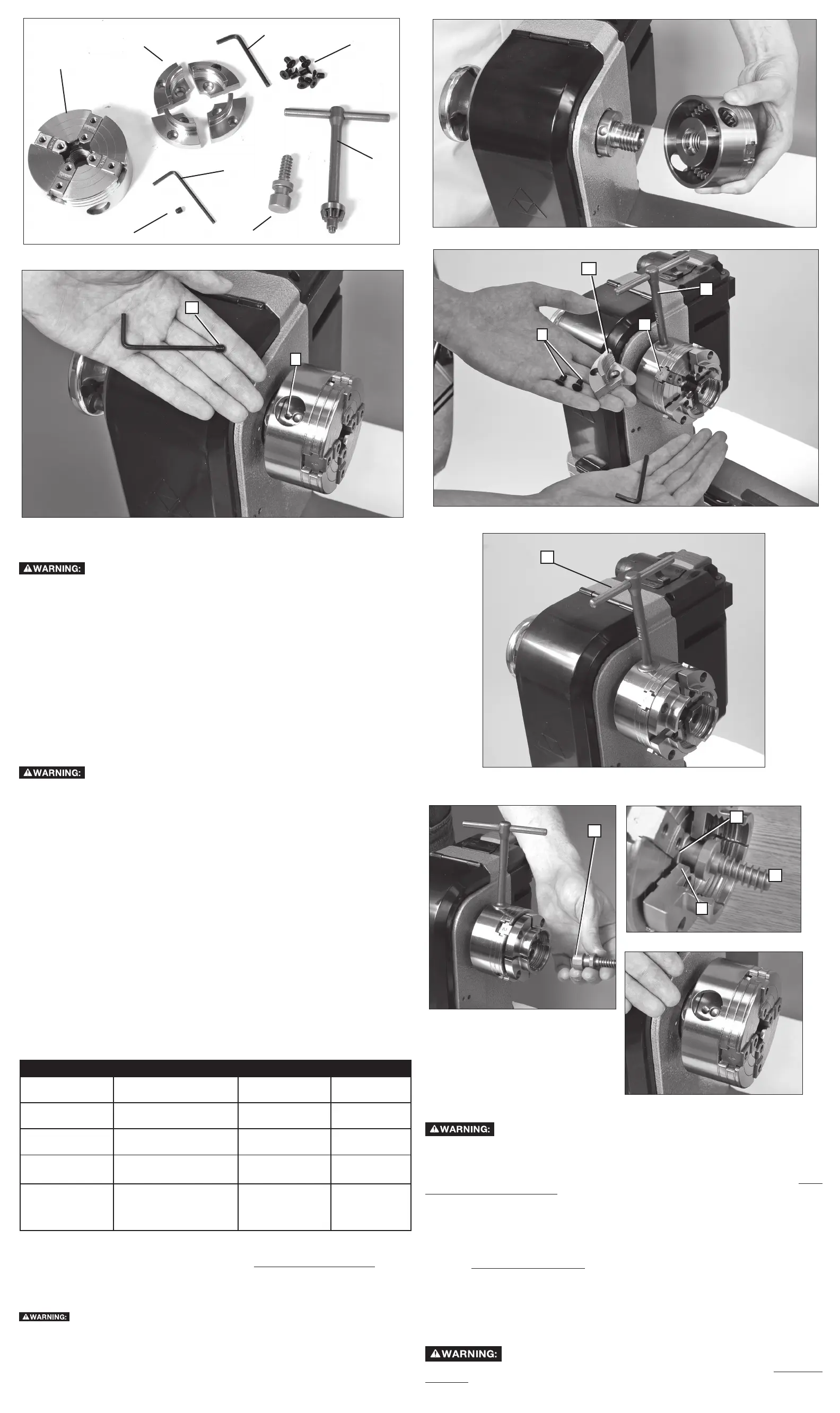

A
D
E
F
G
C
Fig.
Fig.
Fig.
Fig.
I
F
D
Wear certified safety equipment for eye, hearing and respiratory protection
while using compressed air.
SERVICE
Use only identical replacement parts. For a parts list or to order parts, visit our website at
www.
deltaportercableservicenet.com.
You can also order parts from your nearest factory-owned branch,
or by calling our Customer Care Center at 1-800-223-7278 to receive personalized support from
highly-trained technicians.
SERVICE AND REPAIRS
All quality tools will eventually require servicing and/or replacement of parts. For information about
Delta Machinery, its factory-owned branches, or an Authorized Warranty Service Center, visit our
website at www.deltaportercable.com or call our Customer Care Center at 1-800-223-7278. All
repairs made by our service centers are fully guaranteed against defective material and workmanship.
We cannot guarantee repairs made or attempted by others.
You can also write to us for information at Delta Machinery, 4825 Highway 45 North, Jackson,
Tennessee 38305 - Attention: Product Service. Be sure to include all of the information shown on the
nameplate of your tool (model number, type, serial number, etc.)
ACCESSORIES
Since accessories other than those offered by Delta have not been
For safest
operation, only Delta recommended accessories should be used with this product.
Fig.
Y
G
