Page 5
212294 Rev. B
FOR RECESS MOUNT HOUSING: CONTROL BOXES #1 & 8
STEP 7. TEST FOR OPERATION
Test for operation. If unit does not work properly, see Troubleshooting Guide on page 7.
STEP 8. MAKING ADJUSTMENTS
If adjustments are required. Note factory defaults for program shown in Quick Reference Chart. Otherwise, replace the driver
board housing cover as the electronic product is ready for use.
INSTALLATION AND SET UP INSTRUCTIONS
www .specselect.com
DRIVER BOARD QUICK REFERENCE CHART
Function Description
Factory
Default Setting
Function Settings
Sensor Range
Auto Timer
(faucet shut-off)
You can set the distance at which the sensor will detect hands
in the wash area.
A safety mode in the event the sensor continually sees a target.
9” from sensor
45 seconds
3” to 15” from sensor
5, 7, 10, 12, 15, 30, 45, 60, 75, 90
seconds
2.0, 4.0, 6.0, 8.0, 9.9 minutes
Symbol
d
T
R
Rinse Cycle
If this feature is turned to an “xx” hour value, the faucet will turn
on itself after this set time from last use.
- (OFF), 6, 12, 18, 24, 30, 36,
42, 48 hours
r
Rinse Time
This is the amount of time you want the faucet to stay on to move
the water in the line, if the Rinse Cycle is made active.
10 seconds
(once enabled)
10, 20, 30, 40, 50, 60, 90 seconds
2.0, 2.5, 3.0 minutes
Metering Mode
b
Buzzer
Buzzer will annunciate twice upon power up indicating product is
ready to use.
ON
ON, - (OFF)
L
LED
LED will light up indicating low power.
- (OFF)
ON, - (OFF)
M
This feature changes the product into a metering faucet; it will run
the full set amount of time after the user’s hands are first detected.
-- (OFF), 7, 8, 9, 10, 11, 12, 13,
14, 15, 18, 24, 30, 40, 50, 60, 90
seconds
2.0, 2.5, 3.0, 3.5, 4.0 minutes
- (OFF)
- (OFF)

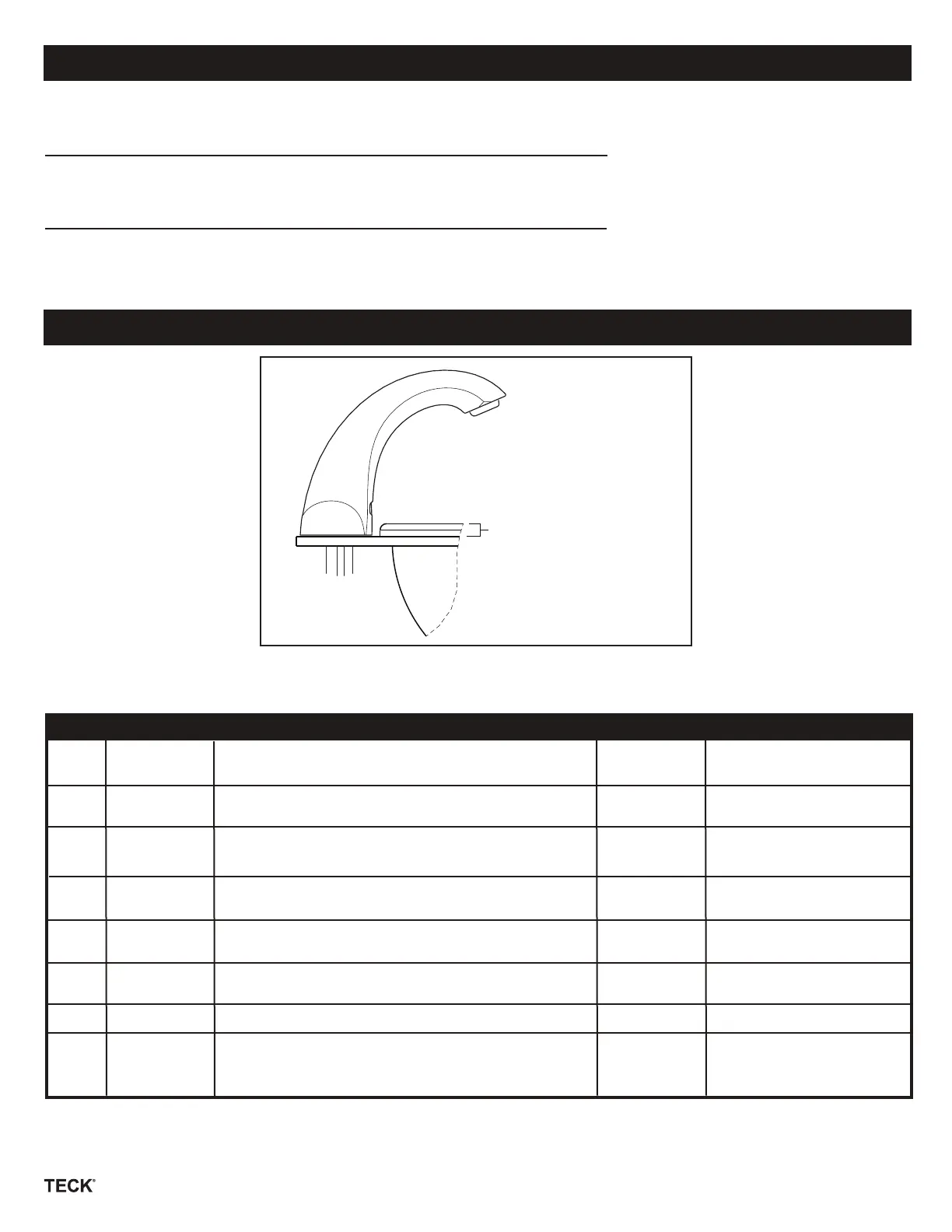

MAXIMUM LIP HEIGHT FOR DECK MOUNTED SINKS
For sensor clearance:
10 mm (0.4”) maximum sink
lip height from deck
