Delta 7052 - Crib Assembly - Section 1, Step 1; Attach Crib Ends to Back Rail

SECTION 1: CRIB ASSEMBLY
STEP 1
PARTS AND TOOLS REQUIRED TO COMPLETE STEP
M. M6x60mm Bolt x6
A. Back Rail
C. Left Crib End D. Right Crib End
M4 Allen Wrench
5
A
B
C
M

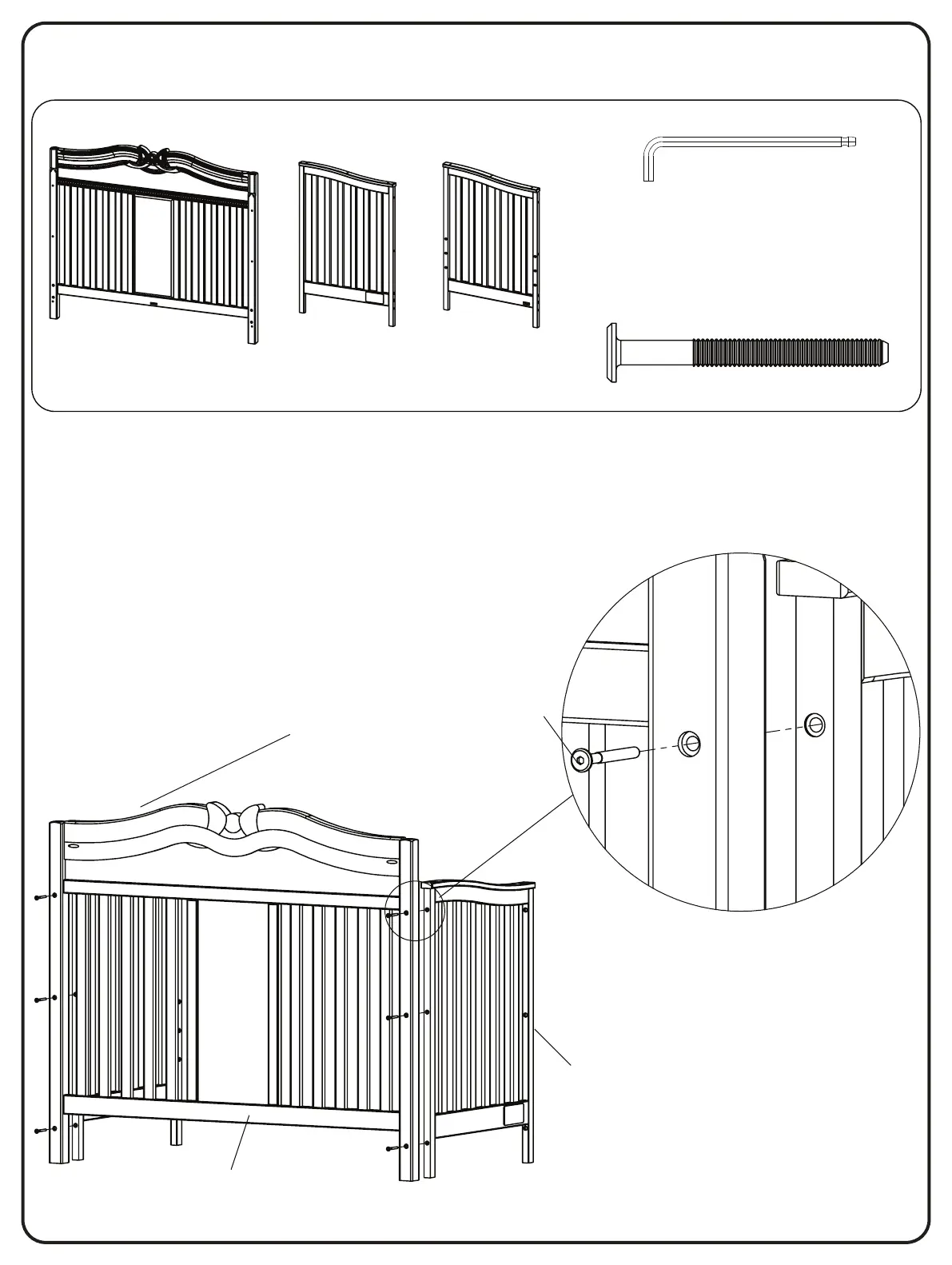

Attach the Left Crib End (Part C) and the Right Crib
End (Part D) to the Back Rail (Part A) using (6)
M6x60mm Bolts (Part M). Tighten with the M4 Allen
wrench supplied.
