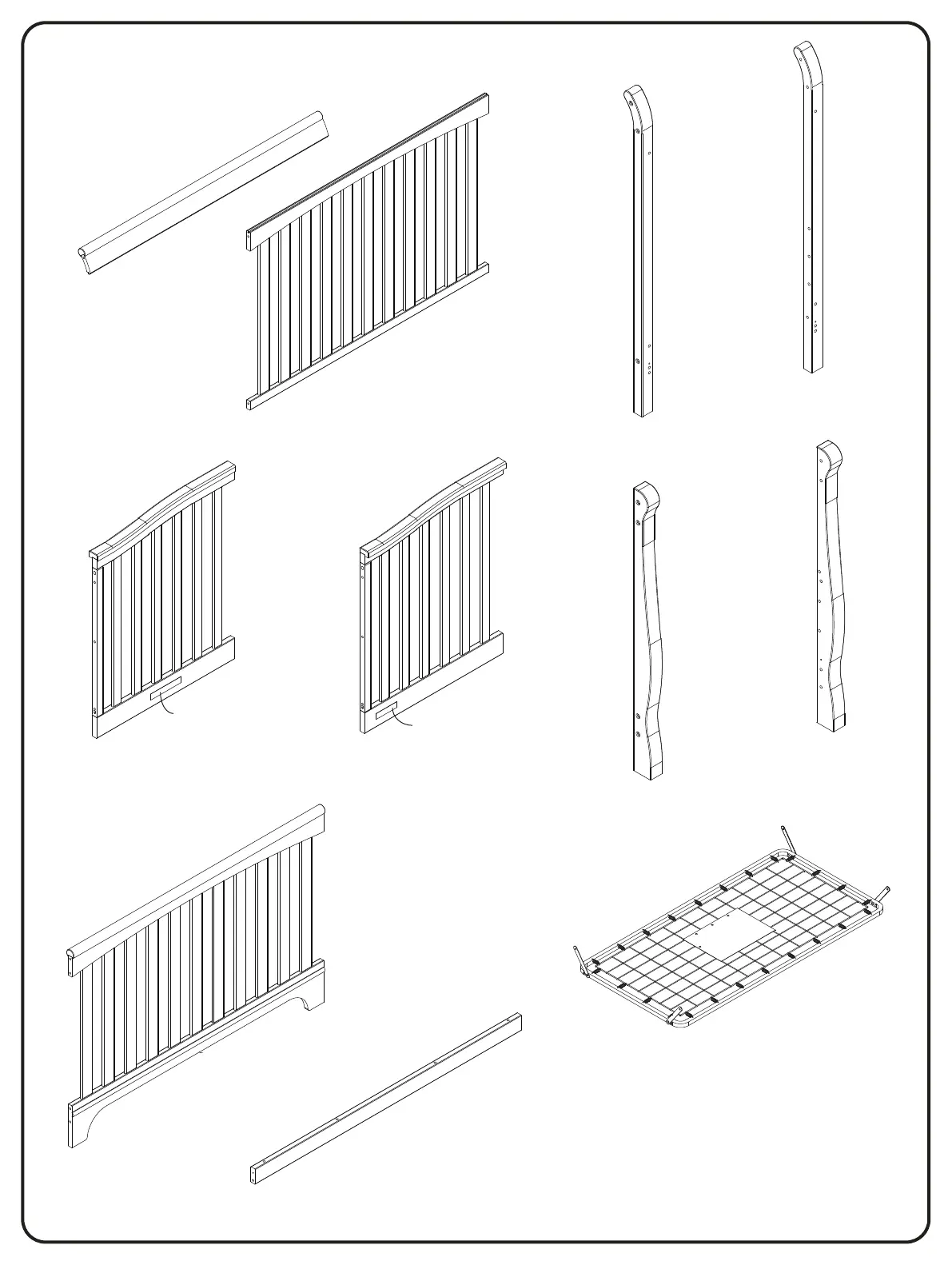

P A R TS: MAKE SURE THAT ALL PRE-ASSEMBLED PARTS ARE TIGHT.

A. Back Rail Top x 1

B. Back Rail Bottom x 1

C. Left Rear Leg x 1

D. Right Rear Leg x 1

E. Left Crib End x 1

J. Front Rail x 1

G. Left Front Leg x 1

H. Right Front Leg x 1

K. Stabilizer Bar x 1

L. Mattress Support x 1

F. Right Crib End x 1

INSIDE

PRODUCT LABEL

OUTSIDE

WARNING LABEL

POUCH ATTACHED TO MATTRESS SUPPORT

- KEEP INSTRUCTIONS IN THIS POUCH

AFTER ASSEMBLY.

WARNINGS RELATED TO THE SAFE USE OF

THIS CRIB ARE PRINTED ON THE POUCH.

Part # 21116

Part # 21117

Part # 21118

Part # 21119

Part # 21120 Part # 21121

Part # 21122

Part # 21123

Part # 21124

Part # 21125

Part # 16945
