7
From Step 1
M4 Allen Wrench
Supplied

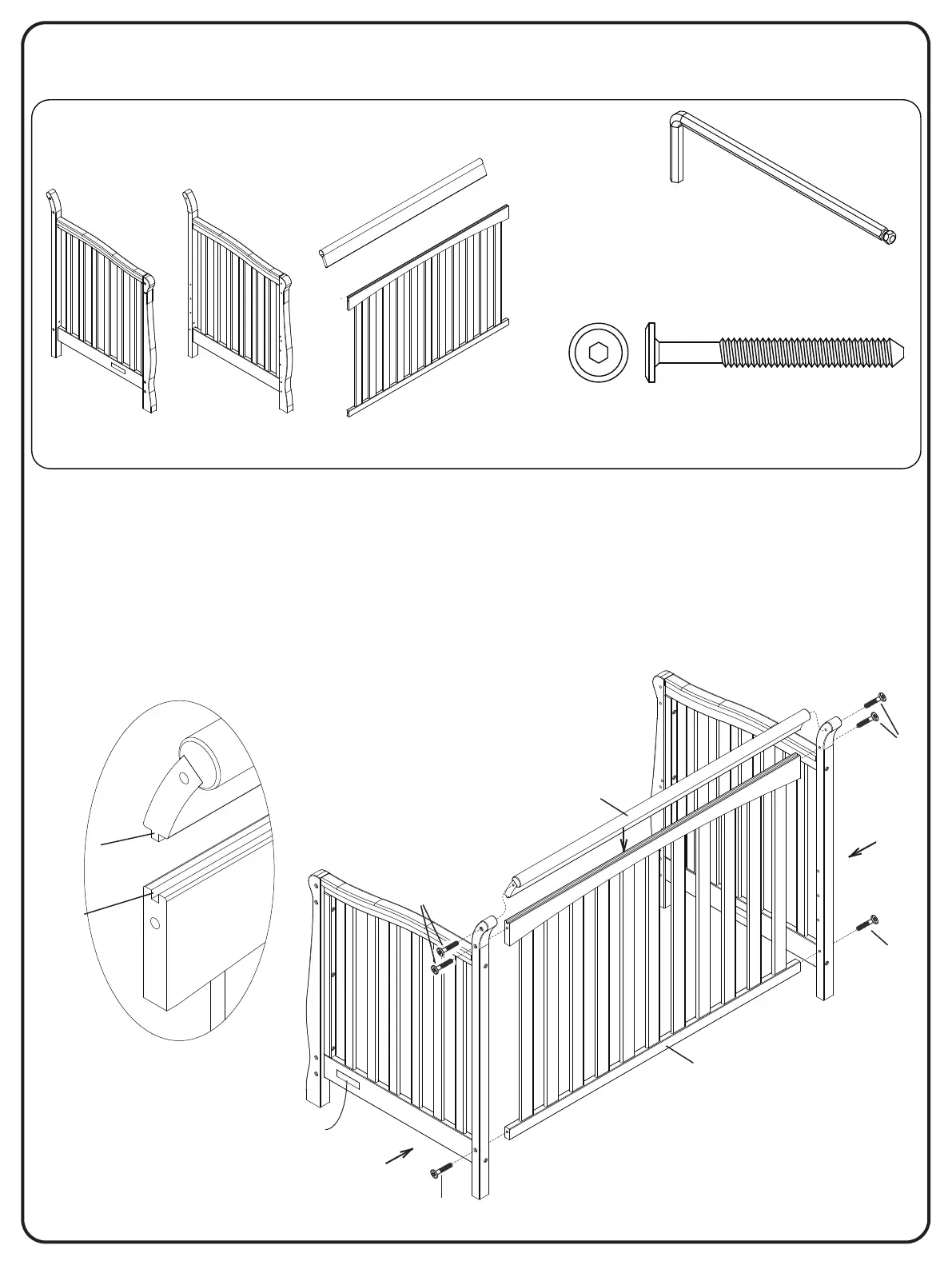

Attach (1) Back Rail Bottom (Part B) to the assemblies from step 1 using (4) M6x55mm Bolts (Part N) .
NOTE : THE SLOT IN PART B MUST FACE UP.
Insert the tenon of the Back Rail Top (Part A) into the slot on top of the Back Rail Bottom (Part B), then insert the
M6x55mm Bolts (Part N), through the legs into the insert nuts onto the Back Rail Top (Part A) as shown.
Tighten with the M4 Allen Wrench.
A
TENON
N
WARNING LABEL
A. Back Rail Top x 1
B. Back Rail Bottom x 1
N. M6 x 55 mm Bolt x 6
B
N
N
N
SLOT
Step 2
Section 1: Crib Assembly
Parts and tools required to complete step.
