DUST PORT TUBE AND
CONNECTOR TO DUST COLLECTOR
BODY
Disconnect machine from power source!
1. Place tube clamp (A) Fig. 7 on the lower support
tube holder (B).
2. Insert the lower tube support (A) into the tube
support holder (B) as shown in Fig. 8.
3. Place a tube clamp (A) onto the lower tube support
as shown in Fig. 9.

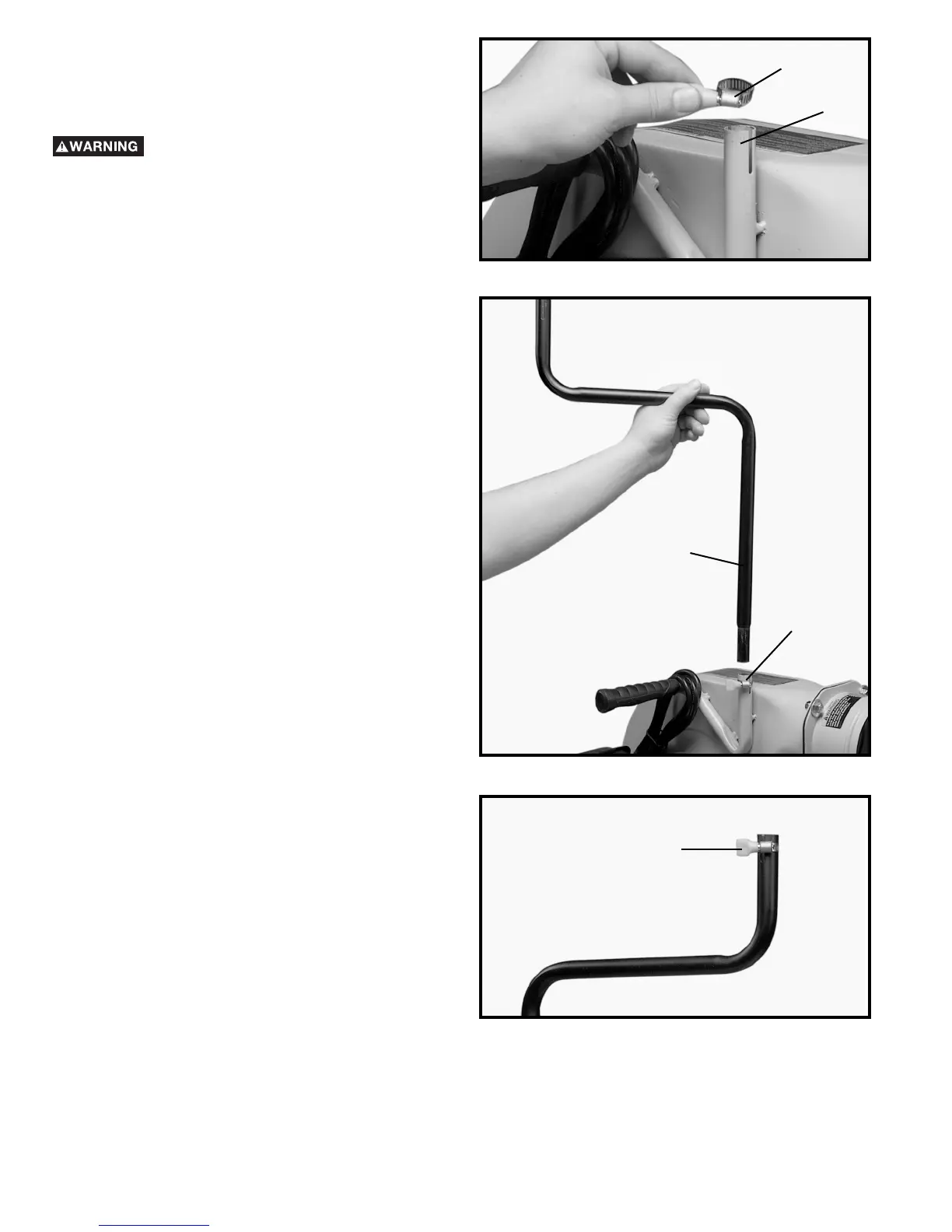

Fig. 7
A
B
Fig. 8
A
B
Fig. 9
A
