Fig. 17
Fig. 18
Fig. 19
Fig. 20

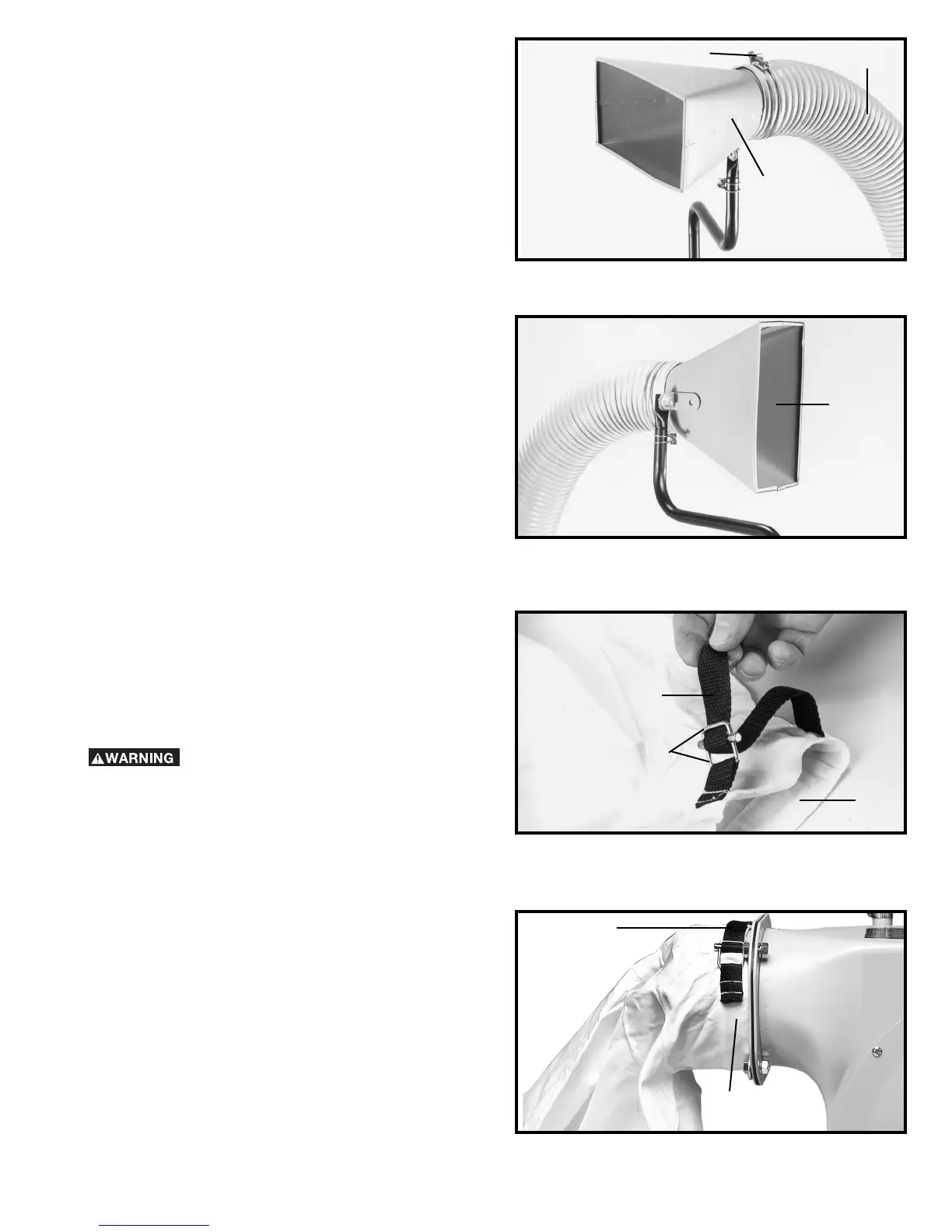

3. Place the remaining hose clamp (A) Fig. 17, around
the other end of hose (B), slide hose (B) onto intake
funnel (C), and tighten hose clamp (A). NOTE: If
desired, intake funnel (C) can be rotated to the
vertical position, as shown in Fig. 18.
DUST BAG TO DUST COLLECTOR
Disconnect machine from power source!
Loosely thread end of dust bag strap (A) through clamp
(B) as shown in Fig. 19. Place open end of dust bag (C)
Fig. 19, over outlet flange (D) Fig. 20 and firmly pull strap
(A) to fasten dust collection bag to outlet flange.
A
B
C
C
A
B
C
D
A
