Delta AS00SCM-A User Manual

AS Series Module Manual
9- 66
_9

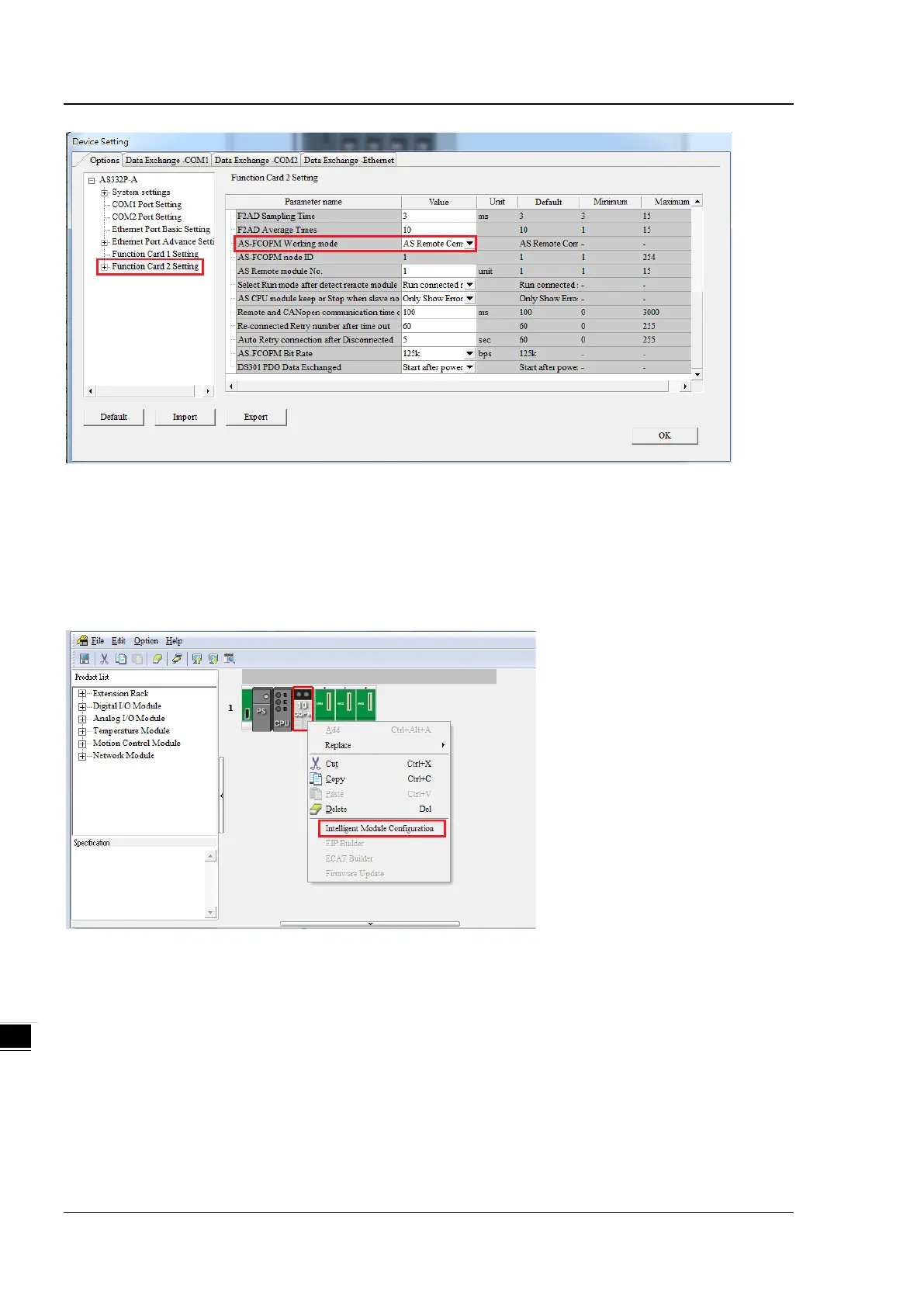

Step 2
Turn the Format 1 of AS00SCM-A to 4 (using CANopen DS301 mode) and turn Format 2 to 7 (setting the bit rate to
1000kbps) and then turn the power off and on again. After that wiring AH10COPM-5A and set the node ID to 2 and
set the bit rate to 1000kbps. Use ISPSoft (V3.04 or later) and HWCONFIG to scan and download the parameters to
AH500. Right click AH10COPM-5A and open Intelligent Module Configuration (CANopen Builder) from the menu.
