Delta AS00SCM-A User Manual

Chapter 11 DeviceNet Master Scanner Module AS01DNET-A
11-79
1
1

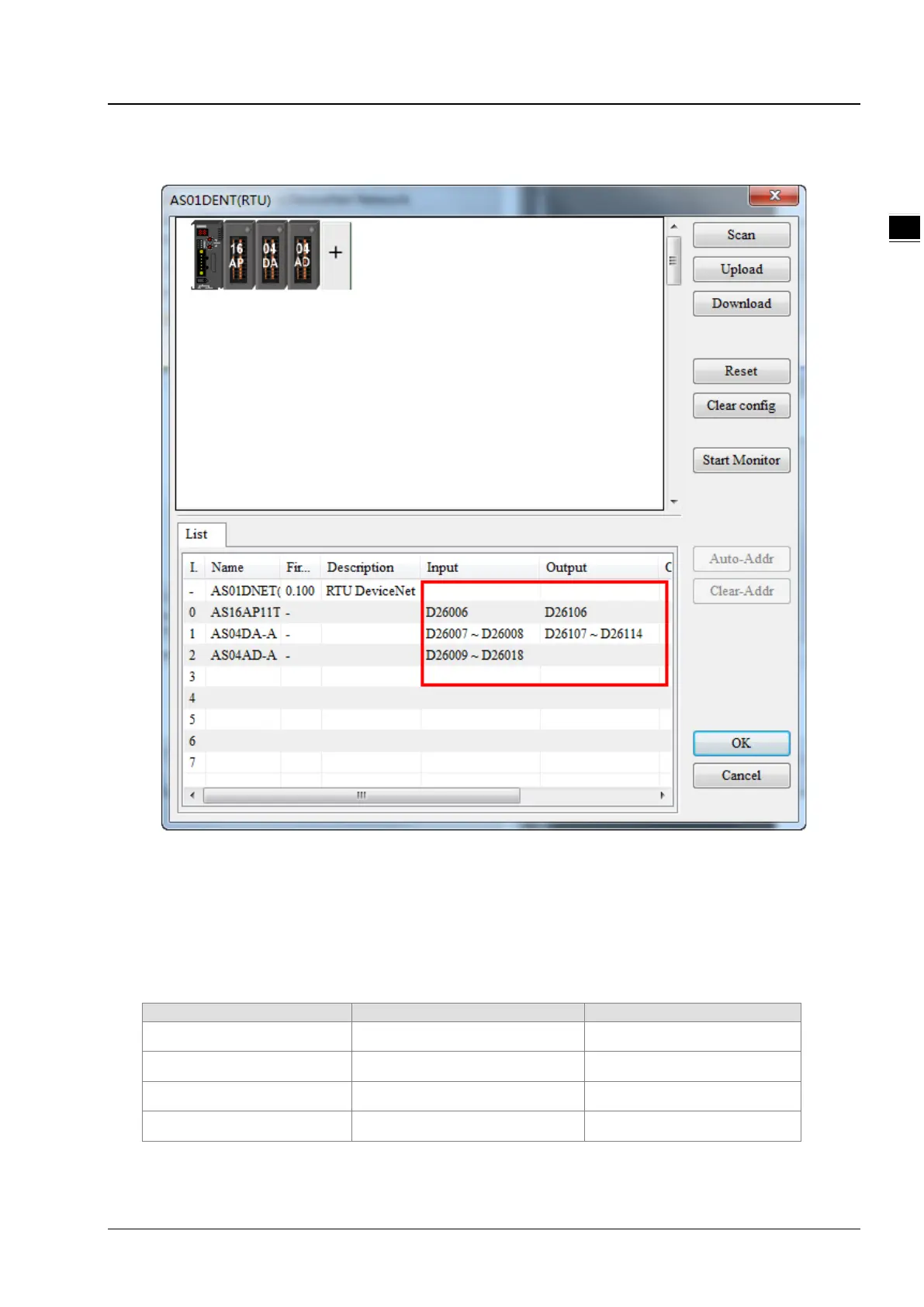

After the master assigns mapping addresses to AS01DNET (RTU), the mapping devices of the modules connected
to the right side of AS01DNET (RTU) are shown as below.
The software automatically assigns mapping addresses of module parameters in the arrangement order of modules
connected to the right side of AS01DNET (RTU) from left to right.
Below is the table of configuration of one master AS01DNET and one slave AS01DNET (RTU) and mapping addresses
that the software automatically assigns to each module. D26005 and D26105 are the control word and status word of
AS01DNET (RTU).The input mapping address and output mapping address of AS16AP are D26006 and D26106
respectively. The input mapping addresses and output mapping addresses of AS04DA are D26007~D26008 and
D26107~D26114 respectively. The input mapping addresses of AS04AD are D26009~D26018.
Auto Assignment
Input
Output
AS01DNET(RTU) D26005 status word D26105 control word
AS16AP D26006 D26106
AS04DA D26007~D26008 D26107~D26114
AS04AD D26009~D26018
The input and output mapping addresses of AS01DNET (RTU) are D26005~D26018 and D26105~D26114.
