Delta AS218TX-A User Manual

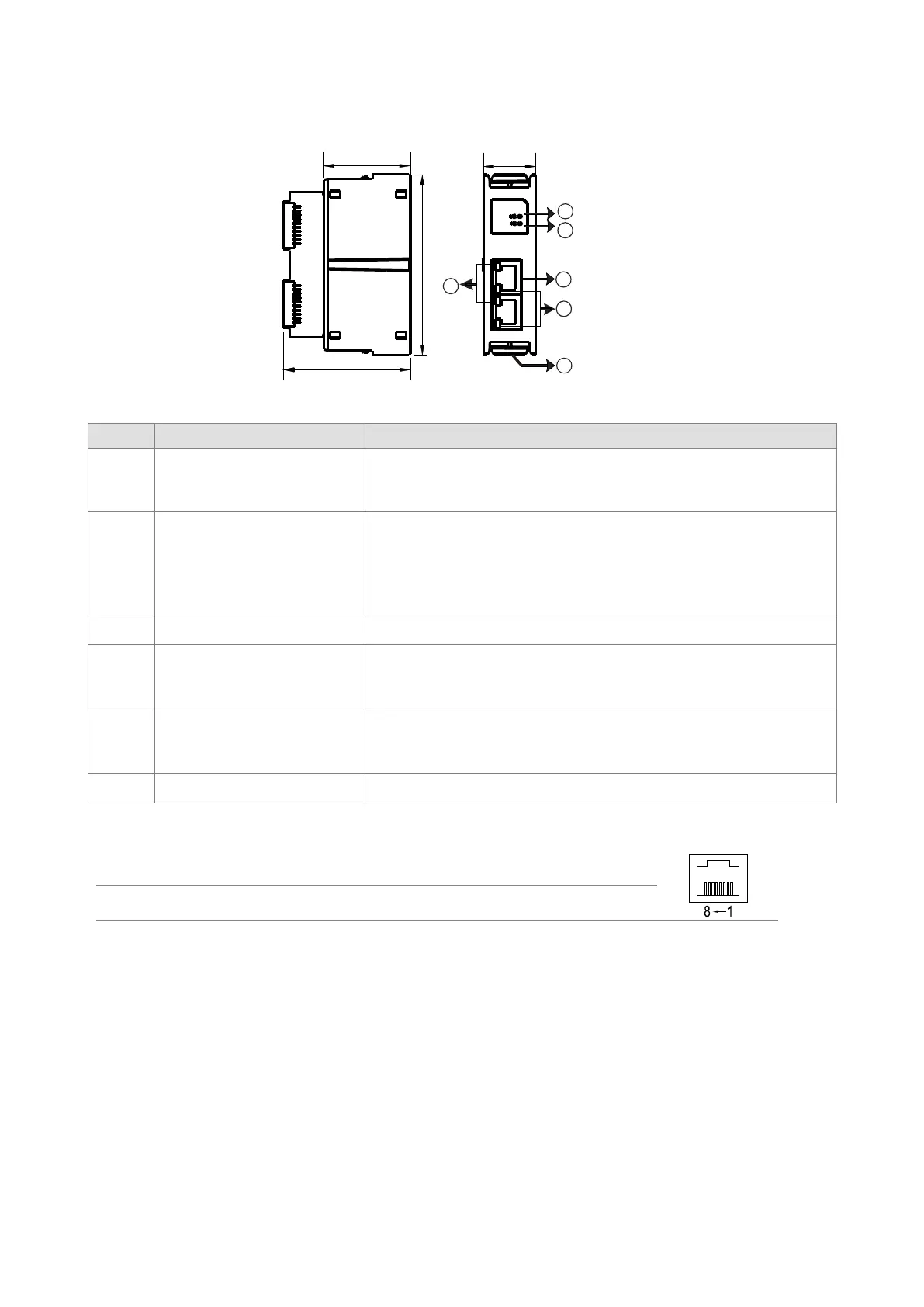

 AS-FPFN02
1
88
42
61.5
25.2
2
3
4
5
6
Unit: mm
Number
Name
Description
1 SF indicator
System Fault Indicator
Red light ON: an error occurs in the topology or RTU module
OFF: no system error
2 BF indicator
Bus Fault Indicator
Red light ON: no PROFINET connection
Red light BLINKING: the connection is working fine but the communication
with PROFINET Controller is NOT normal.
OFF: the connection with PN-Controller is working fine.
3 RJ-45 port X1/X2 Uses for network connections
4 LINK indicator X1/X2
Indicates the status of Ethernet connection
Green light ON: a network connection is established
OFF: a network connection is not established
5 ACT indicator X1/X2
Indicates the status of Ethernet communication
Orange BLINKING: data transmission
OFF: no data transmission
6 Clip ring Secures AS series
RJ-45 Pin Definition
1 TX+ 2 TX- 3 RX+ 4 N/C
5 N/C 6 RX- 7 N/C 8 N/C
