8.1.2.4
Re
marks and Comments

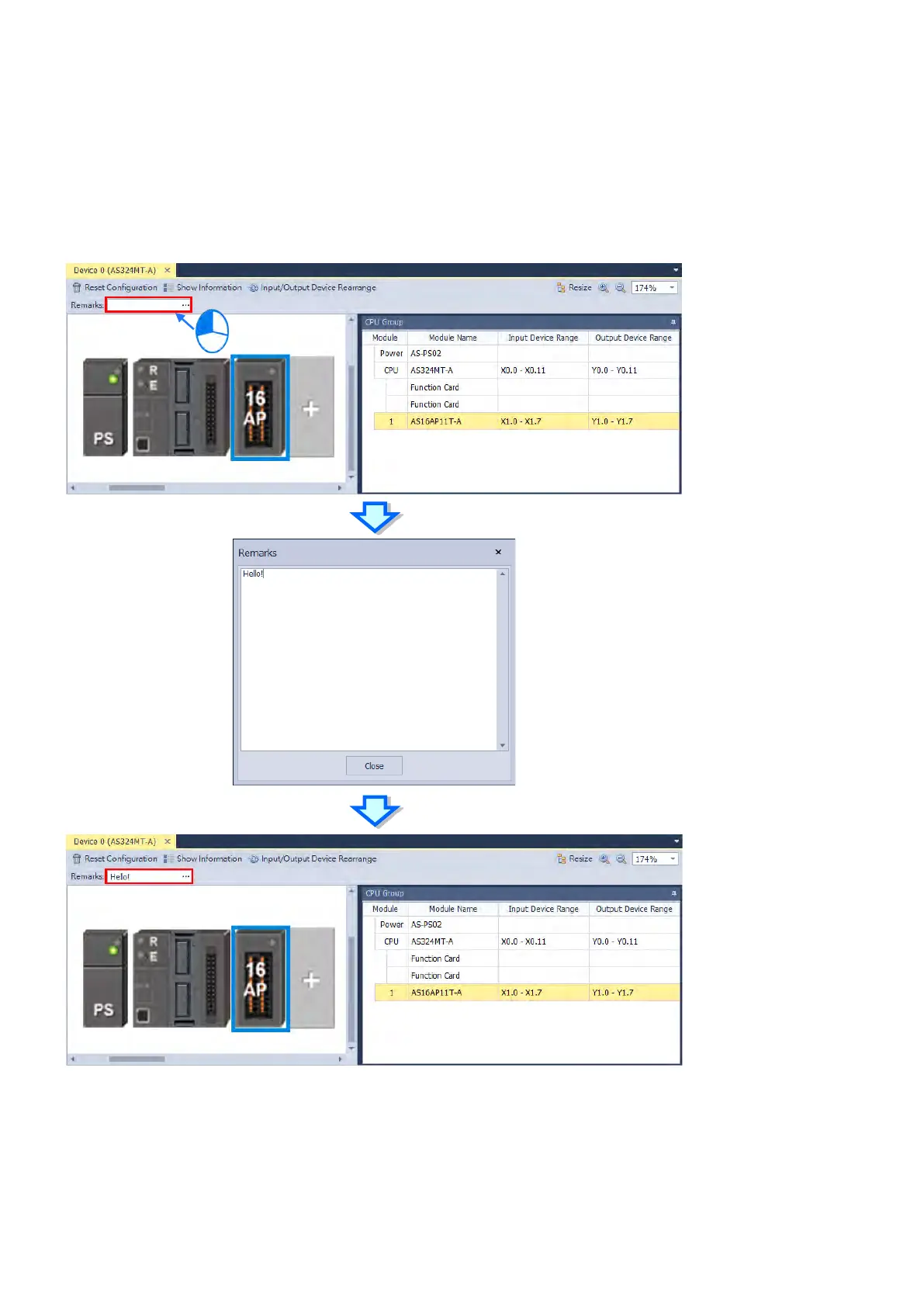

Remarks for t
he project
Click
Remarks
field on the top of
the
Hardware Configu
ration
area and a blank box ap
pears for you t
o leave
remarks for the project.
After typing the remarks, press
Enter
on the keyboar
d or click
Close
to save the r
emarks.
