Delta AS218TX-A User Manual

Number
Name
Description
2
Model name
Shows the model name of the CPU module.
3
Run/Stop
RUN: execute the programs
STOP: stop the programs
USB port
Mini USB communication port
SD card slot
Provides an interface for an SD card
VR0/VR1
VR0: use the flag SM166 to activate the values in SR166
VR1: use the flag SM167 to activate the values in SR167
4
Input/Output LED
indicator
If there is an input signal, the input LED indicator is ON.
If there is an output signal, the output LED indicator is ON.
5
Ethernet port
Provides an interface for a n Ethernet communication
6
COM1/COM2
Provides an interface for RS-485 communication
7
DIN rail clip
Secures the DIN rail
8
CAN port
Provides an interface for CAN communication
9
Removable terminal
blocks
For wiring the input and output
10 Grounding clip For grounding
11
Power supply
For power supply
12
Label
Nameplate
13
External module port
Connects the modules

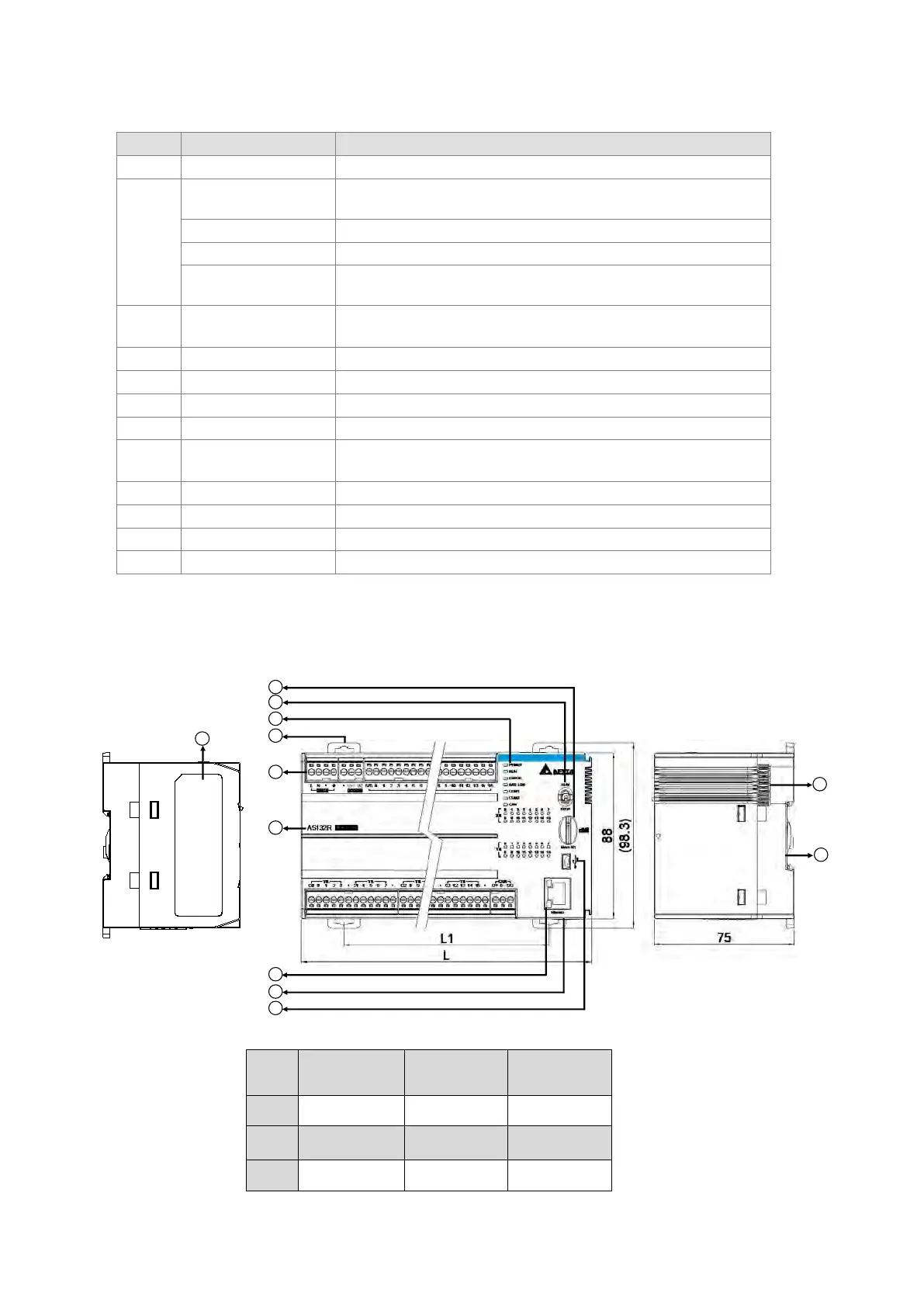

 AS100 Series (AS132T-A/AS132P-A/AS132R-A/AS148T-A/AS148P-A/AS148R-A/AS164T-A/
AS164P-A/AS164R-A)
Unit: mm
Model
name
AS132R/T/P-A AS148R/T/P-A AS164R/T/P-A
L 156 207 249.5
Model
name
AS132R/T/P-A AS148R/T/P-A AS164R/T/P-A
L1 110.3 161.3 203.8
1
