Vibration resistance Without damage: 10 ~ 55Hz, amplitude=0.75mm, 3 axes for 2 hours

Shock resistance Without damage: drop 4 times, 300m/s

, 3 edges, 6 surfaces and 1 corner

Ambient temperature 0 ~ 50

Storage temperature -20 ~ +65

Altitude 2,000m or less

Ambient humidity 35 ~ 85% RH (non-condensing)

Pollution degree Degree 2

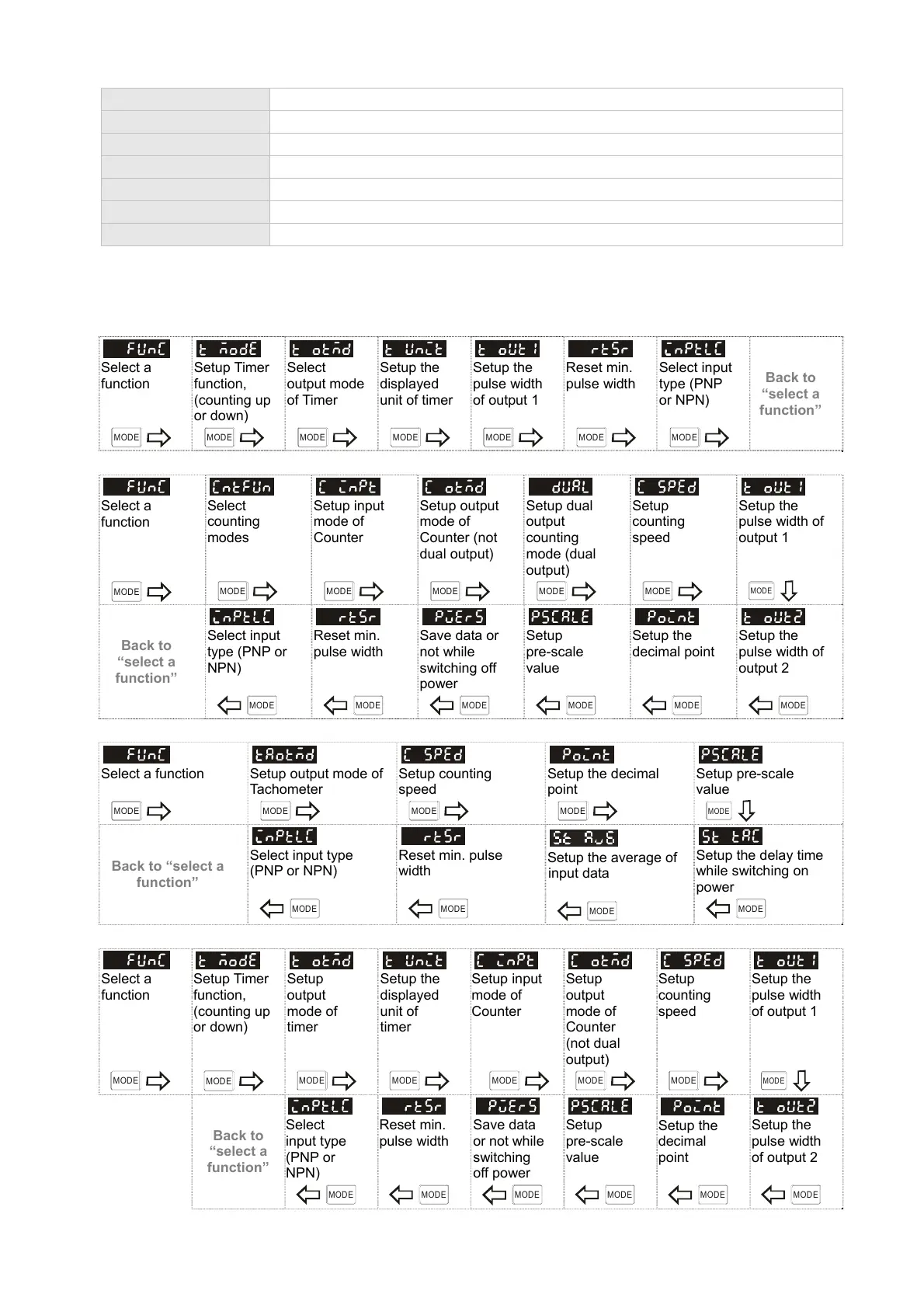

 Parameters in Configuration Mode

 Timer

Select a

function

MODE

Setup Timer

function,

(counting up

or down)

MODE

Select

output mode

of Timer

MODE

Setup the

displayed

unit of timer

MODE

Setup the

pulse width

of output 1

MODE

Reset min.

pulse width

MODE

Select input

type (PNP

or NPN)

MODE

Back to

“select a

function”

 Counter

Select a

function

MODE

Select

counting

modes

MODE

Setup input

mode of

Counter

MODE

Setup output

mode of

Counter (not

dual output)

MODE

Setup dual

output

counting

mode (dual

output)

MODE

Setup

counting

speed

MODE

Setup the

pulse width of

output 1

MODE

Back to

“select a

function”

Select input

type (PNP or

NPN)

MODE

Reset min.

pulse width

MODE

Save data or

not while

switching off

power

MODE

Setup

pre-scale

value

MODE

Setup the

decimal point

MODE

Setup the

pulse width of

output 2

MODE

 Tachometer

Select a function

MODE

Setup output mode of

Tachometer

MODE

Setup counting

speed

MODE

Setup the decimal

point

MODE

Setup pre-scale

value

MODE

Back to “select a

function”

Select input type

(PNP or NPN)

MODE

Reset min. pulse

width

MODE

Setup the average of

input data

MODE

Setup the delay time

while switching on

power

MODE

 Timer + Counter

Select a

function

MODE

Setup Timer

function,

(counting up

or down)

MODE

Setup

output

mode of

timer

MODE

Setup the

displayed

unit of

timer

MODE

Setup input

mode of

Counter

MODE

Setup

output

mode of

Counter

(not dual

output)

MODE

Setup

counting

speed

MODE

Setup the

pulse width

of output 1

MODE

Back to

“select a

function”

Select

input type

(PNP or

NPN)

MODE

Reset min.

pulse width

MODE

Save data

or not while

switching

off power

MODE

Setup

pre-scale

value

MODE

Setup the

decimal

point

MODE

Setup the

pulse width

of output 2

MODE
