Delta DOP-103BQ User Manual

Software Interface Conversion DOP-100 Series Transition Manual
2-4 February, 2019
2

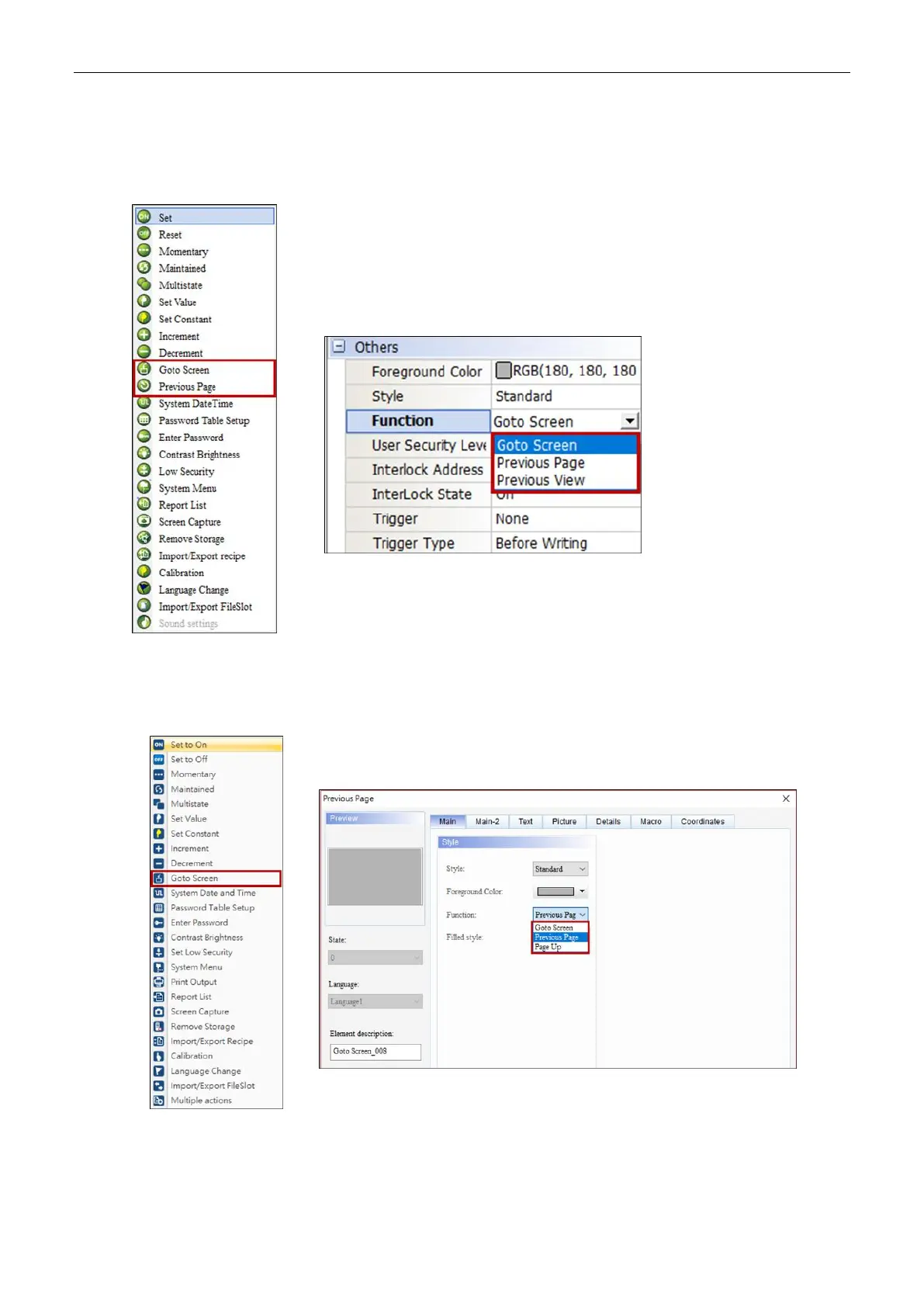

2.1.2 Previous page
 DOP-B has two separate buttons for [Goto Screen] and [Previous Page].
 For DOP-B, you can only change the element function on the property window.
 DOP-100 integrates [Goto Screen] and [Previous Page] into one button as [Goto Screen].
 For DOP-100, you can change the element function on the property window, as well as
double-clicking the button element to go to the property setting window.

Delta DOP-103BQ Specifications

General

Resolution	480 x 272 pixels
Display Type	TFT LCD
Touch Panel	Resistive
Power Supply	24 VDC
Display Size	4.3 inch
COM ports	RS-232 x 1, RS-485 x 1
Ethernet	10/100 Mbps
USB Host	USB 2.0 x 1
USB Client	USB 2.0 x 1
Memory	128 MB Flash
