Delta DOP-A80THTD1 - Power Line Installation

English
-
4

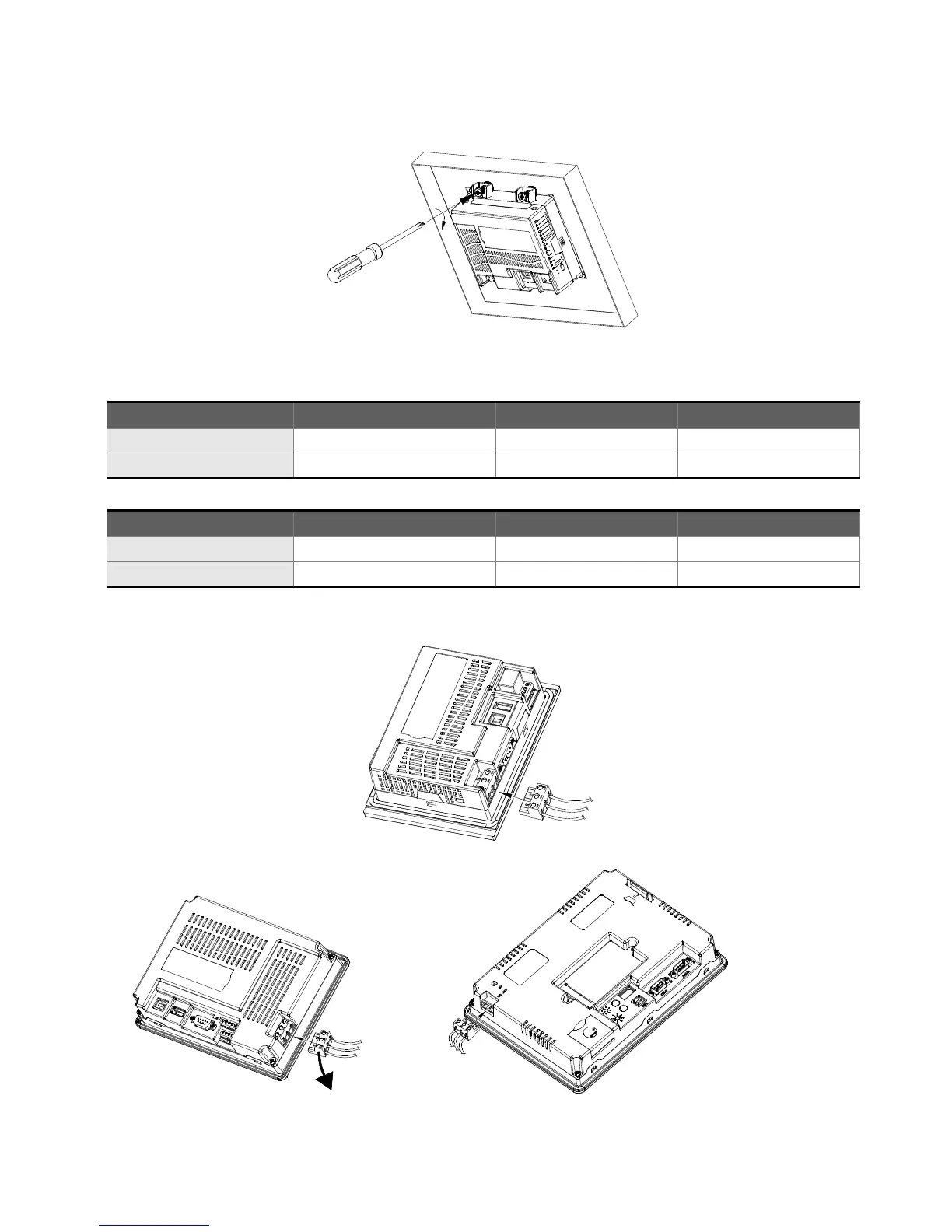

Step 3:
Turn the screw with less than torque 0.7N-M to avoid damage to plastic box. Torque:
6.17lb-inch(0.7N-M)
Power Line Installation
The specifications for power terminal wiring are shown in the table below:
Type Wire Gauge (AWG) Stripped length Torque
Solid 28~12 7~8 mm 5 kg-cm (4.3 lb-in)
Stranded 28~12 7~8 mm 5 kg-cm (4.3 lb-in)
The specifications for communication terminal wiring are shown in the table below (AS Series only):
Type Wire Gauge (AWG) Stripped length Torque
Solid
30 ~ 16 5 ~ 6 mm 2 kg-cm (1.7 lb-in)
Stranded
30 ~ 16 5 ~ 6 mm 2 kg-cm (1.7 lb-in)
Be sure to plug power line into HMI according to following arrow direction.
DOP
-
A80THTD1
DOP-AE80THTD
DOP-A(E)10THTD1
DOP
-
AS35THTD
DOP-AS38BSTD
DOP-AS57BSTD
