9- ENG
D27918

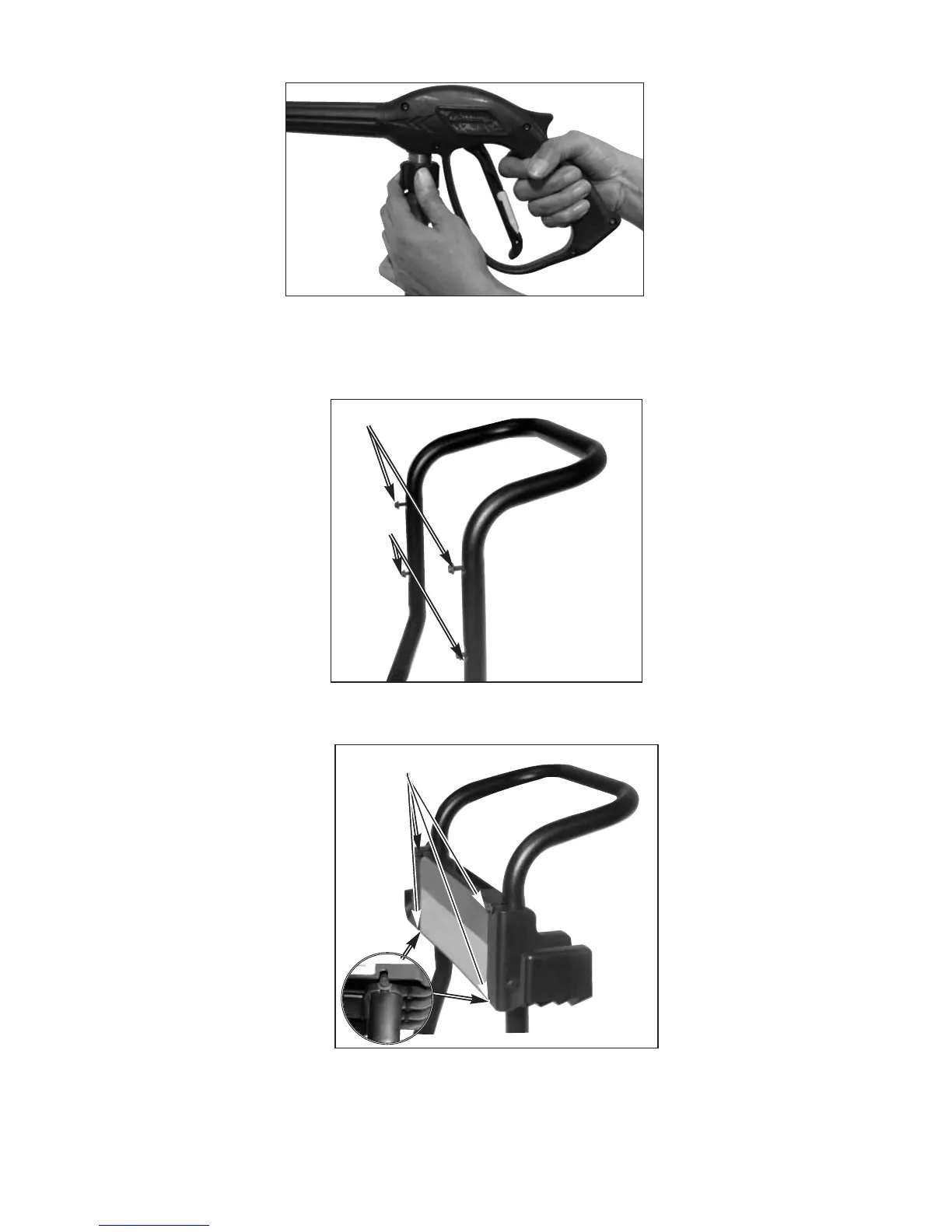

c. Place grooves in accessories panel assembly onto screws and slide
panel assembly into place.
d. Place screws (removed earlier) into the top holes and secure accessories
panel assembly to handles. Do not overtighten.
Screws
4. Attach high pressure hose to gun. Tighten securely.
5. To Assemble Accessories Panel
a. Remove top screws on handle assembly.
b. Loosen bottom screws on handle assembly.
Loosen
Remove
To Next Page
