Thank you for choosing Delta DVP series PLC. DVP04TC-S is able to receive 4 points of external
thermocouple temperature sensors and convert them into 14-point digital signals. Besides, through
FROM/TO instructions in DVP Slim series MPU program, the data in the module can be read and written.
There are many 16-bit control registers (CR) in DVP04TC-S. The power unit is separate from it and is
small in size and easy to install.
EN DVP04TC-S is an OPEN-TYPE device. It should be installed in a control cabinet free of airborne
dust, humidity, electric shock and vibration. To prevent non-maintenance staff from operating
DVP04TC-S, or to prevent an accident from damaging DVP04TC-S, the control cabinet in which
DVP04TC-S is installed should be equipped with a safeguard. For example, the control cabinet in
which DVP04TC-S is installed can be unlocked with a special tool or key.
EN DO NOT connect AC power to any of I/O terminals, otherwise serious damage may occur. Please
check all wiring again before DVP04TC-S is powered up. After DVP04TC-S is disconnected, Do
NOT touch any terminals in a minute. Make sure that the ground terminal
on DVP04TC-S is
correctly grounded in order to prevent electromagnetic interference.
FR DVP04TC-S est un module OUVERT. Il doit être installé que dans une enceinte protectrice (boitier,
armoire, etc.) saine, dépourvue de poussière, d’humidité, de vibrations et hors d’atteinte des chocs
électriques. La protection doit éviter que les personnes non habilitées à la maintenance puissent
accéder à l’appareil (par exemple, une clé ou un outil doivent être nécessaire pour ouvrir a
protection).
FR Ne pas appliquer la tension secteur sur les bornes d’entrées/Sorties, ou l’appareil DVP04TC-S
pourra être endommagé. Merci de vérifier encore une fois le câblage avant la mise sous tension du
DVP04TC-S. Lors de la déconnection de l’appareil, ne pas toucher les connecteurs dans la minute
suivante. Vérifier que la terre est bien reliée au connecteur de terre
afin d’éviter toute
interférence électromagnétique.

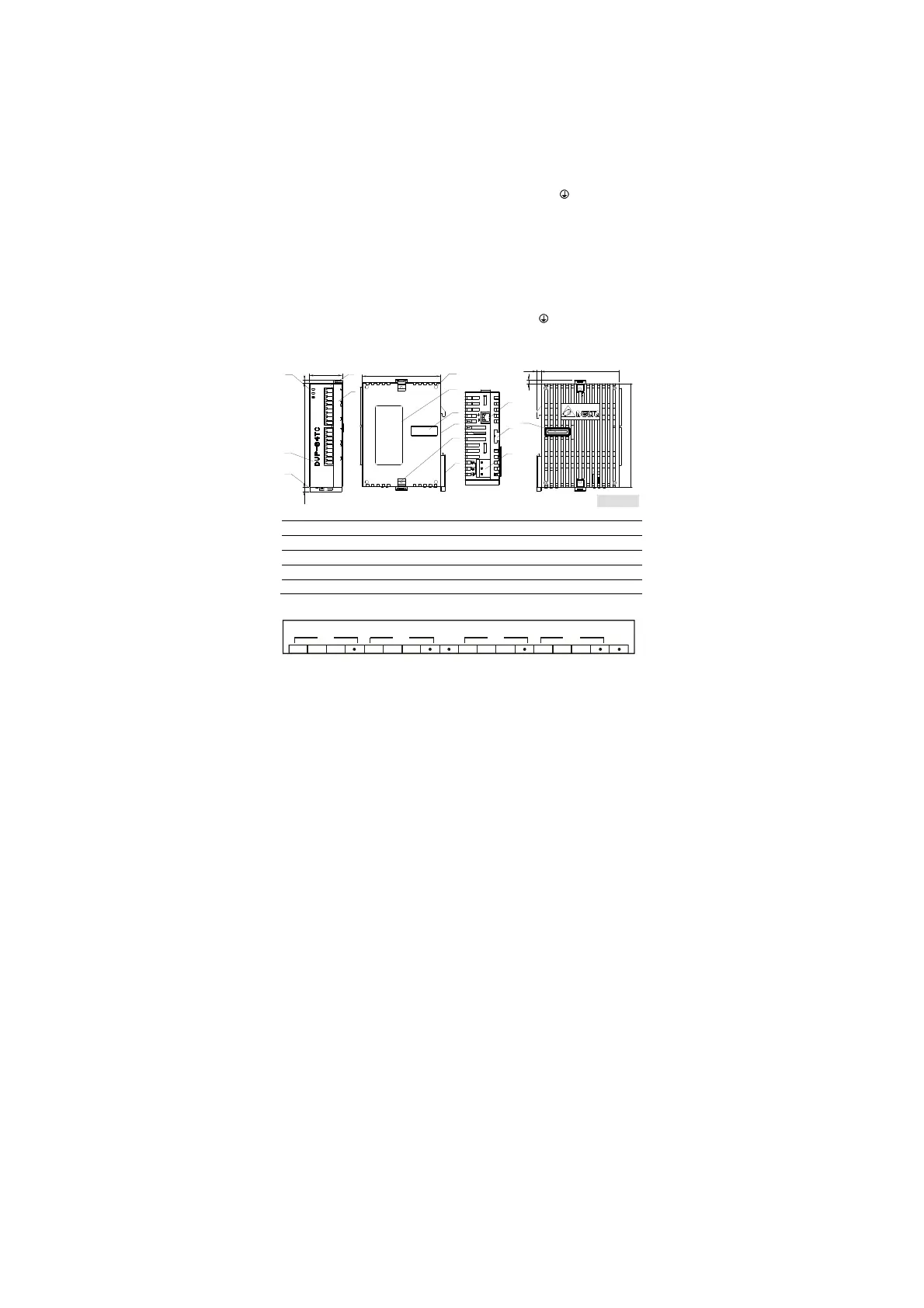

Product Profile & Dimension
60.0
6
7
8
9
3
10
11
12
13
90.00
3.00
3.4
60.0
14
90.00
4.00
3.00
25.20
1
2
3
4
5
L+
L-
SLD
C
H
1
C
H
2
C
H
3
C
H
4
●
L+
L-
L+
L-
L+
L-
SLD
SLD
SLD
●
●
●
●
●
[ Figure 1 ]
Unit: mm
1. Status indicator (POWER, RUN and ERROR) 2. Model name
3. DIN rail clip 4. I/O terminals 5. I/O point indicator
6. Mounting holes 7. Specification label 8. I/O module connection port
9. I/O module clip 10. DIN rail (35mm) 11. RS-485 communication port
12. I/O module clip 13. DC power input 14. I/O module connection port
I/O Terminal Layout
L-L+L-L+
DVP04TC-S
SLD L+SLDL-L+ SLDL-SLD
CH1 Ch2 Ch3 Ch4
