EN
DVP06XA-S/DVP06XA-S2 is an OPEN-TYPE device. It should be installed in a control cabinet free of airborne dust, humidity, electric shock
and vibration. To prevent non-maintenance staff from operating DVP06XA-S/DVP06XA-S2, or to prevent an accident from damaging
DVP06XA-S/DVP06XA-S2, the control cabinet in which DVP06XA-S/DVP06XA-S2 is installed should be equipped with a safeguard. For
example, the control cabinet in which DVP06XA-S/DVP06XA-S2 is installed can be unlocked with a special tool or key.
EN
DO NOT connect AC power to any of I/O terminals, otherwise serious damage may occur. Please check all wiring again before
DVP06XA-S/DVP06XA-S2 is powered up. After DVP06XA-S/DVP06XA-S2 is disconnected, Do NOT touch any terminals in a minute. Make
sure that the ground terminal on DVP06XA-S/DVP06XA-S2 is correctly grounded in order to prevent electromagnetic interference.
FR
DVP06XA-S/DVP06XA-S2 est un module OUVERT. Il doit être installé que dans une enceinte protectrice (boitier, armoire, etc.) saine,
dépourvue de poussière, d’humidité, de vibrations et hors d’atteinte des chocs électriques. La protection doit éviter que les personnes non
habilitées à la maintenance puissent accéder à l’appareil (par exemple, une clé ou un outil doivent être nécessaire pour ouvrir a protection).
FR
Ne pas appliquer la tension secteur sur les bornes d’entrées/Sorties, ou l’appareil DVP06XA-S/DVP06XA-S2 pourra être endommagé. Merci
de vérifier encore une fois le câblage avant la mise sous tension du DVP06XA-S/DVP06XA-S2. Lors de la déconnection de l’appareil, ne pas
toucher les connecteurs dans la minute suivante. Vérifier que la terre est bien reliée au connecteur de terre
afin d’éviter toute
interférence électromagnétique.
Introduction
Model Explanation & Peripherals
Thank you for choosing the Delta DVP series PLC. The analog input/output module DVP06XA-S/DVP06XA-S2 receives external
4-point analog signal input (voltage or current) and converts it into 12-bit digital signals. DVP06XA-S/DVP06XA-S2 receives two
pieces of 12-bit digital data from a PLC, and converts the digital data into 2-point analog signal output (voltage or current). There are
49 CRs (control registers) in the module, and each register has 16 bits. A DVP series slim type PLC can read data from
DVP06XA-S/DVP06XA-S2 or write data to DVP06XA-S/DVP06XA-S2 by means of the instruction FROM/TO.
The user can select voltage or current input by wiring. Range of voltage input: ±10VDC (resolution: 5mV). Range of current input:
±20mA (resolution: 20μA).
The user can also select voltage or current output by wiring. Range of voltage output: 0V ~ +10VDC (resolution: 2.5mV). Range of
current output: 0mA ~ 20mA (resolution: 5μA).

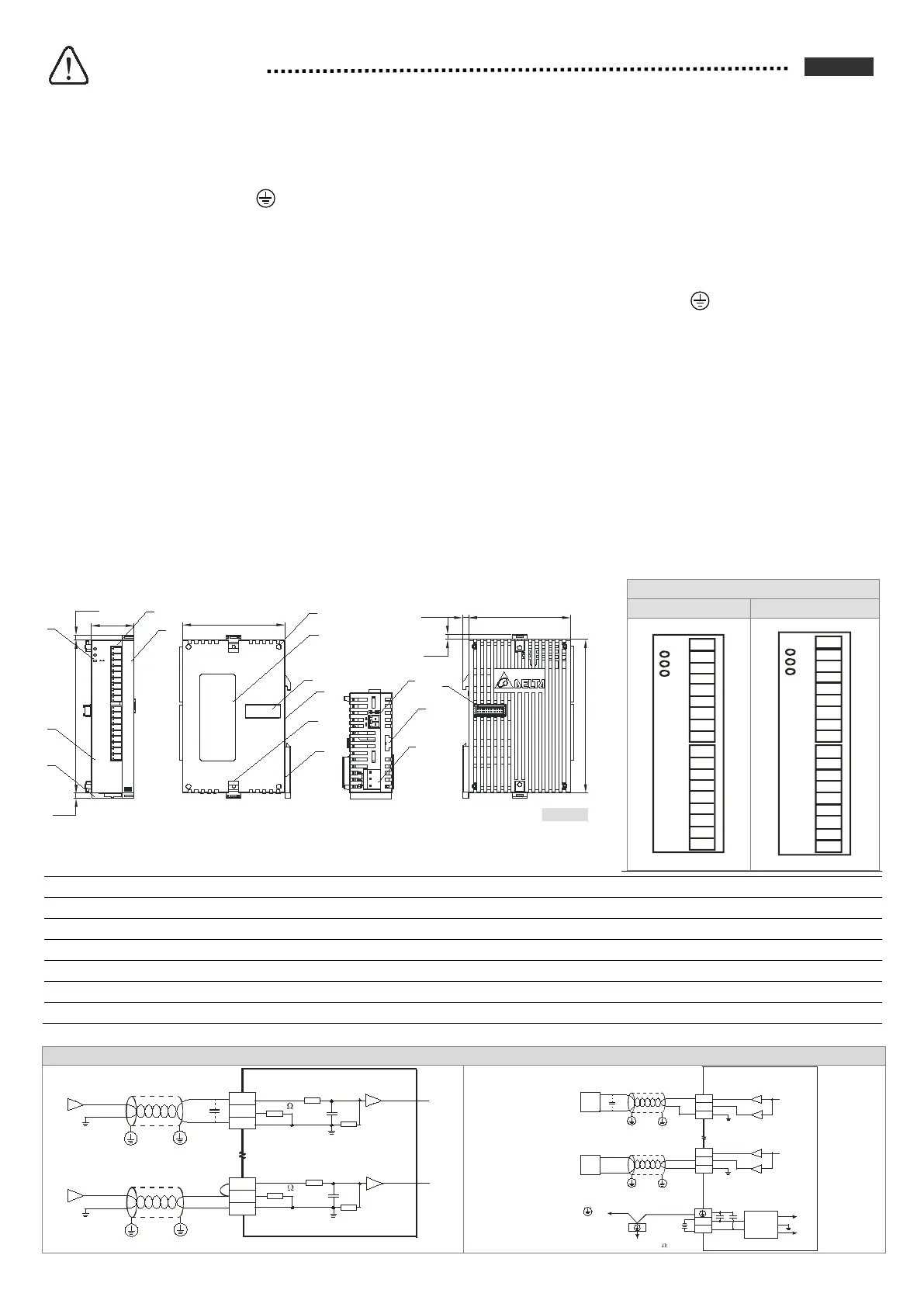

Outline & Arrangement of the Terminals
Figure 1
3.00
3.00
60.00
3.40
60.00
1
2
3
14
4
5
6
8
10
3
7
9
I4 +
V4+
V1+
I1 +
C OM 1
I2 +
V2+
C OM 2
C OM 4
I3 +
V3+
C OM 3
I5 +
V5+
I6 +
V6+
C OM
C OM
DA
ER ROR
POWER
90.00
3.00
25.20
90.00
12
11
13
Unit: mm
Arrangement of the terminals
V+
I+
COM
V+
I+
COM
V+
I+
COM
V+
I+
COM
V+
I+
COM
V+
I+
COM
V1+
I1+
COM1
V2+
I2+
COM2
V3+
I3+
COM3
V4+
I4+
COM4
V5+
I5+
COM
V6+
I6+
COM
1. POWER, RUN and ERROR indicators
10. DIN rail groove (35mm)
11. RS-485 communication port
12. Mounting groove of the extension unit
6. Mounting hole of the extension unit
External Wiring
Voltage input
-10V~+10V
V+
I+
COM
CH1
Current input
-20mA~+20mA
V+
I+
COM
CH4
*3
*2
CH1
104.7K
100K
250
CH4
104.7K
100K
AG
AG
250
Shielded cable*1
Shielded cable*1
V+
I+
COM
CH6
0mA~20mA
CH6
V+
I+
COM
CH5
0V~+10V
*5
CH5
0V
24V
DC24V
+15V
-15V
AG
*6
Shielded cable*4
Current output
AC motor drive, recor der,
proportioni ng val ve...
Shielded cable*4
Voltage output
AC motor drive, recor der,
proportioni ng val ve...
Connected to on
a power supply module
Ground (Impedance: Less than 100 )
DC/DC
converter
System ground
