Delta MultiChoice 13/14 Series Installation Instructions

C.
A.

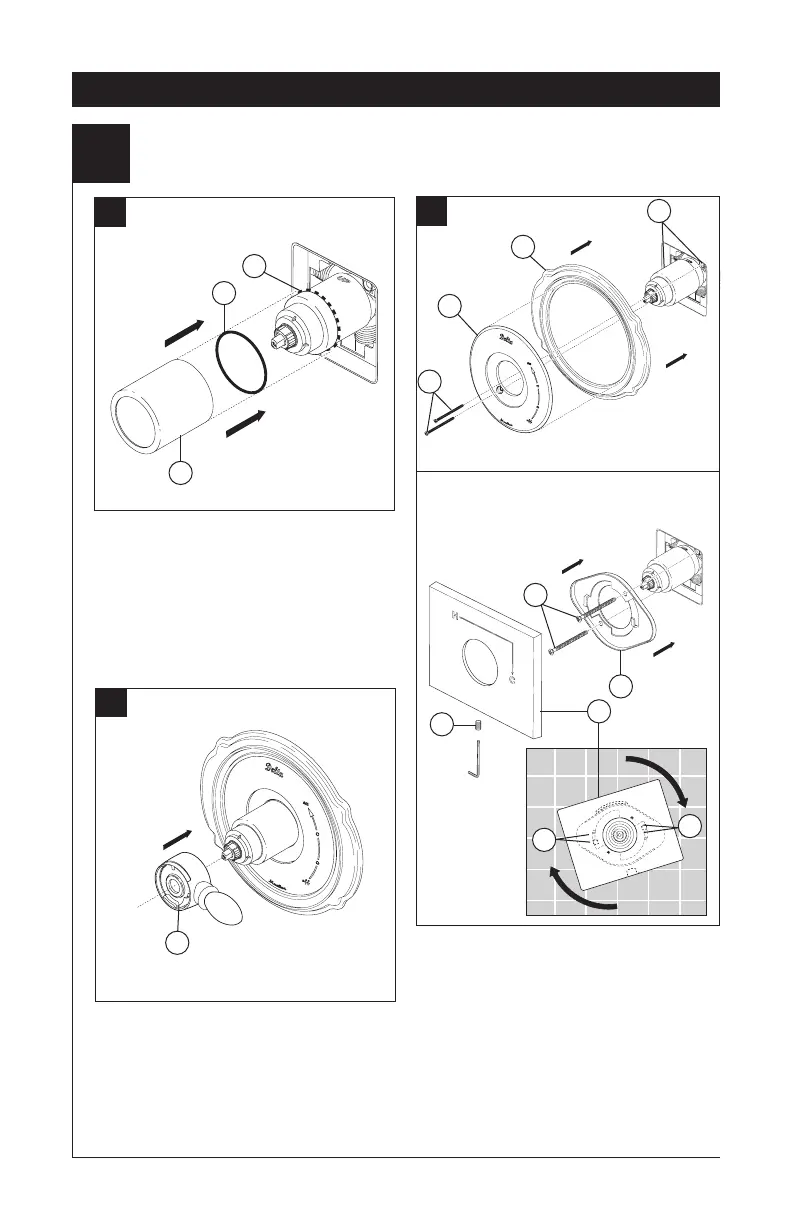

Slide O-ring (1) over cartridge and the
bonnet nut (2). The O-ring, which acts as
a spacer to steady the sleeve, should rest
behind the bonnet nut. Slide the sleeve
(3) over the cartridge, body and O-ring.
Ensure sleeve is properly positioned over
the front of cartridge.
Install volume control handle (1) with lever
to the right, then turn to the on position.
DO NOT SECURE WITH SCREW.
17 Series Installation
3
Trim Installation
3
1
9
B.
Secure the escutcheon (1) and backplate
(2) (if your model has one) to the bracket
(3) using the 2 screws provided (4). Do not
overtighten escutcheon screws.
For models T17053, T17253 & T17453:
Install bracket (5) over the cartridge body
using the 2 screws provided (6). Install
escutcheon (7) by placing it over the
bracket as shown and rotating it to lock
the tabs (8). Secure the escutcheon to the
bracket using set screw (9).
1
2
3
4
Escutcheon Installation for
Models T17053, T17253 & T17453.
5
6
7
8
8
9
1
2

Delta MultiChoice 13/14 Series Specifications

General

Series	MultiChoice 13/14 Series
Valve Type	Pressure Balance
Material	Brass
Connection Size	1/2 inch
Connection Type	NPT
Installation	Wall mount
Handle Style	Lever
ADA Compliant	Yes
Flow Rate	1.75 GPM
Number of Handles	1
Valve Included	Yes
WaterSense Certified	Yes
Hand Shower Included	No
Warranty	Limited Lifetime Warranty
Finish Options	Chrome, Stainless, Venetian Bronze
Cartridge	Pressure Balance Cartridge
