Delta MultiChoice 14 Series Installation Instructions & Owner's Manual

13 / 14 Series Installation
2

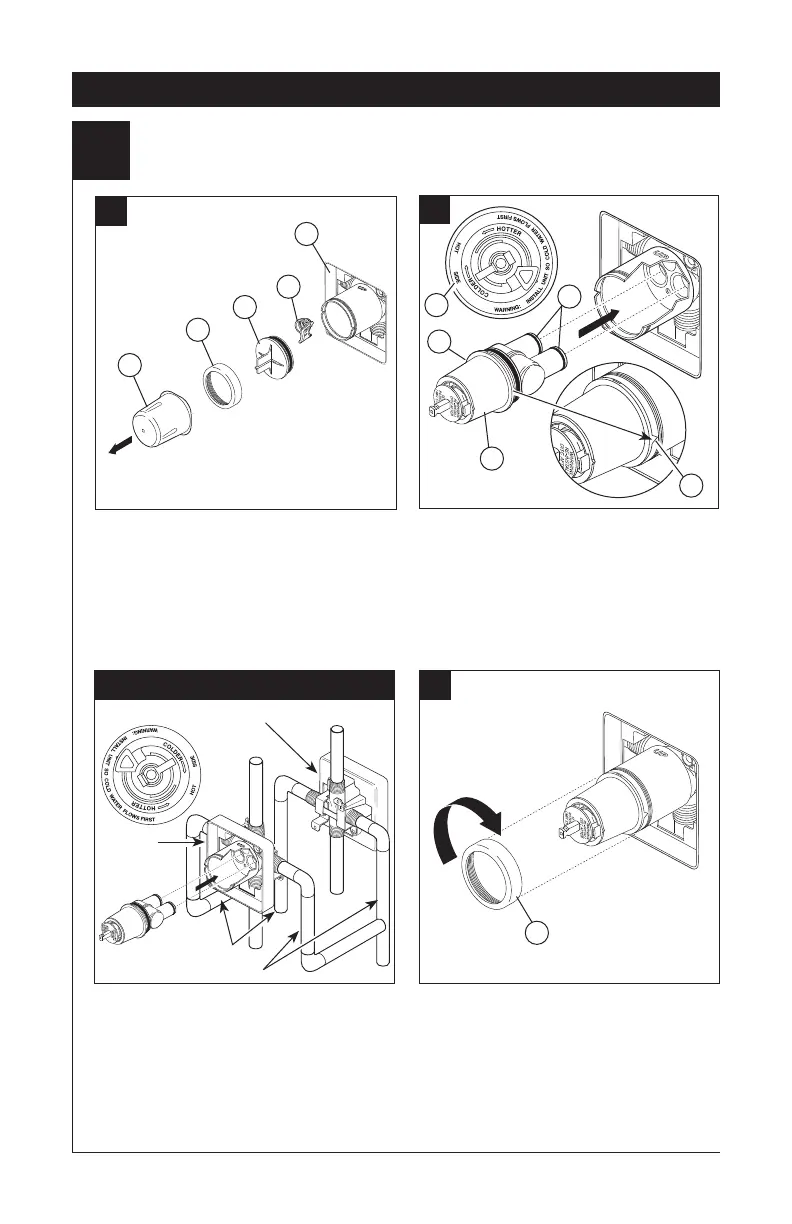

Cartridge Installation
A.
C.
Turn off water supplies. Remove
cover (1), bonnet nut (2) and test cap (3)
from the body. If this is not a thin wall
mounting, the entire plasterguard (4)
may be removed. If screen (5) is in place,
remove before installing cartridge.
For back to back or reverse installations
(hot on right and cold on left) insert the
cartridge with the “hot side” on the right.
If you are not making a reverse or back
to back installation skip this step and
continue with step 1C.
Slide bonnet nut (1) over the cartridge
and thread onto the body. Hand tighten
securely.
B.
Rotate the cartridge (1) so the words
“hot side” (2) appear on the left. Insert
cartridge into valve body as shown. Make
sure the cartridge tubes and O-rings (3)
are properly seated in holes at the base of
the body. Ensure the keys on the body are
fully engaged with the slots in the body (4).
Back to back Installation
Normal Installation (changes not required)
Reverse
Installation
Cold
Hot
1
2
3
1
4
4
2
3
1
6
5
4

Delta MultiChoice 14 Series Specifications

General

Type	Shower Faucet
Valve Type	MultiChoice Universal Valve
Brand	Delta
Series	14 Series
Handle Style	Lever
Number of Handles	1
Spray Patterns	Full Body Spray
Handle Type	Single Handle
WaterSense Certified	Yes
ADA Compliant	Yes
Warranty	Limited Lifetime Warranty
Finish	Chrome
Flow Rate	1.75 GPM
Installation	Wall Mount
Compatibility	Compatible with Delta MultiChoice Universal Valve
