Delta MultiChoice 14 Series Installation Instructions & Owner's Manual

13 / 14 Series Installation
5
Trim Installation
C.
D.
A.
B.

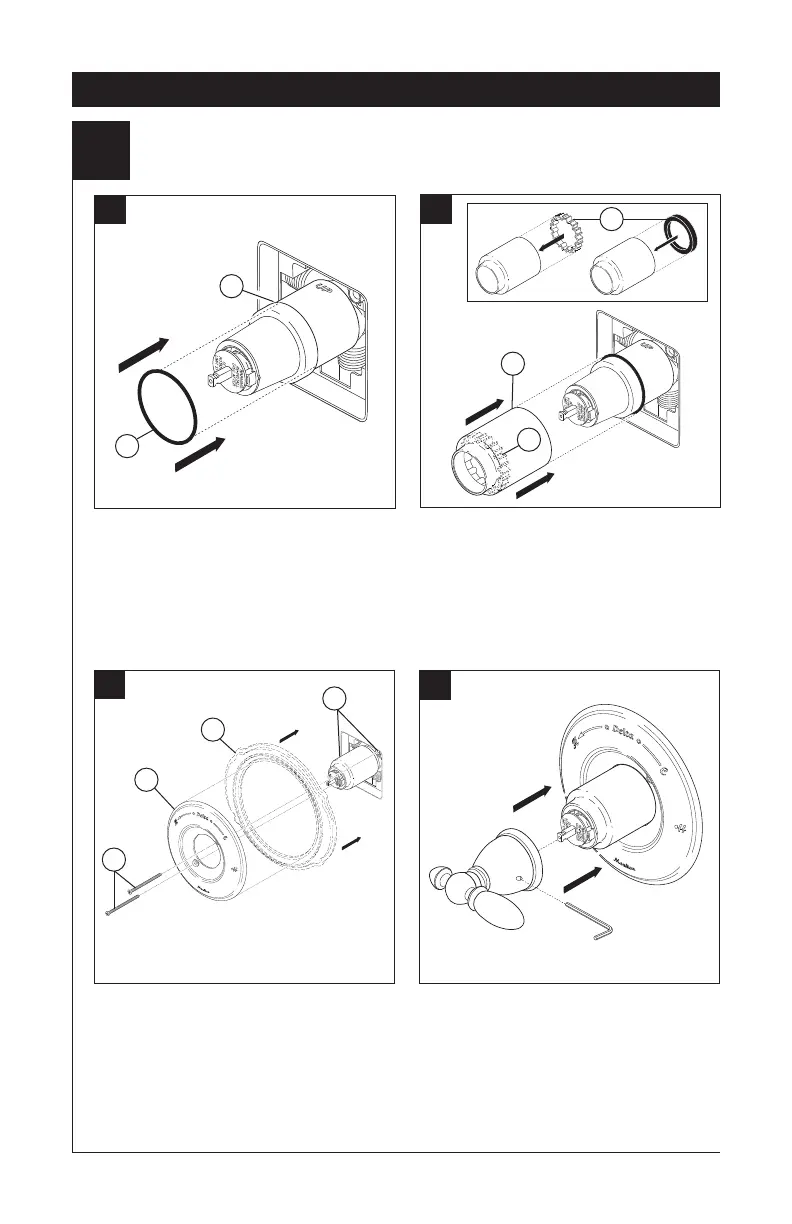

Slide O-ring (1) over cartridge and the
bonnet nut (2). The O-ring, which acts as
a spacer to steady the sleeve, should rest
behind the bonnet nut.
If your model requires a spacer (1), insert
it into the sleeve (2) and push it to the
front. Slide the sleeve over the cartridge,
body and O-ring.
Secure the escutcheon (1) and backplate
(2) (if your model has one) to the bracket
(3) using the 2 screws provided (4). Do not
overtighten escutcheon screws.
Using an Allen wrench to secure the set
screw, install the handle onto the stem.
1
2
1
2
1
1
2
3
4
9

Delta MultiChoice 14 Series Specifications

General

Type	Shower Faucet
Valve Type	MultiChoice Universal Valve
Brand	Delta
Series	14 Series
Handle Style	Lever
Number of Handles	1
Spray Patterns	Full Body Spray
Handle Type	Single Handle
WaterSense Certified	Yes
ADA Compliant	Yes
Warranty	Limited Lifetime Warranty
Finish	Chrome
Flow Rate	1.75 GPM
Installation	Wall Mount
Compatibility	Compatible with Delta MultiChoice Universal Valve
