Trim Installation
A.
B.
Escutcheon Installation for
Models T14053, T14253, T14453,
T14067, T14267 & T14467.

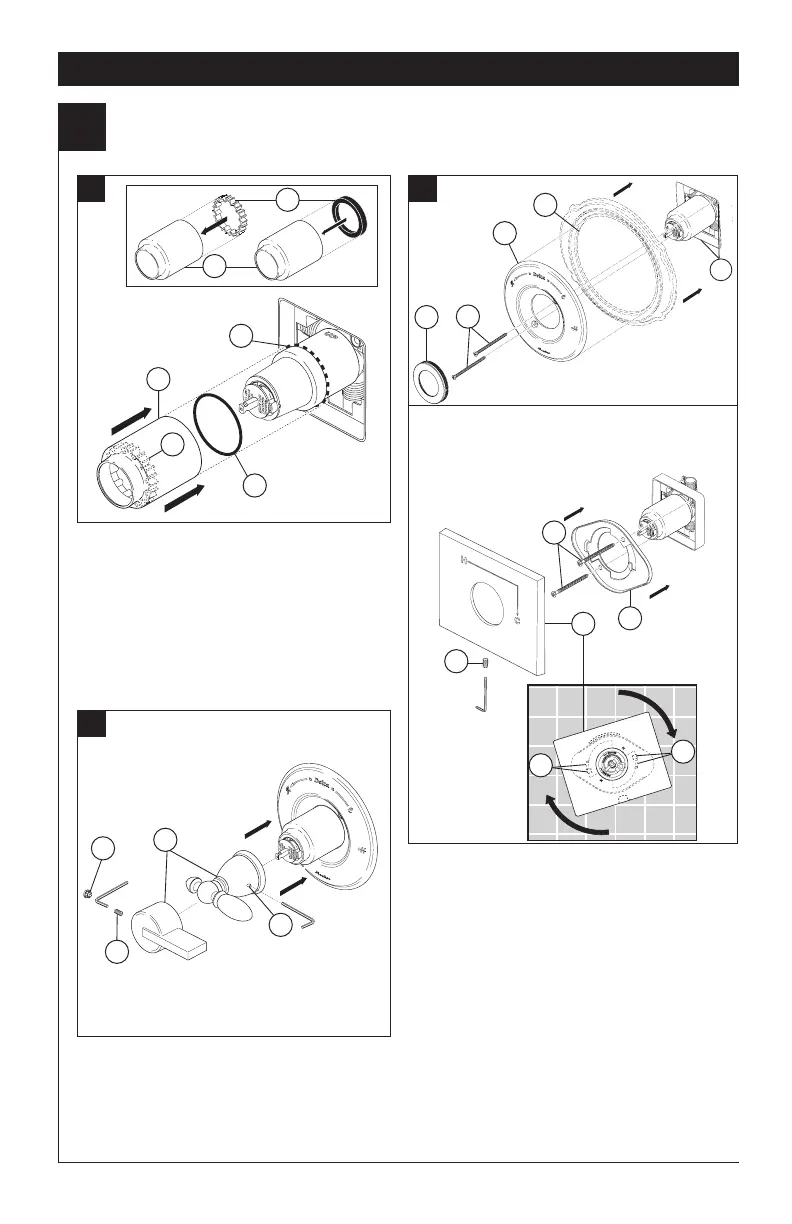

Slide O-ring (1) over cartridge and the
bonnet nut (2). The O-ring, which acts as
a spacer to steady the sleeve, should rest
behind the bonnet nut.
If your model requires a spacer (3), insert
it into the sleeve (4) and push it to the
front. Slide the sleeve over the cartridge,
body and O-ring.
Using an Allen wrench to secure the set
screw (1), install the handle (2) onto the
stem. Insert plug button (3) (if your model
has one) into set screw hole.
Secure the escutcheon (1) and backplate (2)
(if your model has one) to the bracket (3) using
the 2 screws provided (4). Do not overtighten
escutcheon screws.
If you are installing the
Cassidy models T14097, T14297 & T14497:
Thread the cover (5) onto the escutcheon (1).
For models T14053, T14253, T14453, T14067,
T14267 & T14467:
Install bracket (5) over the cartridge body using
the 2 screws provided (6). Install escutcheon (7)
by placing it over the bracket as shown and
rotating it to lock the tabs (8). Secure the
escutcheon to the bracket using set screw (9).
C.
3
8
1
1
1
2
3
3
4
2
4
3
2
1
4
5
6
7
5
9
8
8
