Delta MultiChoice 17T Series Installation Instructions

B.
1
4
4
2
3
17T Series Installation
1

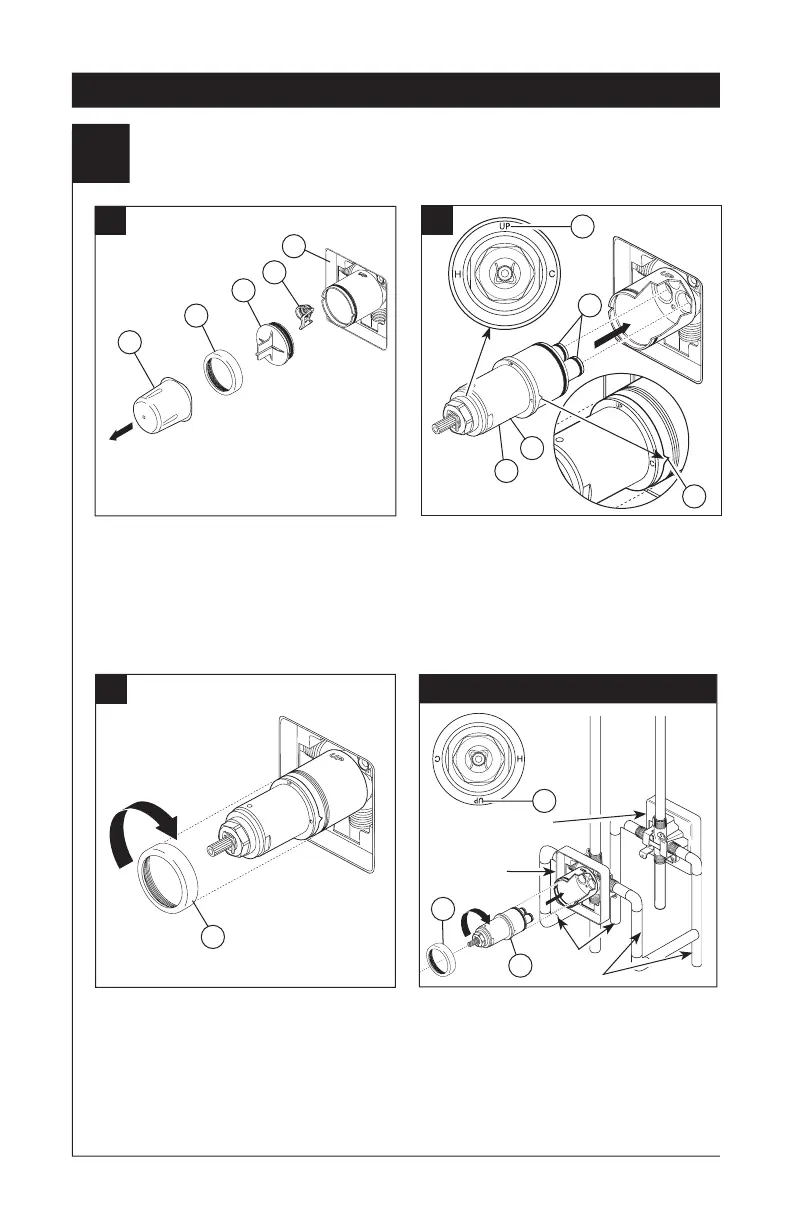

Cartridge Installation
A.
Turn off water supplies. Remove
cover (1), bonnet nut (2) and test cap (3)
from the body. If this is not a thin wall
mounting, the entire plasterguard (4)
may be removed. If screen (5) is in place,
remove before installing cartridge.
1
2
3
11
4
Rotate the cartridge (1) so the word
“UP” (2) appears on the top. Insert
cartridge into valve body as shown. Make
sure the cartridge tubes and O-rings (3)
are properly seated in holes at the base of
the body. Ensure the keys on the body are
fully engaged with the slots in the body (4).
For back to back or reverse installations
(hot on right and cold on left): Rotate
cartridge (1) so the word “UP” (2) appears
on the bottom. Install the cartridge making
sure that the keys are fully engaged with the
slot in the brass body (see step B). Slide
bonnet nut (3) over the cartridge and thread
onto the body. Hand tighten securely.
Back to back Installation
Normal Installation
(changes not required)
Reverse
Installation
Cold
Hot
1
3
2
C.
Slide bonnet nut (1) over the cartridge
and thread onto the body. Hand tighten
securely.
1
5
