Delta MultiChoice 17T Series Installation Instructions

C.
D.
A.
B.

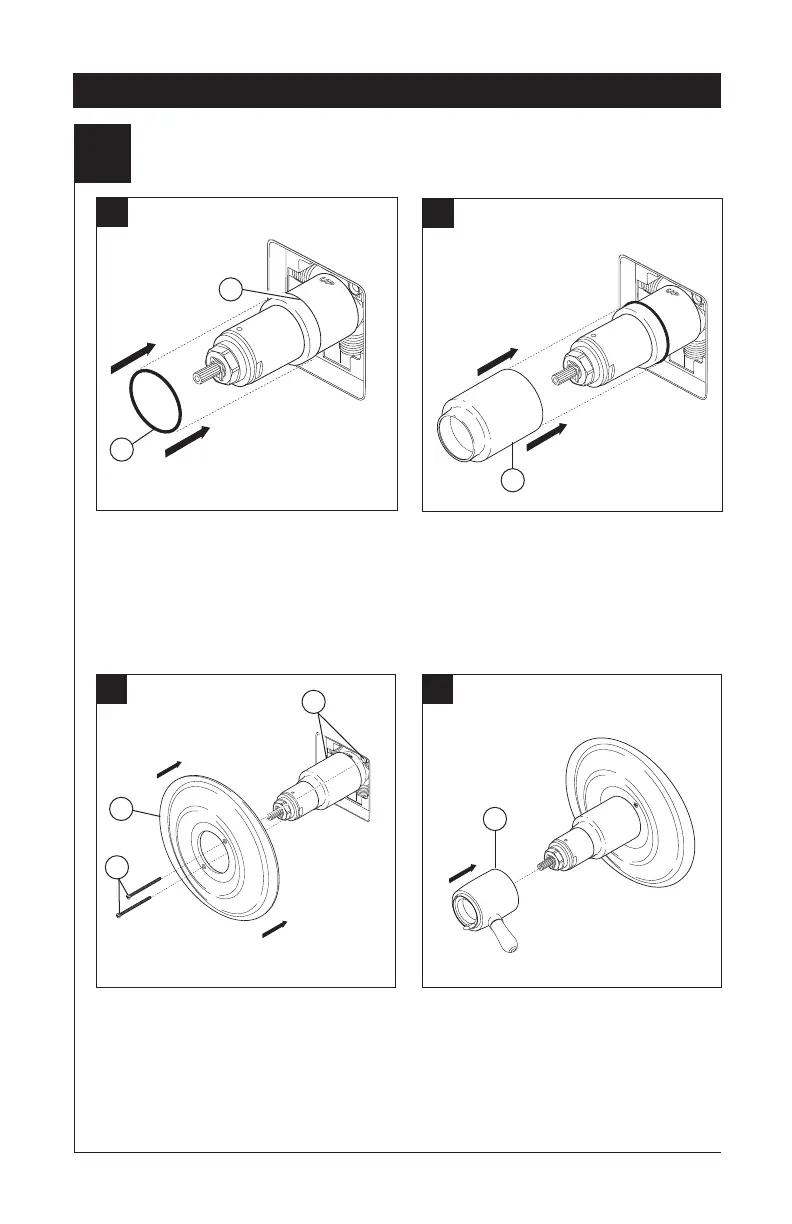

Slide O-ring (1) over cartridge and the
bonnet nut (2). The O-ring, which acts as
a spacer to steady the sleeve, should rest
behind the bonnet nut.
Slide the sleeve (1) over the cartridge,
body and O-ring. Ensure sleeve is properly
positioned over the front of cartridge.
Secure the escutcheon (1) to the bracket
(2) with the 2 screws provided (3).
Do not overtighten escutcheon screws.
Install volume control handle (1) with
lever to the right. DO NOT SECURE
WITH SCREW.
3
Valve Trim Installation
1
2
1
1
2
1
3
17T Series Installation
13
